13-4
FRONT WHEEL/BRAKE/SUSPENSION/STEERING

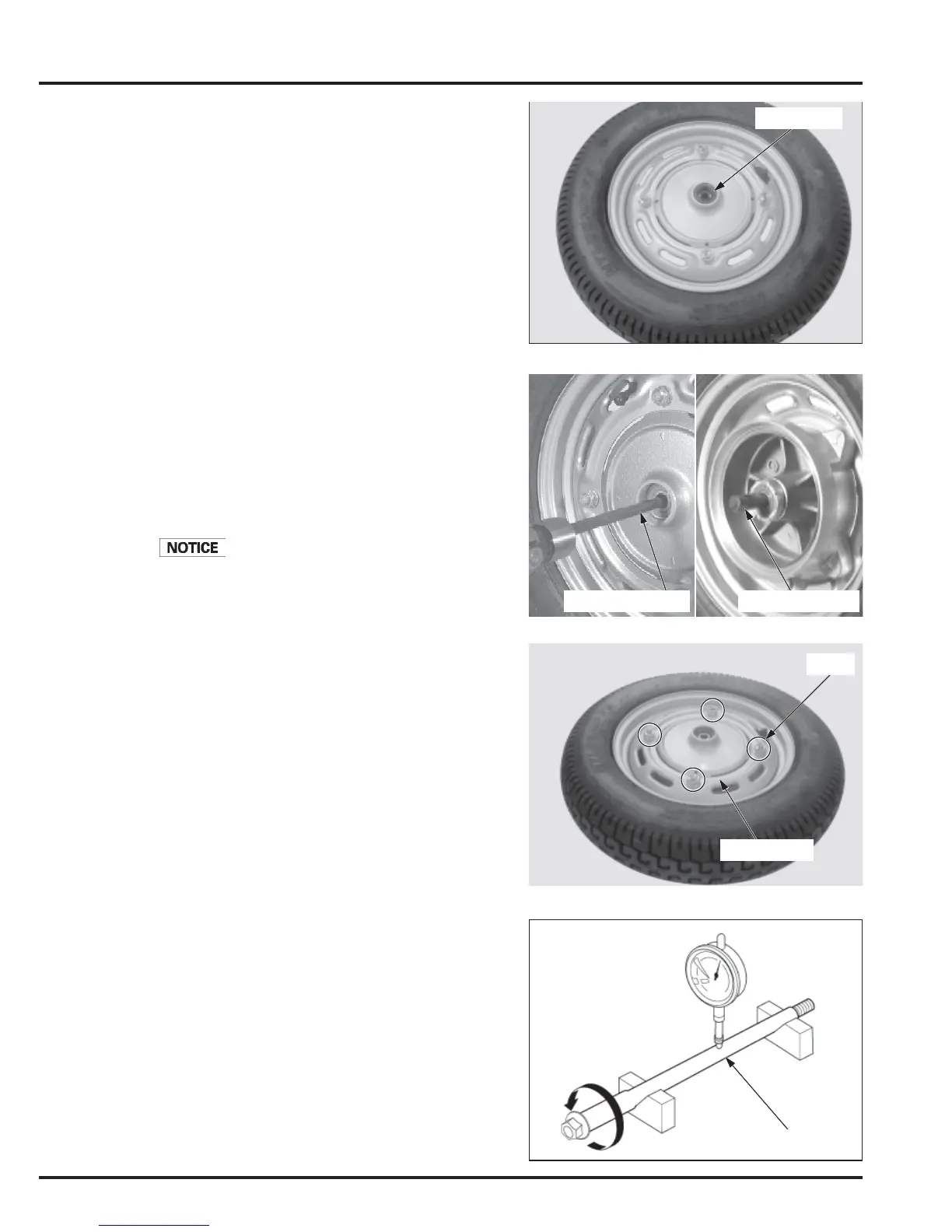

DUST SEAL
Remove the dust seal from the right side of wheel.
Insert the bearing remover head into the bearing.
From the opposite side install the bearing remover shaft
and drive the bearing out of the wheel.
Remove the distance collar and drive out the other
bearing.
TOOLS:
Bearing remover head, 12 mm 070GD – 005-I130
Bearing remover shaft 070GD – 005-I100
Replace the wheel bearings in pairs.
Remove the nuts (4 nos.) and wheel hub.
INSPECTION
FRONT AXLE
Set the front axle in V-blocks and measure the runout
using a dial indicator.
Actual runout is 1/2 the total indicator reading.
SERVICE LIMIT: 0.20 mm (0.008 in)
AXLE BOLT
REMOVER HEADREMOVER SHAFT
NUTS
WHEEL HUB
