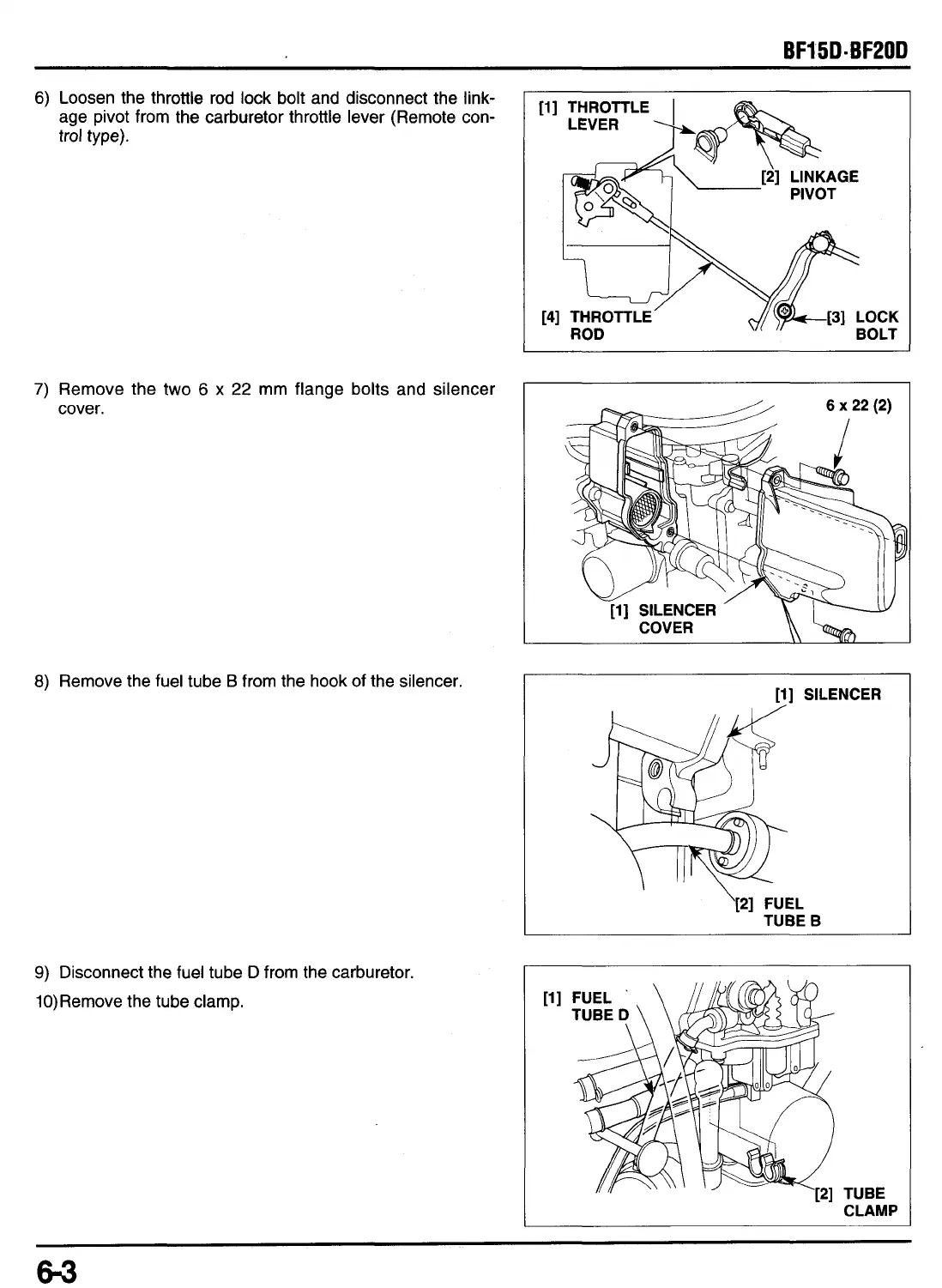

6) Loosen the throttle rod lock bolt and disconnect the link-
age pivot from the carburetor throttle lever (Remote con-
trol type).
7) Remove the two 6 x 22 mm flange bolts and silencer
cover.
8) Remove the fuel tube B from the hook of the silencer.
9) Disconnect the fuel tube D from the carburetor.
10)Remove the tube clamp.
[l] THROTTL
LEVER
-
\ [2] LINKAGE
PIVOT
-
(
ROD
[l] SILENCER
“21 FUEL
TUBE B
TUBE
CLAMP
