BF15D BFPOD

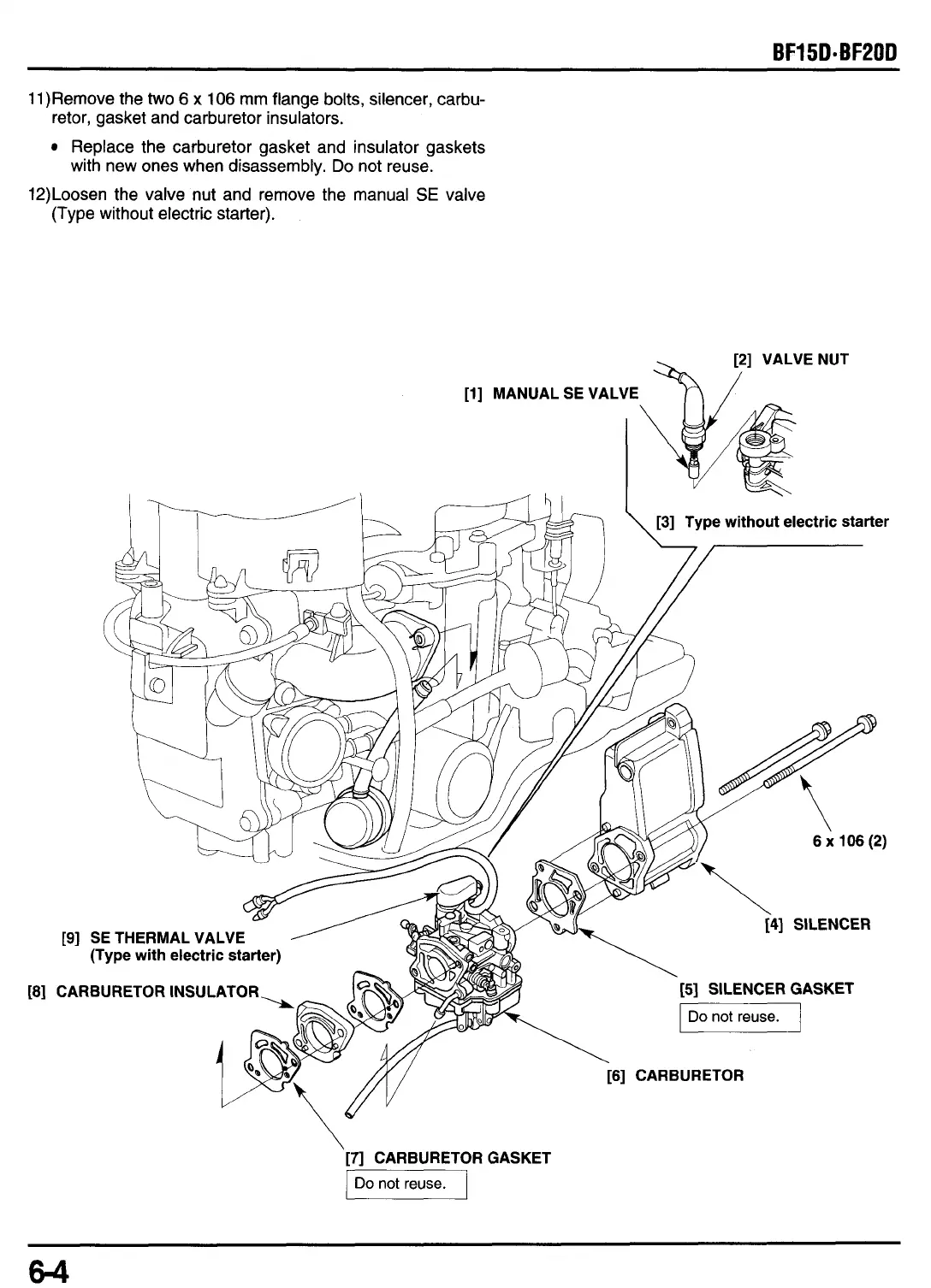

11)Remove the
two
6
x
106 mm flange bolts, silencer, carbu-
retor, gasket and carburetor insulators.
Replace the carburetor gasket and insulator gaskets
with new ones when disassembly.
Do
not reuse.
12)Loosen the valve nut and remove the manual
SE
valve
(Type without electric starter).
[l]
MANUAL SE VALVE
[3]
Type without electric starter
[5] SILENCER GASKET
[9] SE THERMAL VALVE
(Type with electric starter)
CARBURETOR INSULATOR
\i
61
CARBURETOR
[7]
CARBURETOR GASKET
6-4
To Next Page
