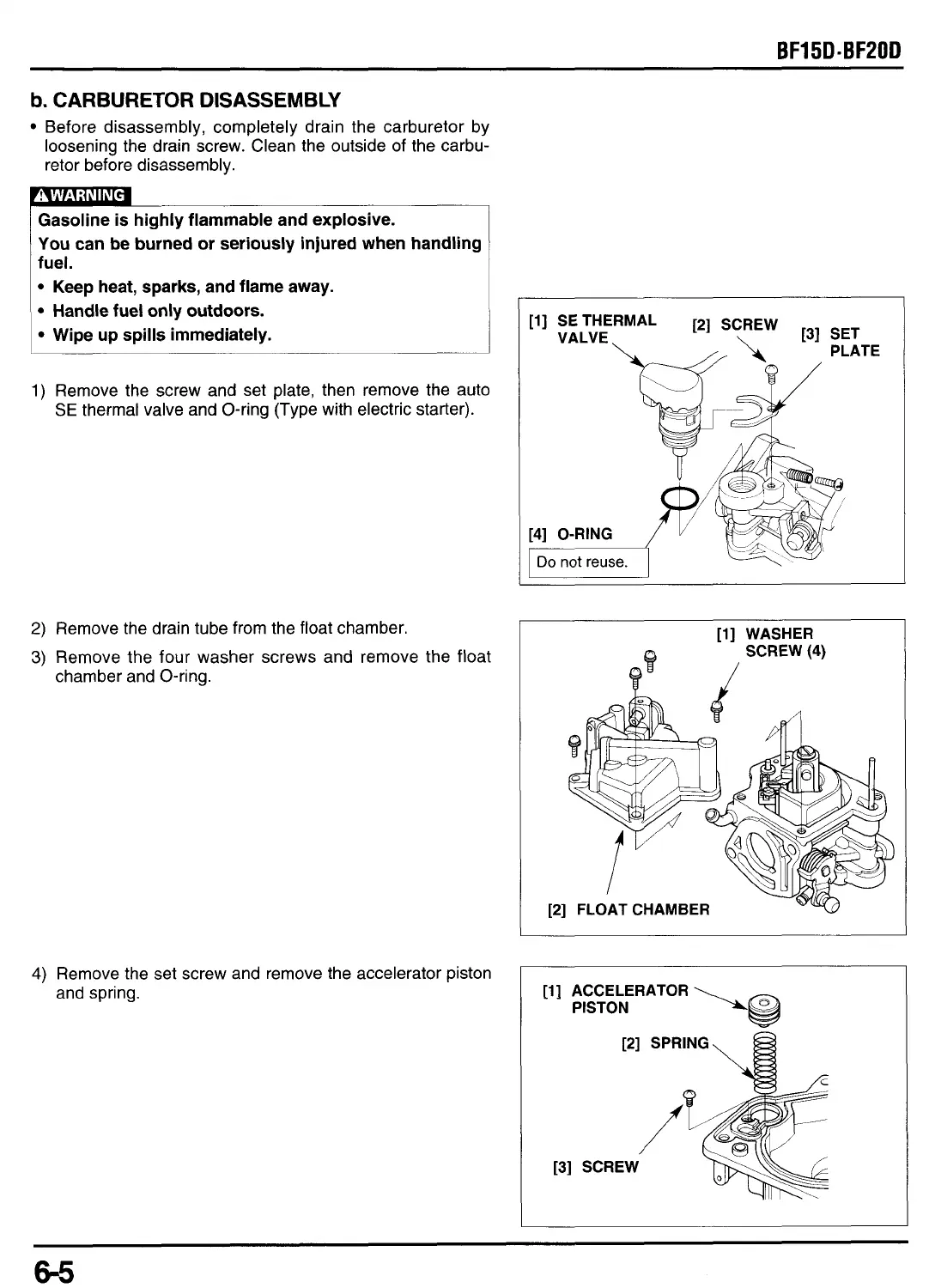

b. CARBURETOR DISASSEMBLY
Before disassembly, completely drain the carburetor by
loosening the drain screw. Clean the outside of the carbu-
retor before disassembly.
Gasoline is highly flammable and explosive.
You
can be burned or seriously injured when handling
fuel.
Keep heat, sparks, and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
1)
Remove the screw and set plate, then remove the auto
SE
thermal valve and O-ring (Type with electric starter).
2)
Remove the drain tube from the float chamber.
3)
Remove the
four
washer screws and remove the float
chamber and O-ring.
4)
Remove the set screw and remove the accelerator piston
and spring.
K1]
SETHERMAL
[2]
SCREW
[31
SET
[l] WASHER
SCREW(4)
9
/
\
[l]
ACCELERATOR
PISTON
6-5
