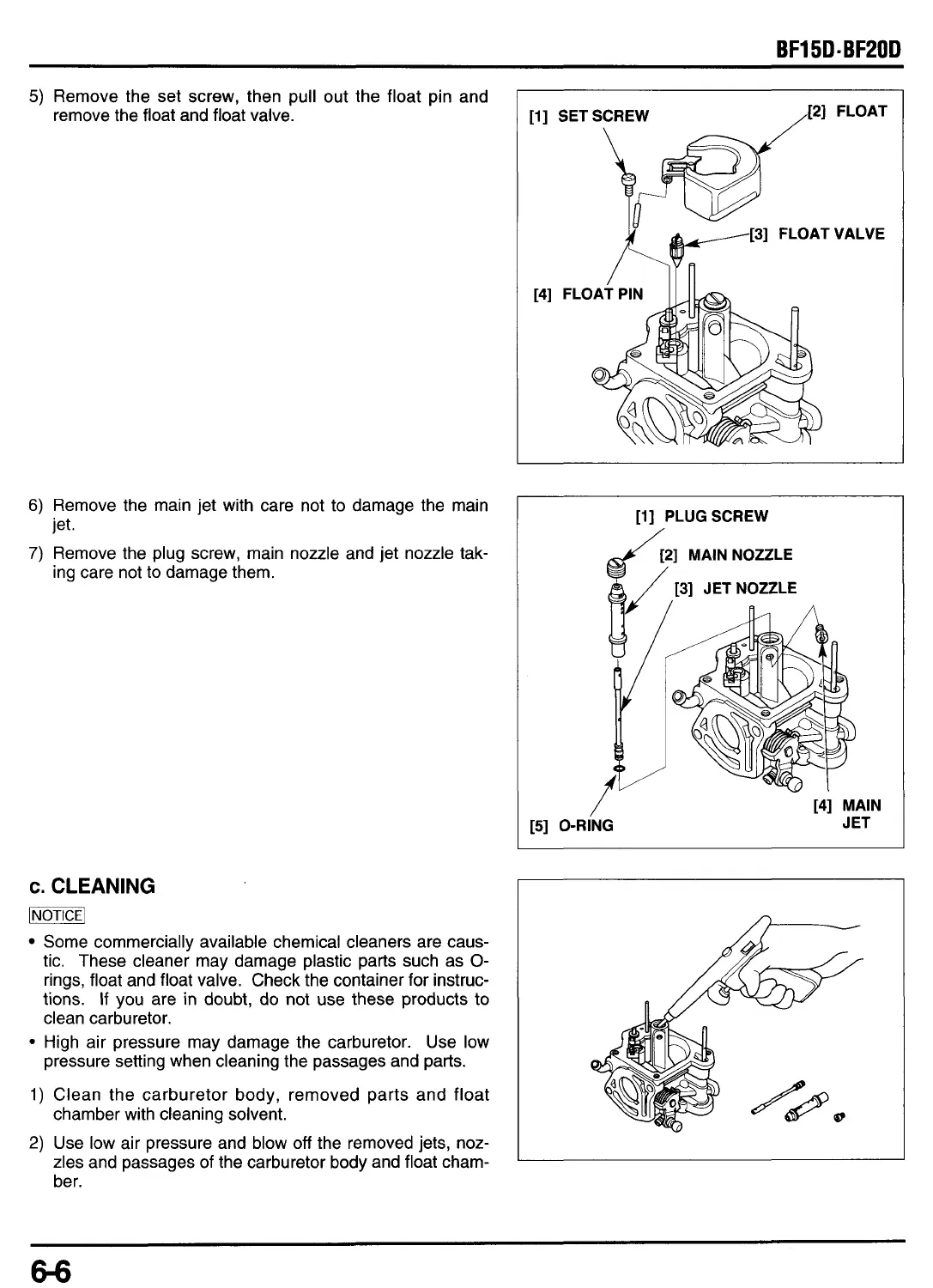

5)
Remove the set screw, then pull out the float pin and
remove the float and float valve.
6)
Remove the main jet with care not to damage the main
7)
Remove the plug screw, main nozzle and jet nozzle tak-
jet.
ing care not to damage them.
c.
CLEANING
piGTiCF
Some commercially available chemical cleaners are caus-
tic. These cleaner may damage plastic parts such as
0-
rings, float and float valve. Check the container for instruc-
tions.
If
you are in doubt, do not use these products
to
clean carburetor.
.
High air pressure may damage the carburetor. Use
low
pressure setting when cleaning the passages and parts.
1)
Clean the carburetor body, removed parts and float
chamber with cleaning solvent.
2)
Use low air pressure and blow
off
the removed jets, noz-
zles and passages of the carburetor body and float cham-
ber.
[2]
FLOAT
1
[l]
SETSCREW
/
[i]
PLUG
SCREW
21
MAIN NOZZLE
I
[5]
O-RING
[4]
MAIN
JET
