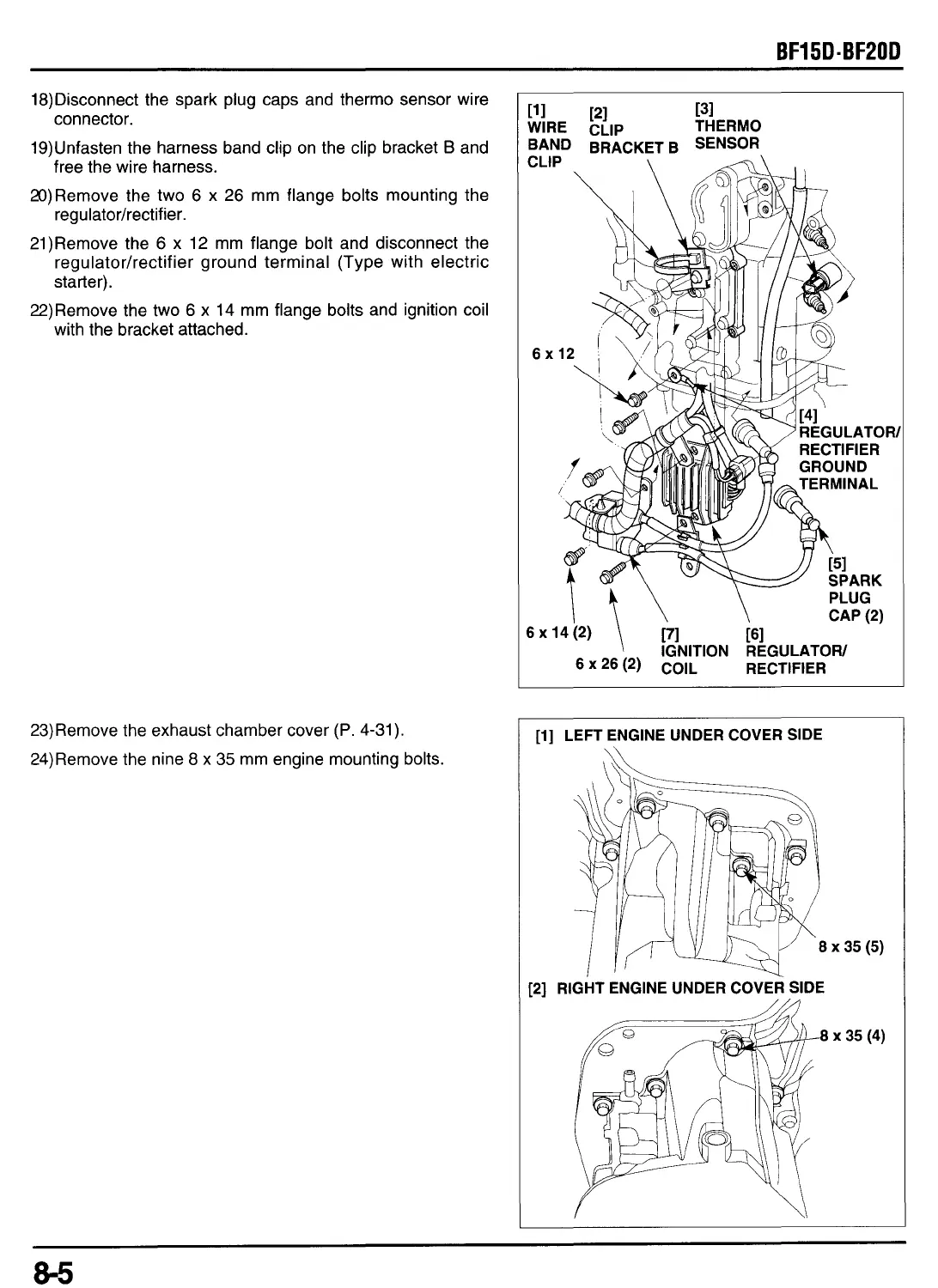

BF15D-BF20D
18)Disconnect the spark plug caps and thermo sensor wire
connector.
19)Unfasten the harness band clip on the clip bracket
B
and
free the wire harness.
20)Remove the two
6
x
26
mm flange bolts mounting the
regulatorhectifier.
21)Remove the 6
x
12 mm flange bolt and disconnect the
regulatorhectifier ground terminal (Type with electric
starter).
22)Remove the two
6
x
14 mm flange bolts and ignition coil
with the bracket attached.
23)Remove the exhaust chamber cover
(P.
4-31).
24)Remove the nine
8
x
35 mm engine mounting bolts.
6x
PLUG
CAP
(2)
6
x
14
(2)
IGNITION REGULATOR/
6x26(2) COIL RECTIFIER
[l]
LEFT ENGINE UNDER COVER SIDE
\\
[2] RIGHT ENGINE UNDER COVER SIDE
..
8
x
35
(4)
