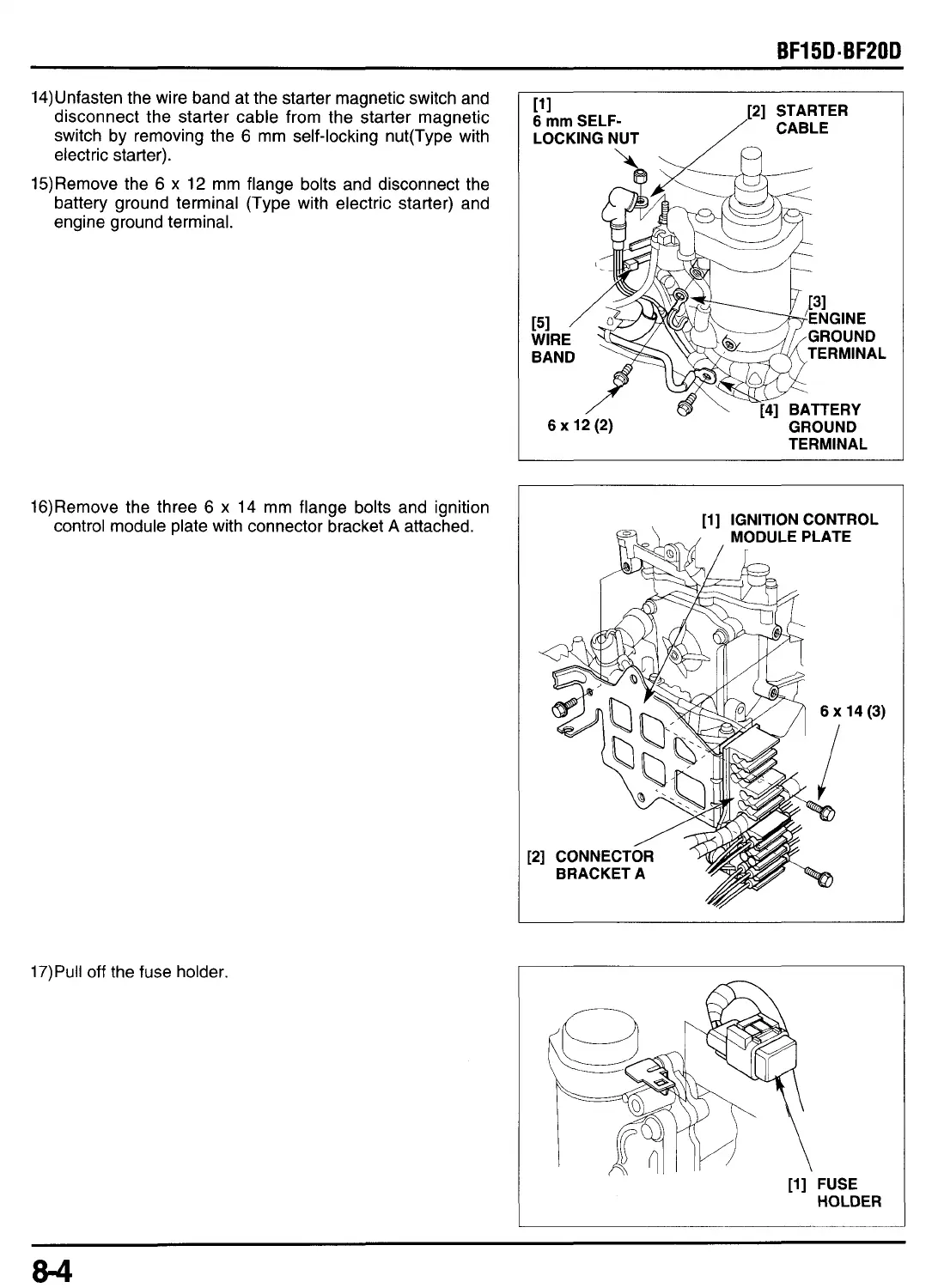

14)Unfasten the wire band at the starter magnetic switch and
disconnect the starter cable from the starter magnetic
switch by removing the 6 mm self-locking nut(Type with
electric starter).
15)Remove the 6
x
12 mm flange bolts and disconnect the
battery ground terminal (Type with electric starter) and
engine ground terminal.
the three 6
x
14 mm flanne b
16)R
mov Its and ignition
control module plate with connector 6racket
A
attached.
17)Pull
off
the fuse holder.
r11
6
mm
SELF-
LOCKING NUT
6
x
12
(2)
.-
GROUND
TERMINAL
[l] FUSE
HOLDER
8-4
