BFlSD-BFPOD
3)

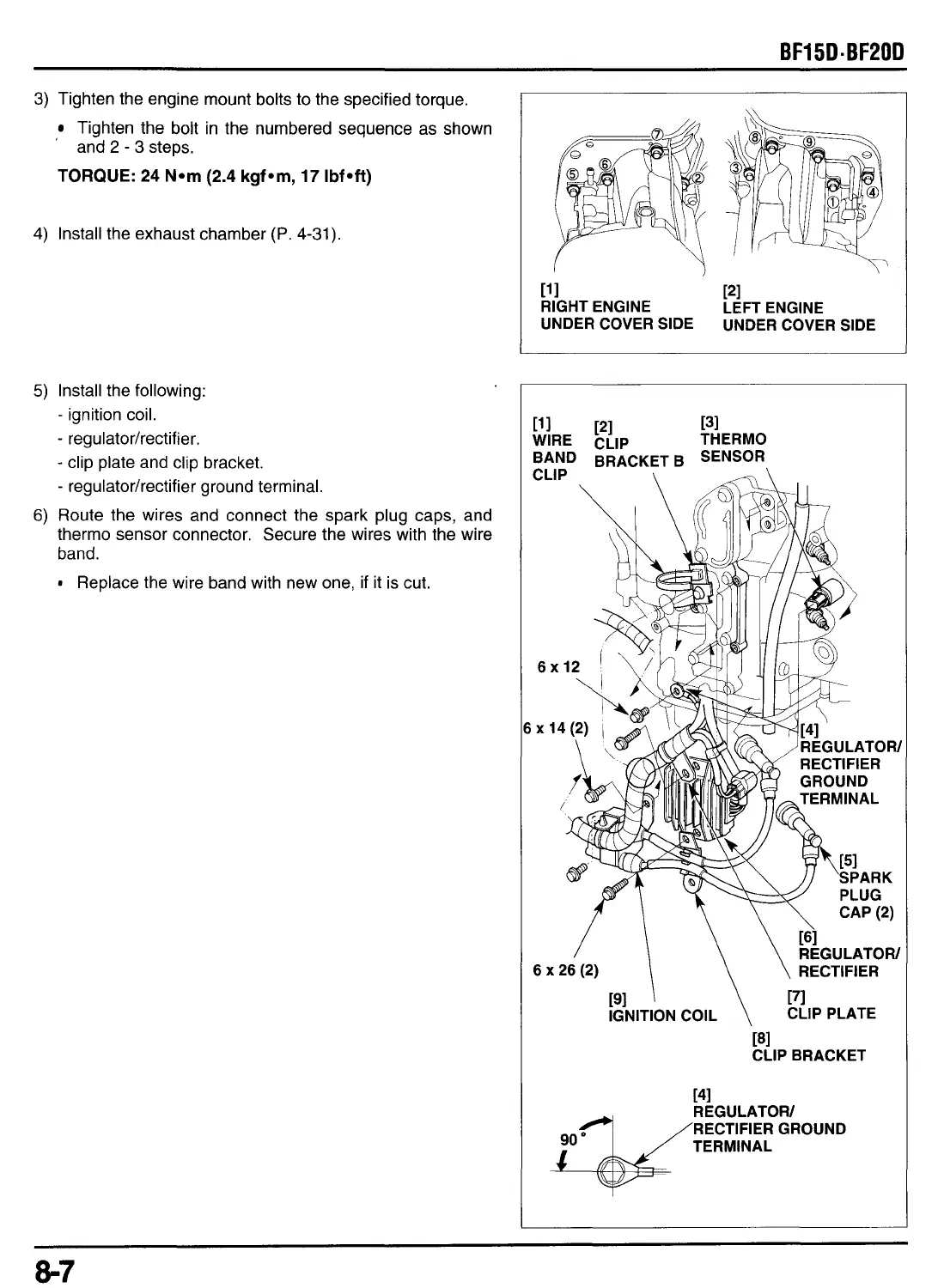

Tighten the engine mount bolts to the specified torque.
Tighten the bolt in the numbered sequence as shown
'
and
2
-
3
steps.
TORQUE:
24
N*m
(2.4
kgf*m,
17
Ibf*ft)
4)
Install the exhaust chamber
(P.
4-31).
5)
Install the following:
-
ignition coil.
-
regulatorhectifier.
-
clip plate and clip bracket.
-
regulatorhectifier ground terminal.
6)
Route the wires and connect the spark plug caps, and
thermo sensor connector. Secure the wires with the wire
band.
Replace the wire band with new one, if it is cut.
11
1
121
RIGHT ENGINE LEFT ENGINE
UNDER COVER SIDE
UNDER COVER SIDE
6x26(2)
1
\
\
RECTIFIER
\
171
CLIP PLATE
191
IGNITION COIL
181
CLIP BRACKET
141
REGULATOR/
RECTIFIER GROUND
TERMINAL
To Next Page
