BF15DUBF20D
7)

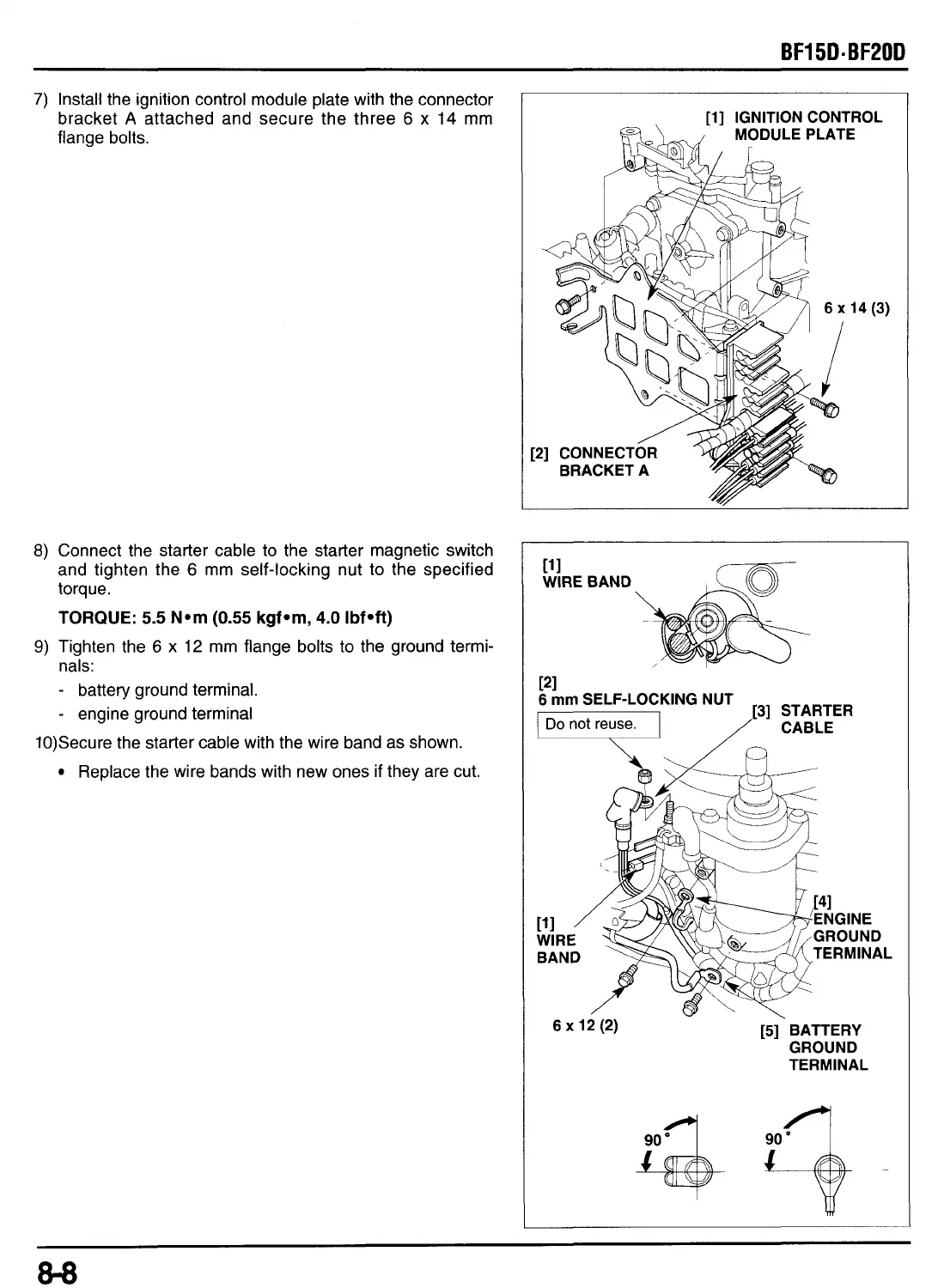

Install the ignition control module plate with the connector
bracket
A
attached and secure the three 6
x
14
mm
flange bolts.
8)
Connect the starter cable to the starter magnetic switch
and tighten the 6 mm self-locking nut to the specified
torque.
TORQUE:
5.5
N*m
(0.55
kgfom,
4.0
Ibf*ft)
nals:
-
battery ground terminal.
-
engine ground terminal
9)
Tighten the 6
x
12
mm flange bolts to the ground termi-
10)Secure the starter cable with the wire band as shown.
Replace the wire bands with new ones if they are cut.
[21
[3]
STARTER
S
mm
SELF-LOCKING
NUT
/
CABLE
6
x
12
(2)
[5]
BATTERY
GROUND
TERMINAL
To Next Page
