BF15DmBF20D

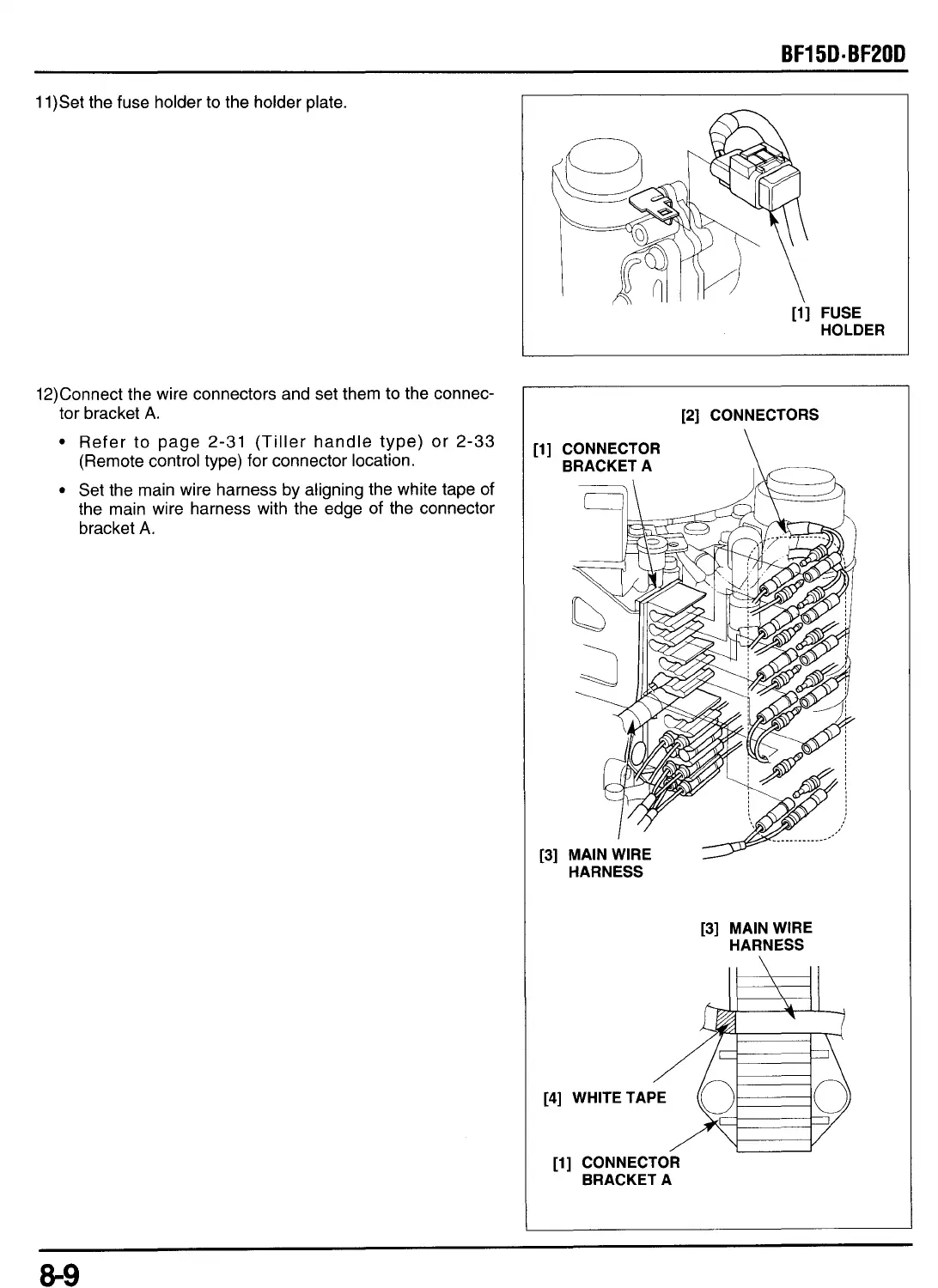

11)Set the fuse holder to the holder plate.
12)Connect the wire connectors and set them to the connec-
tor bracket
A.
Refer
to
page 2-31 (Tiller handle type) or 2-33
(Remote control type) for connector location.
Set the main wire harness by aligning the white tape of
the main wire harness with the edge of the connector
bracket
A.
[l] FUSE
HOLDER
[2] CONNECTORS
[l] CONNECTOR
BRACKET A
\-
HARNESS
[31
[3] MAIN WIRE
HARNESS
[4] WHITETA
[l] CONNECTOR
BRACKET A
To Next Page
