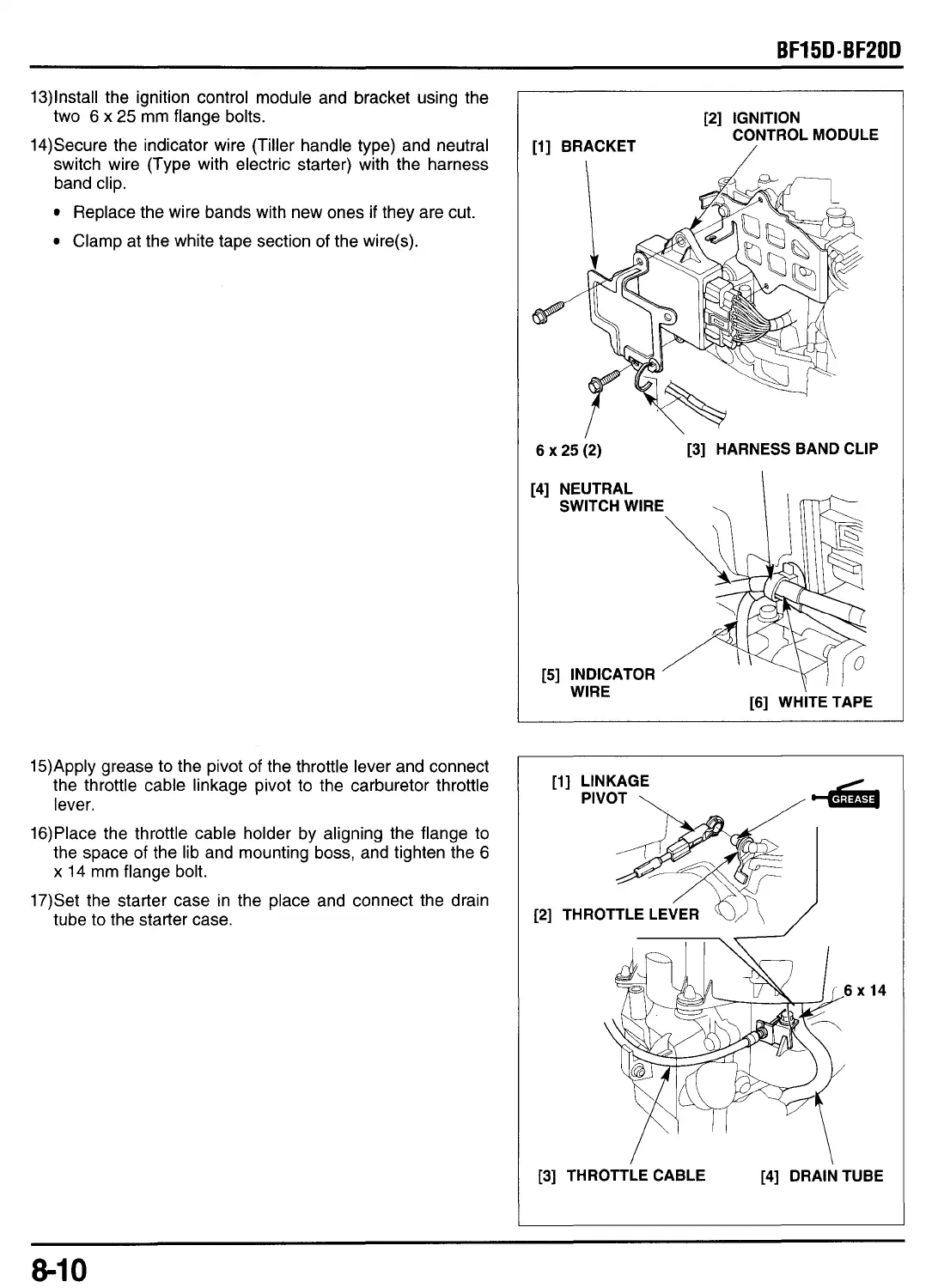

13)lnstall the ignition control module and bracket using the
two 6
x
25
mm flange bolts.
14)Secure the indicator wire (Tiller handle type) and neutral
switch wire (Type with electric starter) with the harness
band clip.
Replace the wire bands with new ones
if
they are cut.
Clamp at the white tape section of the wire(s).
15)Apply grease to the pivot of the throttle lever and connect
the throttle cable linkage pivot to the carburetor throttle
lever.
16)Place the throttle cable holder by aligning the flange to
the space
of
the lib and mounting boss, and tighten the 6
x
14
mm
flange bolt.
17)Set the starter case in the place and connect the drain
tube to the starter case.
[2]
IGNITION
CONTROL MODULE
[l]
BRACKET
/
6
x
25 (2)
[4]
NEUTRAL
[3]
HARNESS BAND CLIP
SWITCH WIRE
y
II
[S]
INDICATOR
[6]
WHITE TAPE
WIRE
[l]
LINKAGE
PIVOT
\
[2]
THROTTLE LE
[3]
THROTTLE CABLE
[4]
DRAIN TUBE
