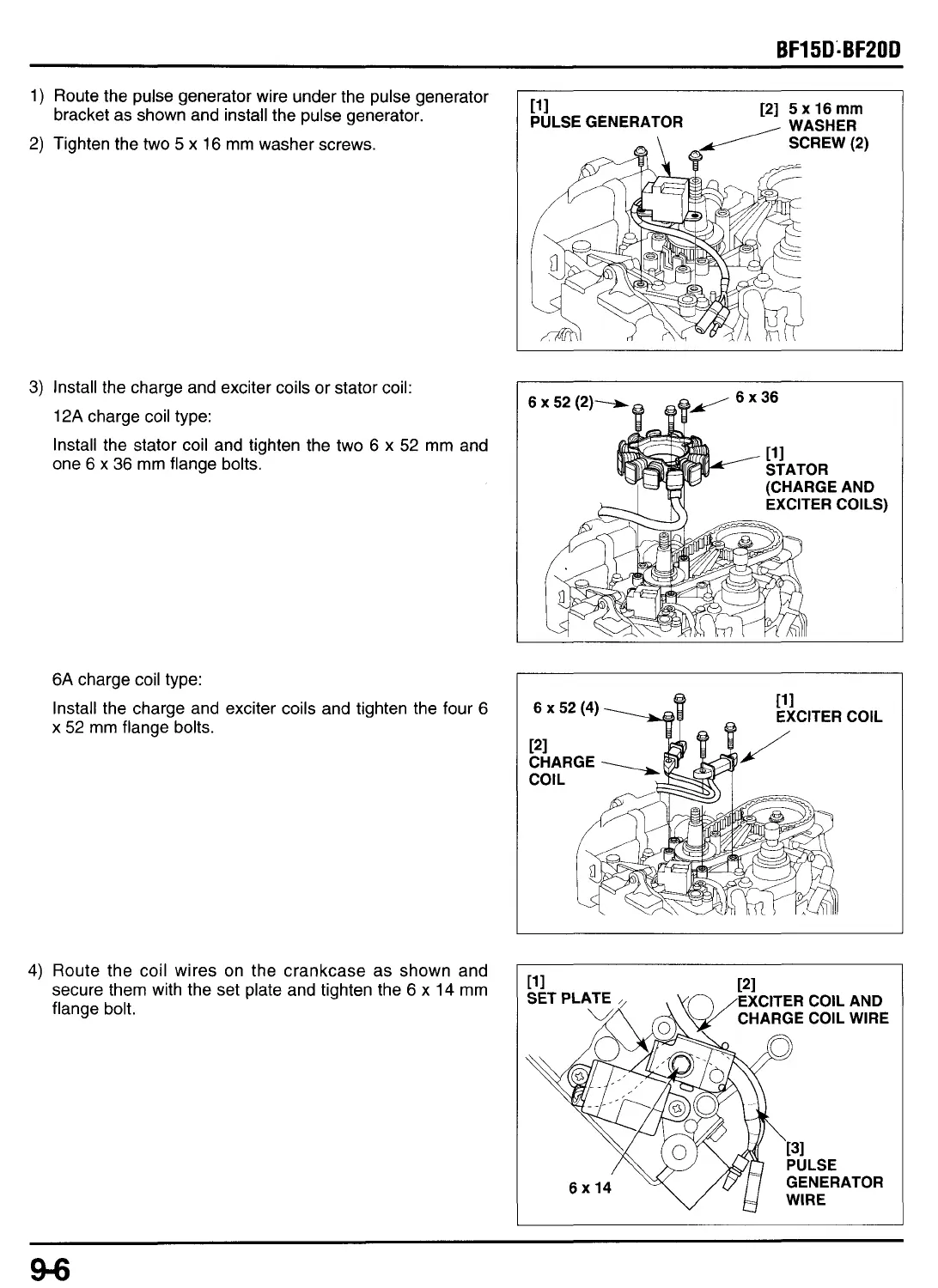

BF15DLBF20D
1)
Route the pulse generator wire under the pulse generator
2)
Tighten the two
5
x 16 mm washer screws.
bracket as shown and install the pulse generator.
3) Install the charge and exciter coils or stator coil:
12A
charge coil type:
Install the stator coil and tighten the two 6 x
52
mm and
one 6
x
36 mm flange
bolts.
6A charge coil type:
Install the charge and exciter coils and tighten the four 6
x
52
mm flange
bolts.
4)
Route the coil wires on the crankcase as shown and
secure them with the set plate and tighten the 6 x
14
mm
flange
bolt.
1
[I1
PULSE GENERATOR
[2]
5xl6mm
,
WASHER
EXCITER COIL
TOR
