BF15DmBF20D
5)

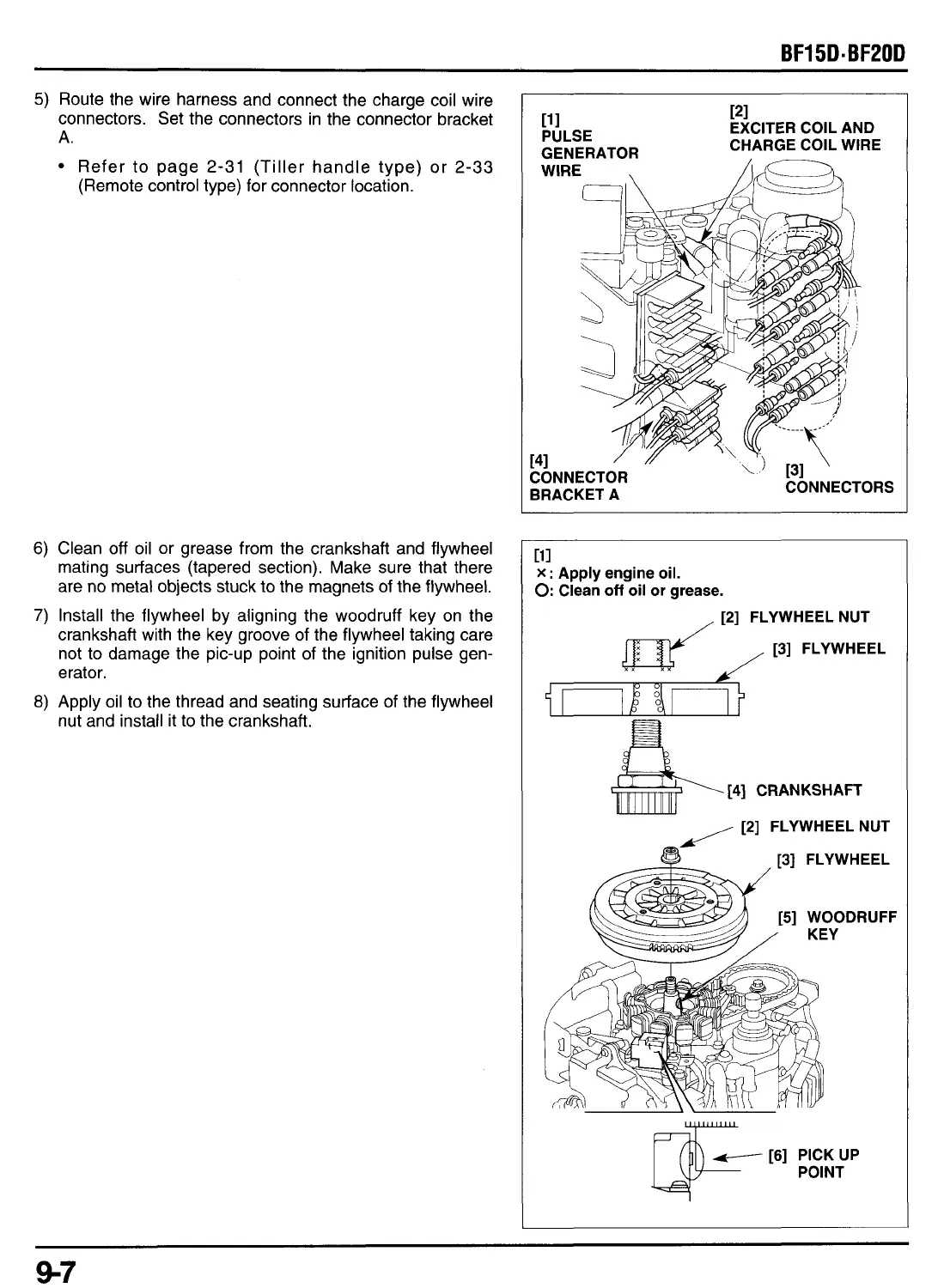

Route the wire harness and connect the charge coil wire
connectors. Set the connectors in the connector bracket
A.
Refer
to
page
2-31
(Tiller handle type) or
2-33
(Remote control type) for connector location.
6) Clean
off
oil or grease from the crankshaft and flywheel
mating surfaces (tapered section). Make sure that there
are no metal objects stuck
to
the magnets of the flywheel.
7)
Install the flywheel by aligning the woodruff key on the
crankshaft with the key groove of the flywheel taking care
not
to
damage the pic-up point of the ignition pulse gen-
e rat or.
8)
Apply oil
to
the thread and seating surface of the flywheel
nut and install it
to
the crankshaft.
PI
CHARGE COIL WIRE
r11
EXCITER COIL AND
PULSE
GENERATOR
WIRE
11
1
X
:
Apply engine oil.
0:
Clean
off
oil or grease.
[2] FLYWHEEL NUT
/
[3] FLYWHEEL
&
[4]
CRANKSHAFT
[2]
FLYWHEELNUT
[6]
PICK UP
POINT
s7
