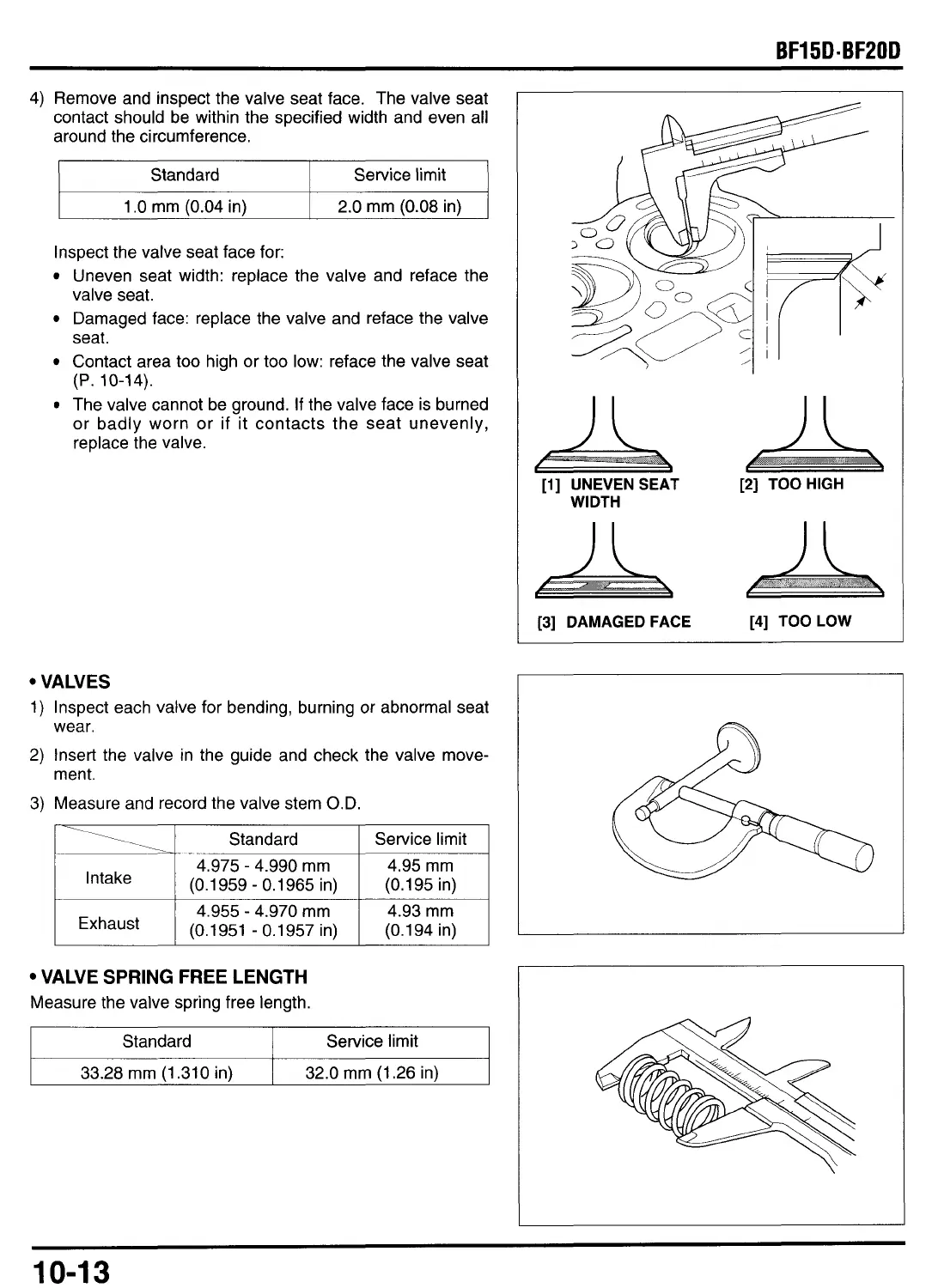

4) Remove and inspect the valve seat face. The valve seat
contact should be within the specified width and even all
around the circumference.
32.0 mm (1.26 in)
Standard
I Servicelimit 1
I
1 .O mm (0.04 in) 1 2.0 mm (0.08 in) I
Inspect the valve seat face for:
Uneven seat width: replace the valve and reface the
valve seat.
Damaged face: replace the valve and reface the valve
seat.
Contact area too high or too low: reface the valve seat
The valve cannot be ground. If the valve face is burned
or badly worn or if it contacts the seat unevenly,
replace the valve.
(P. 10-14).
4.975
- 4.990 mm 4.95 mm
~ Intake 1 (0.1959 - 0.1965 in) I (0.195 in) I
4.955 - 4.970 mm
4.93 mm
~ (0.1951 - 0.1957 in) 1 (0.194 in)
I Exhaust
I
VALVE SPRING FREE LENGTH
Measure the valve spring free length.
I Standard 1 Service limit I
[l] UNEVEN SEAT [2] TOO HIGH
WIDTH
[3] DAMAGED FACE [4] TOOLOW
