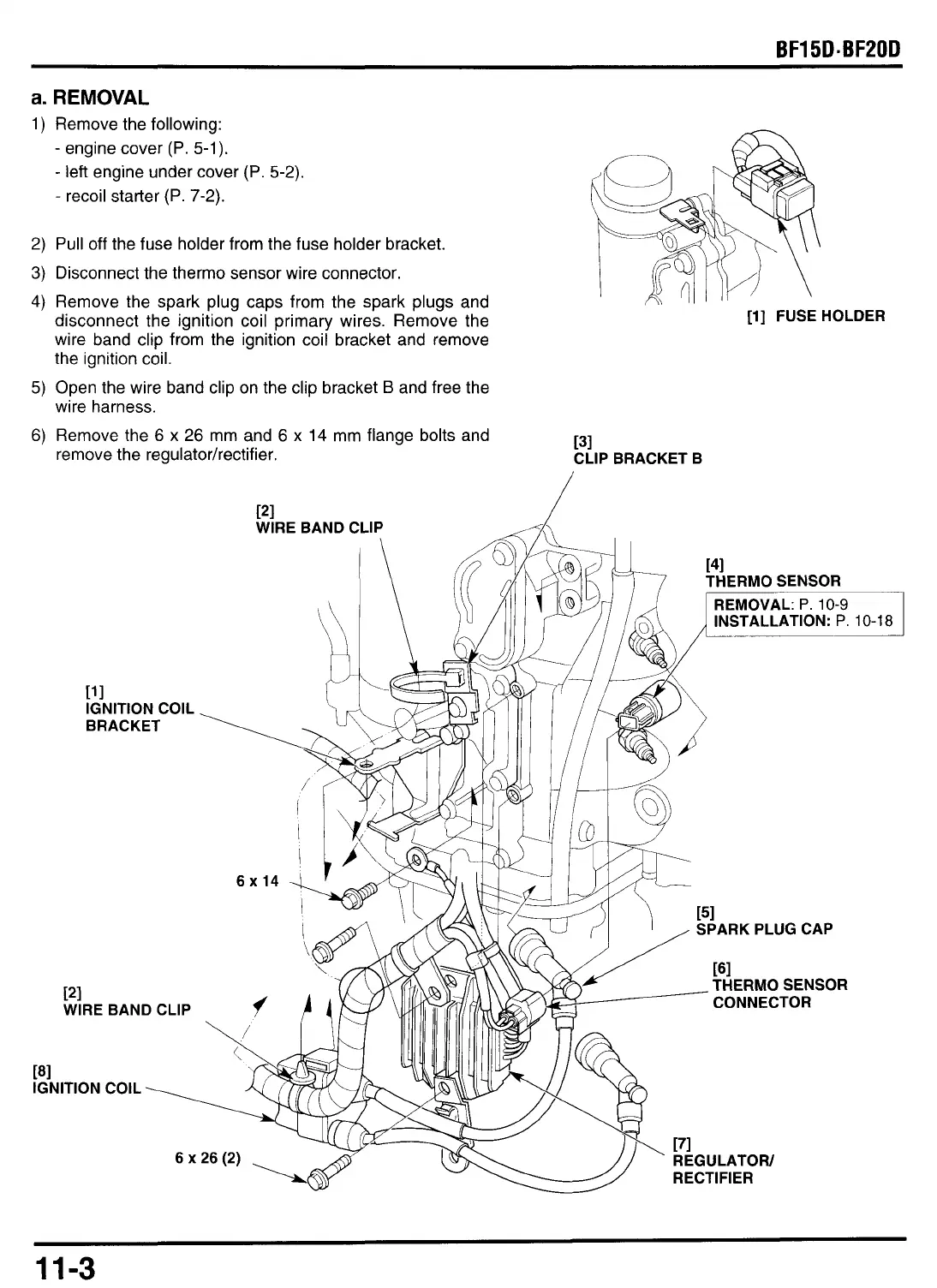

a.
REMOVAL
1)
Remove the following:
-
engine cover (P.
5-1).
-
left engine under cover (P.
5-2).
-
recoil starter (P.
7-2).
2)
Pull off the fuse holder from the fuse holder bracket.
3)
Disconnect the thermo sensor wire connector.
4)
Remove the spark plug caps from the spark plugs and
disconnect the ignition coil primary wires. Remove the
wire band clip from the ignition coil bracket and remove
the ignition coil.
5)
Open the wire band clip on the clip bracket
B
and free the
wire harness.
6)
Remove the
6
x
26
mm and
6
x
14
mm flange bolts and
remove the regulatorhectifier.
[I]
FUSE HOLDER
131
CLIP BRACKET B
/
t11
IGNITION COIL
BRACKET
PI
WIRE BAND CLIP
181
IGNITION COIL
1
6x
11-3
To Next Page
