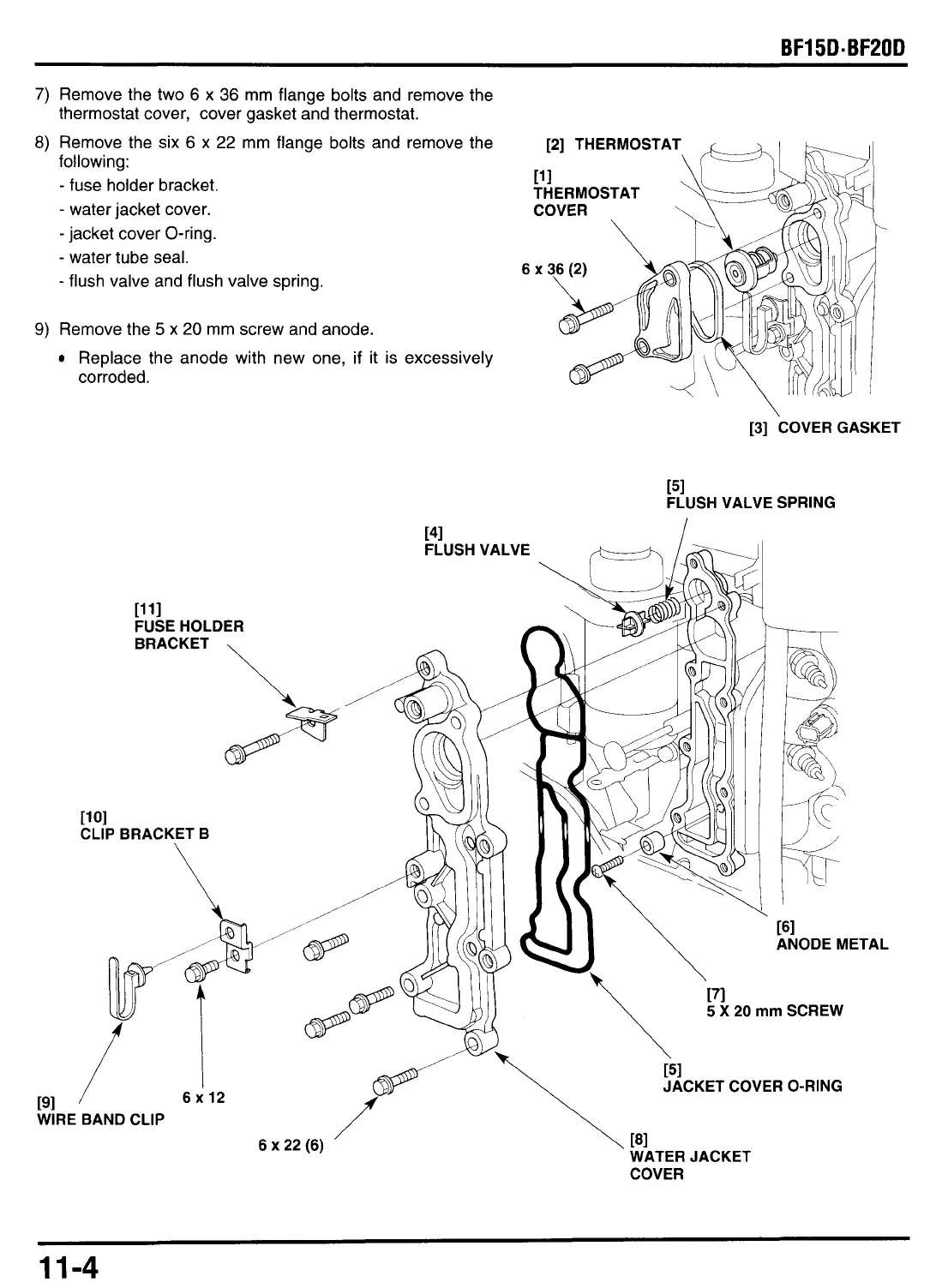

7) Remove the two 6 x 36 mm flange bolts and remove the
thermostat cover, cover gasket and thermostat.
9)
Remove the six 6 x 22 mm flange bolts and remove the
following:
- fuse holder bracket.
- water jacket cover.
- jacket cover O-ring.
- water tube seal.
- flush valve and flush valve spring.
Remove the
5 x 20 mm screw and anode.
Replace the anode with new one, if it is excessively
corroded.
191
WIRE
\MI k4l
[2] THERMOSTAT
THERMOSTAT
[3] COVER GASKET
[51
FLUSH VALVE SPRING
BAND
CLIP / \
6 x 22 (6)
\ PI
WATER JACKET
COVER
11-4
