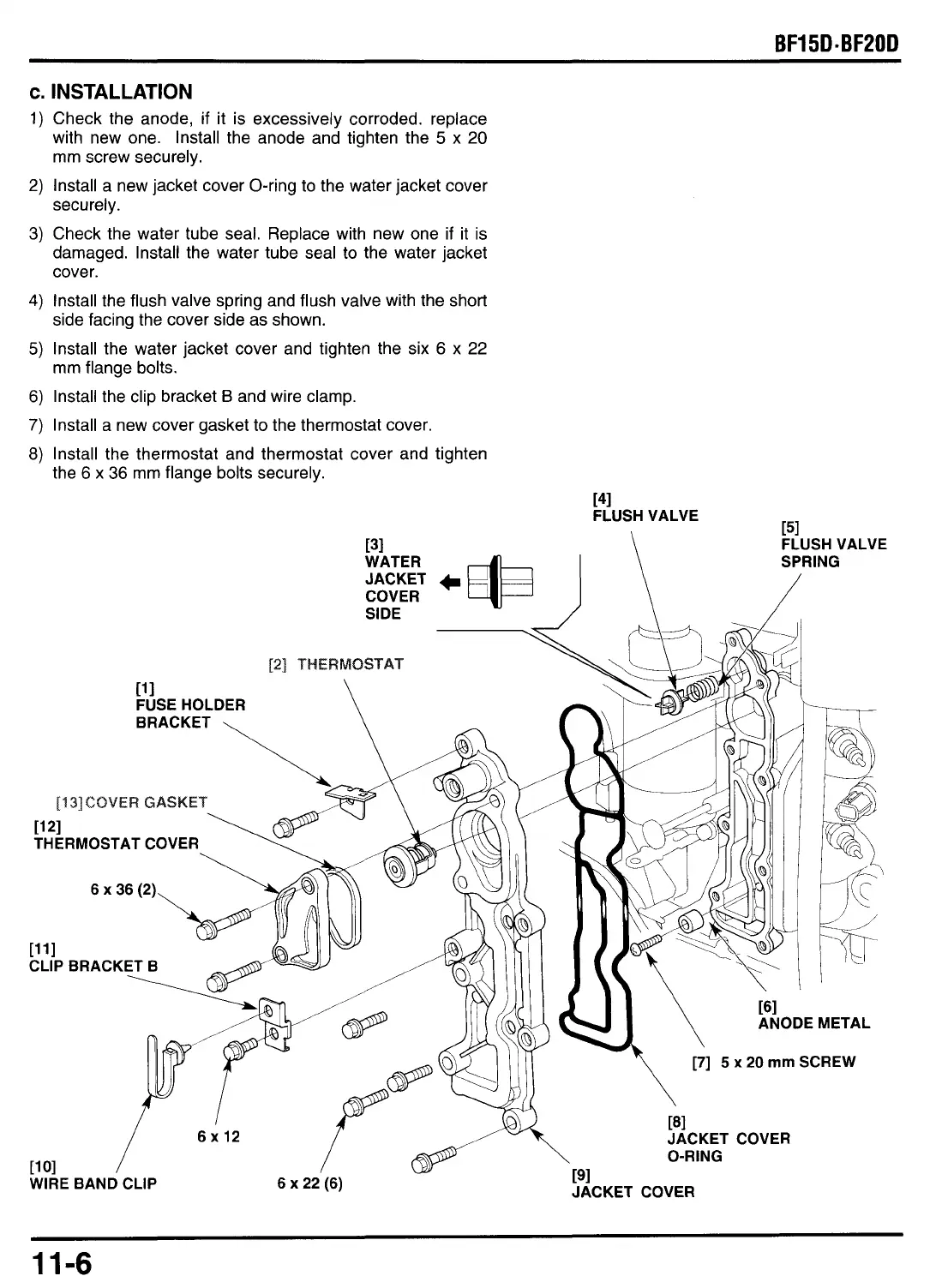

BF15D-BF20D
c.
INSTALLATION
Check the anode,
if
it is excessively corroded. replace
with new one. Install the anode and tighten the
5
x
20
mm screw securely.
Install a new jacket cover O-ring
to
the water jacket cover
securely.
Check the water tube seal. Replace with new one if it is
damaged. Install the water tube seal to the water jacket
cover.
Install the flush valve spring and flush valve with the short
side facing the cover side as shown.
Install the water jacket cover and tighten the six
6
x
22
mm flange bolts.
Install the clip bracket
B
and wire clamp.
Install a new cover gasket
to
the thermostat cover.
Install the thermostat and thermostat cover and tighten
the 6
x
36
mm flange bolts securely.
[31
WATER
JACKET
+
COVER
SIDE
[41
FLUSHVALVE
151
FLUSH VALVE
I
\
SPRING
/
11-6
To Next Page
