BF15D-BF20D
b.

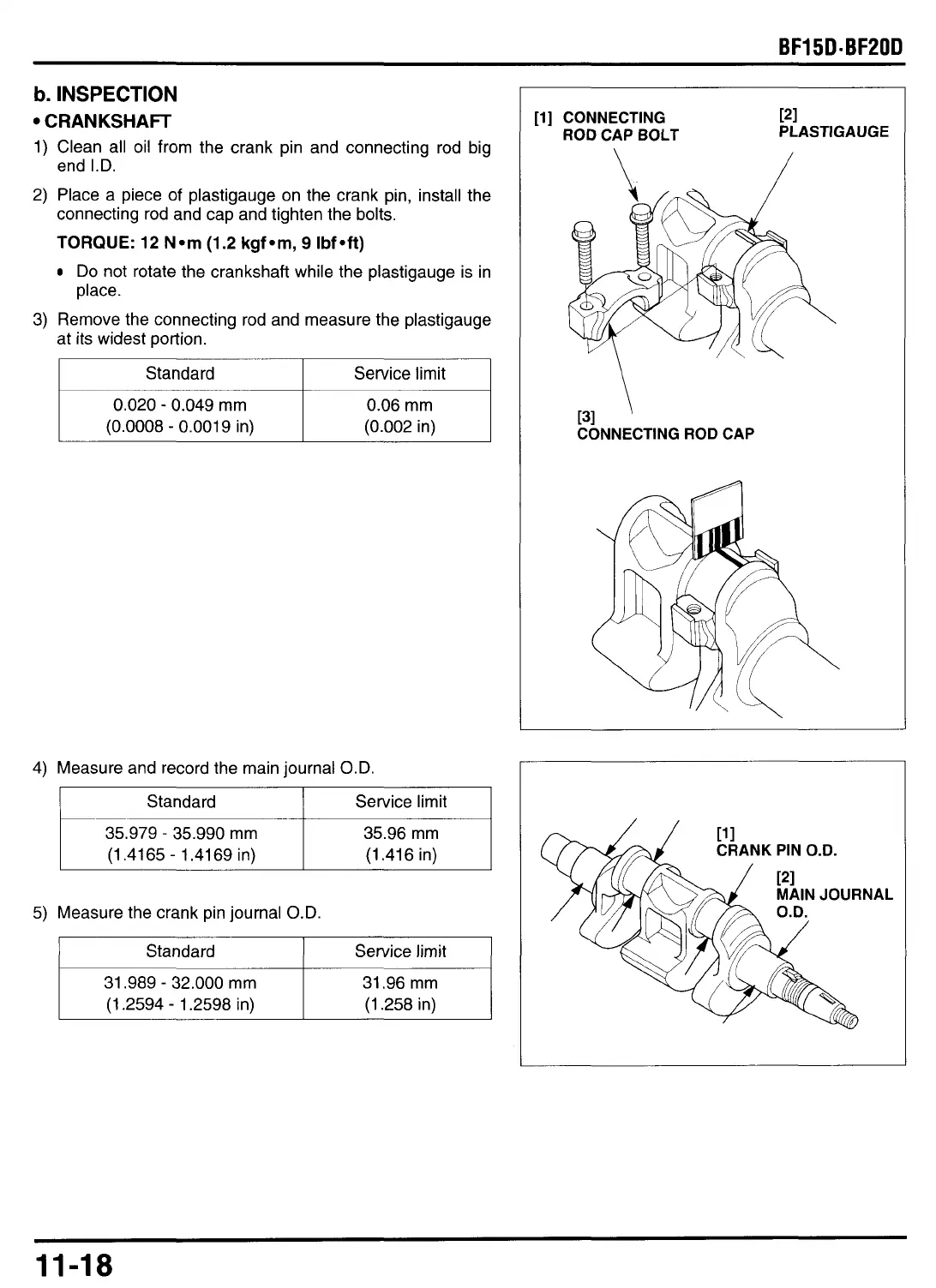

INSPECTION
CRANKSHAFT
1) Clean all oil from the crank pin and connecting rod big
2) Place a piece
of
plastigauge on the crank pin, install the
end
I.D.
connecting rod and cap and tighten the bolts.
TORQUE:
12 N*m (1.2 kgf*m,
9
Ibf*ft)
Do not rotate the crankshaft while the plastigauge is in
place.
3) Remove the connecting rod and measure the plastigauge
at its widest portion.
I
Standard
I
Servicelimit
I
0.020
-
0.049 mm
(0.0008
-
0.0019 in)
0.06 mm
4) Measure and record the main journal
O.D.
I
Standard
1
Service limit
I
35.979
-
35.990 mm
(1.4165
-
1.4169 in)
35.96 mm
(1.41
6
in)
5) Measure the crank pin journal O.D.
I
Standard
1
Servicelimit
1
31.989
-
32.000 mm
1
(1.2594
-
1.2598 in)
31 -96 mm
(1.258 in)
[l]
CONNECTING
ROD
CAP BOLT
PI
PLASTIGAUGE
\
/
131
\
CONNECTING
ROD
CAP
11-18
