BF15D-BF20D

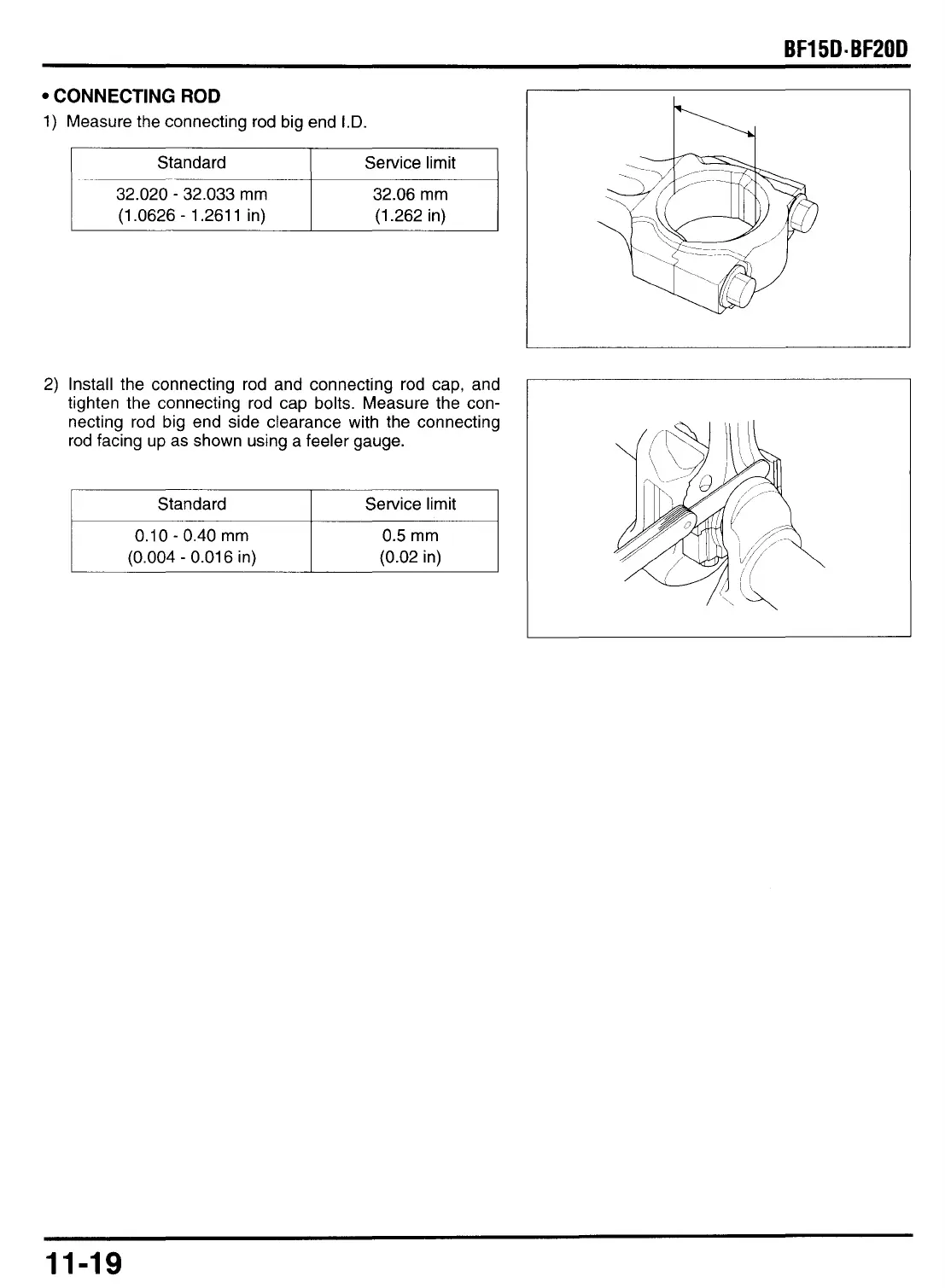

CONNECTING ROD
1) Measure the connecting rod big end I.D.
Standard
32.020
- 32.033 mm
(1.0626
- 1.261 1 in)
___
Service limit
32.06 mm
1 (1.262 in)
2) Install the connecting rod and connecting rod cap, and
tighten the connecting rod cap bolts. Measure the con-
necting rod big end side clearance with the connecting
rod facing up as shown using a feeler gauge.
Standard
0.1
0 - 0.40 mm
(0.004 - 0.01 6 in)
0.5 mm
(0.02 in)
I'----------
11-19
