BF15D-BF20D
b.

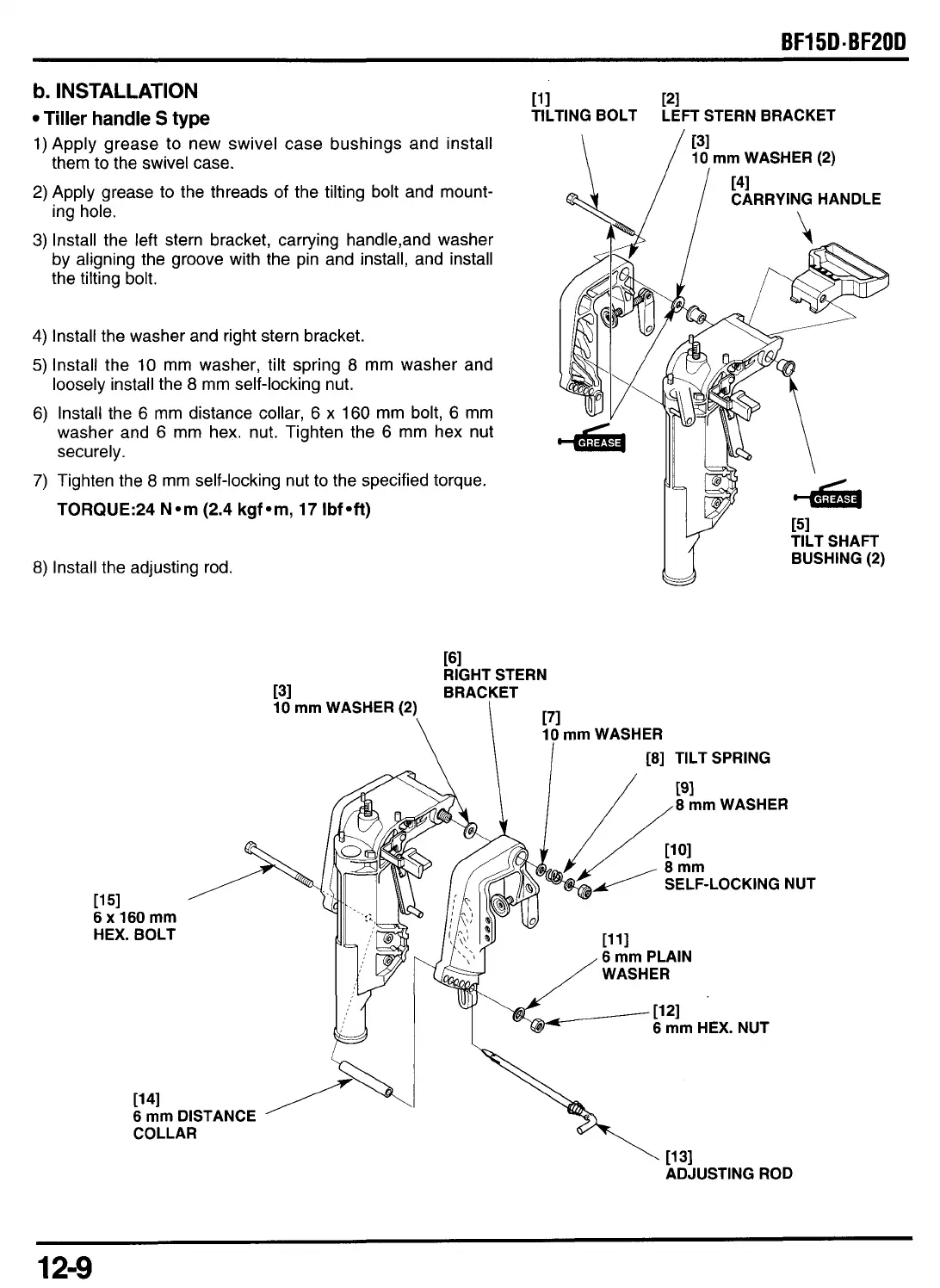

INSTALLATION
Tiller
handle
S
type
11
1
121
TILTING BOLT LEFT STERN BRACKET
1)Apply grease
to
new swivel case bushings and install
them to the swivel case.
2)
Apply grease
to
the threads of the tilting
bolt
and mount-
ing hole.
3)
Install the left stern bracket, carrying handle,and washer
by aligning the groove with the pin and install, and install
the tilting bolt.
4)
Install the washer and right stern bracket.
5)
Install the 10 mm washer, tilt spring
8
mm washer and
loosely install the
8
mm self-locking nut.
6) Install the 6 mm distance collar, 6
x
160 mm bolt, 6 mm
washer and 6 mm hex. nut. Tighten the 6 mm hex nut
securely.
TORQUE:24
Nem
(2.4
kgfem,
17
Ibfeft)
7)
Tighten the
8
mm self-locking nut
to
the specified torque.
8)
Install the adjusting rod.
161
RIGHT STERN
10
mm WASHER (2)
[8] TILT SPRING
131
I
11 51
6
x
160
mm
HEX.
BOLT
\
4
151
TILT SHAFT
BUSHING (2)
LJ
~41
6
mm DISTANCE
COLLAR
[I31
ADJUSTING ROD
1 2-9
