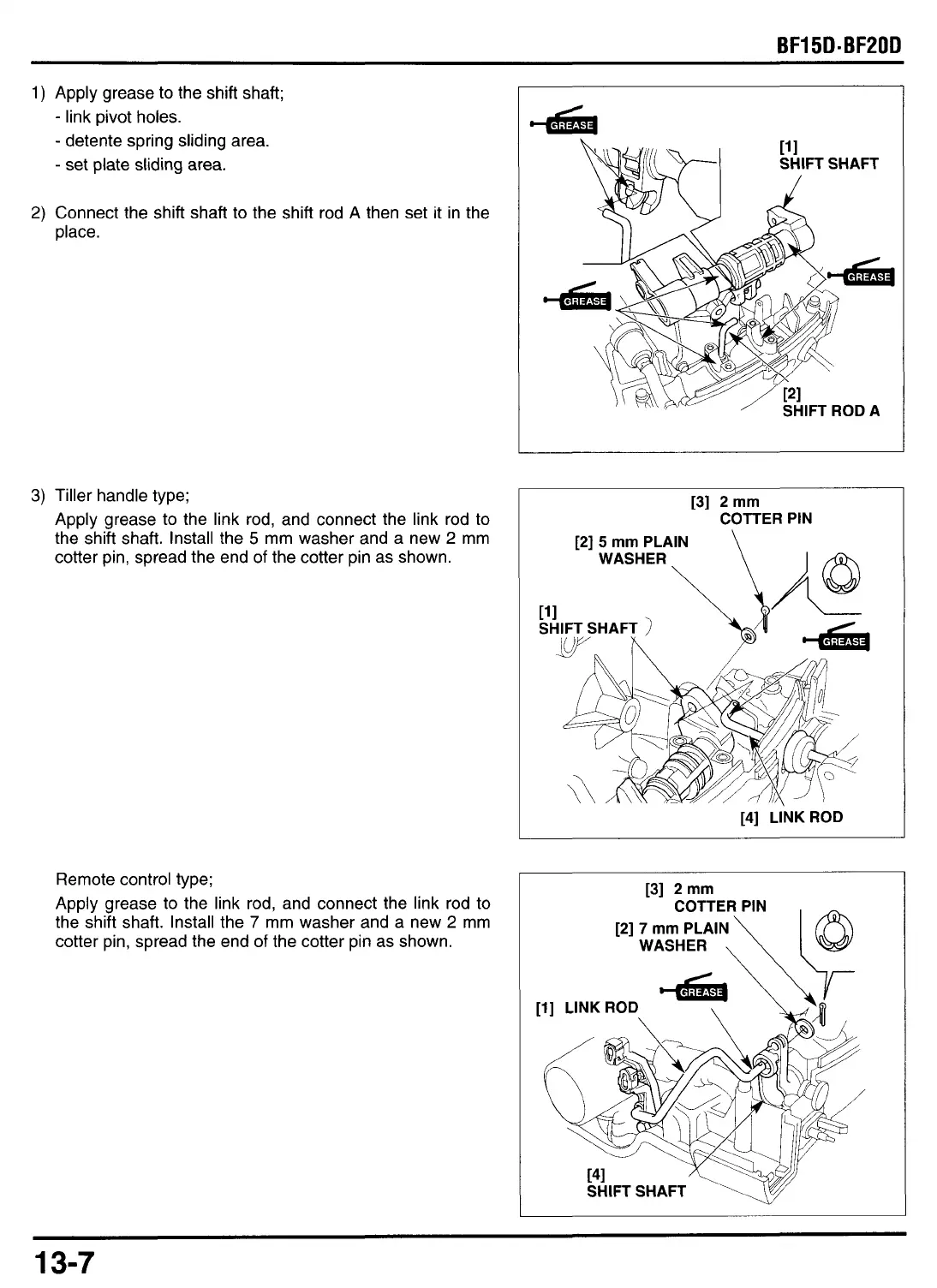

BF15D-BF20D
1)
Apply grease
to
the shift shaft;
-
link pivot holes.
-
detente spring sliding area.
-
set plate sliding area.
2)
Connect the shift shaft to the shift rod A then set
it
in the
place.
3)
Tiller handle type;
Apply grease
to
the link rod, and connect the link rod
to
the shift shaft. Install the
5
mm washer and a new
2
mm
cotter pin, spread the end of the cotter pin as shown.
Remote control type;
Apply grease
to
the link rod, and connect the link rod
to
the shift shaft. Install the
7
mm washer and a new
2
mm
cotter pin, spread the end of the cotter pin as shown.
[3]
2
mm
COTTER PIN
~215
mm
PLAIN
\
I
[4]
LINK ROD
[3]
2
mm
COTTER PIN
[217
mm
PLAIN
\
(0
\
WASHER
13-7
