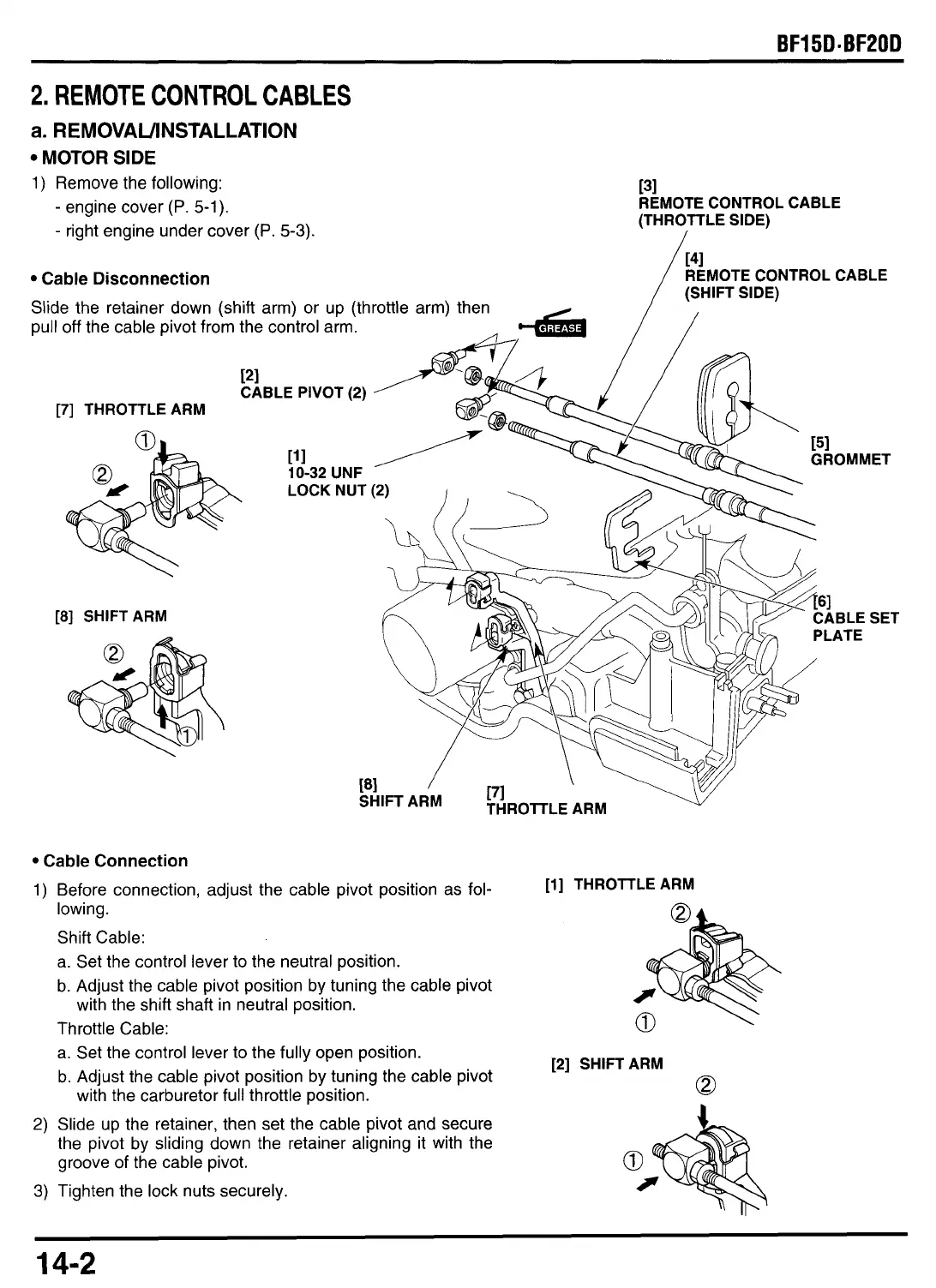

2. REMOTE CONTROL CABLES
a. REMOVAUINSTALLATION
MOTOR SIDE
1) Remove the following:
- engine cover (P. 5-1).
- right engine under cover (P. 5-3).
[31
REMOTE CONTROL CABLE
(THROTTLE SIDE)
I
/
Cable Disconnection
Slide the retainer down (shift arm) or up (throttle arm) then
pull
off the cable pivot from the control arm.
PI
CABLE PIVOT (2)
[7] THROTTLE ARM
LOCK NUT
(2)
ARM THROTTLE ARM
Cable Connection
1) Before connection, adjust the cable pivot position as fol-
[l] THROTTLE ARM
lowing.
Shift Cable:
a. Set the control lever
to the neutral position.
b. Adjust the cable pivot position by tuning the cable pivot
Throttle Cable:
a. Set the control lever
to the fully open position.
b. Adjust the cable pivot position by tuning the cable pivot
with the shift shaft in neutral position.
[2] SHIFTARM
0
with the carburetor full throttle position.
2) Slide up the retainer, then set the cable pivot and secure
the pivot by sliding down the retainer aligning it with the
groove of the cable pivot.
3) Tighten the lock nuts securely.
14-2
