BF15D-BF20D

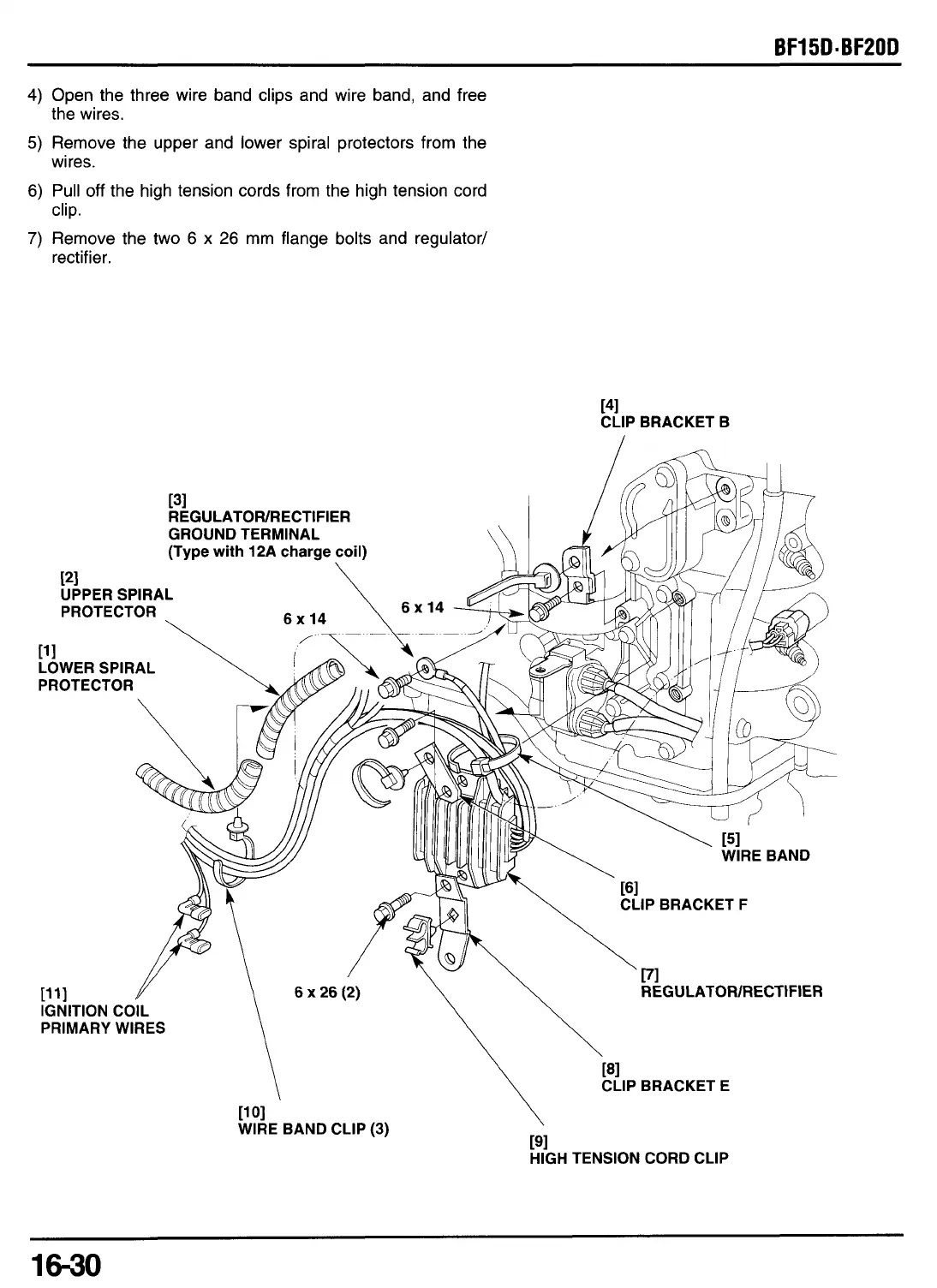

4) Open the three wire band clips and wire band, and free
5) Remove the upper and lower spiral protectors from the
6) Pull off the high tension cords from the high tension cord
7) Remove the two 6 x 26 mm flange bolts and regulator/
the wires.
wires.
clip.
rectifier.
141
CLIP BRACKET
B
131
REGULATOWRECTIFIER
GROUND TERMINAL
121
UPPER SPIRAL
PROTECTOR
11 1
LOWER SPIRAL
PROTECTOR
CLIP BRACKET F
1111 REGULATOWRECTIFIER
IGNITION COIL
PRIMARY WIRES
IP BRACKET E
E BAND CLIP (3)
191
HIGH TENSION CORD CLIP
16-30
