BF15D.BF20D
c.

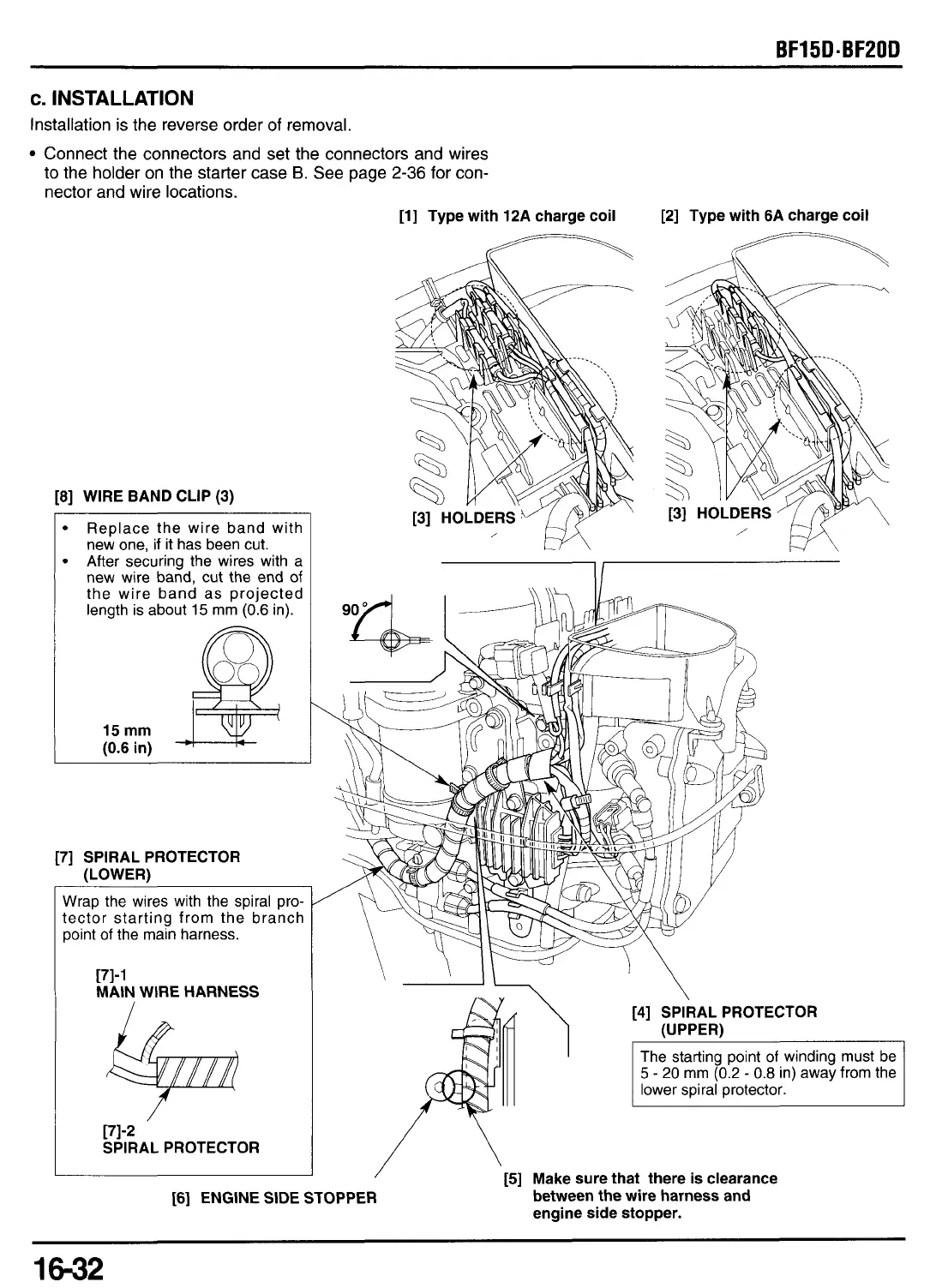

INSTALLATION
Installation
is
the reverse order
of
removal.
Connect the connectors and set the connectors and wires
to
the holder
on
the starter case
9.
See page
2-36
for con-
nector and wire locations.
[8]
WIRE BAND CLIP
(3)
new one,
if
it has been cut.
After securing the wires with a
new wire band, cut the end
of
the wire band as projected
length is about
15
mm
(0.6
in).
15
mm
(0.6 in)
-
[7] SPIRAL PROTECTOR
(LOWER)
Wrap the wires with the spiral pro-
tector starting from the branch
point
of
the main harness.
[71-1
MAIN WIRE HARNESS
171-2
SPIRAL PROTECTOR
[l]
Type with 12A charge coil
n
[2] Type with 6A charge coil
n
\
[4] SPIRAL PROTECTOR
(UPPER)
5
-
20
mm
(0.2
-
0.8
in) away from the
lower spiral protector.
r51
Make sure that
there is clearance
/
[6] ENGINE SIDE STOPPER
-_
between the wire harness and
engine side stopper.
16-32
To Next Page
