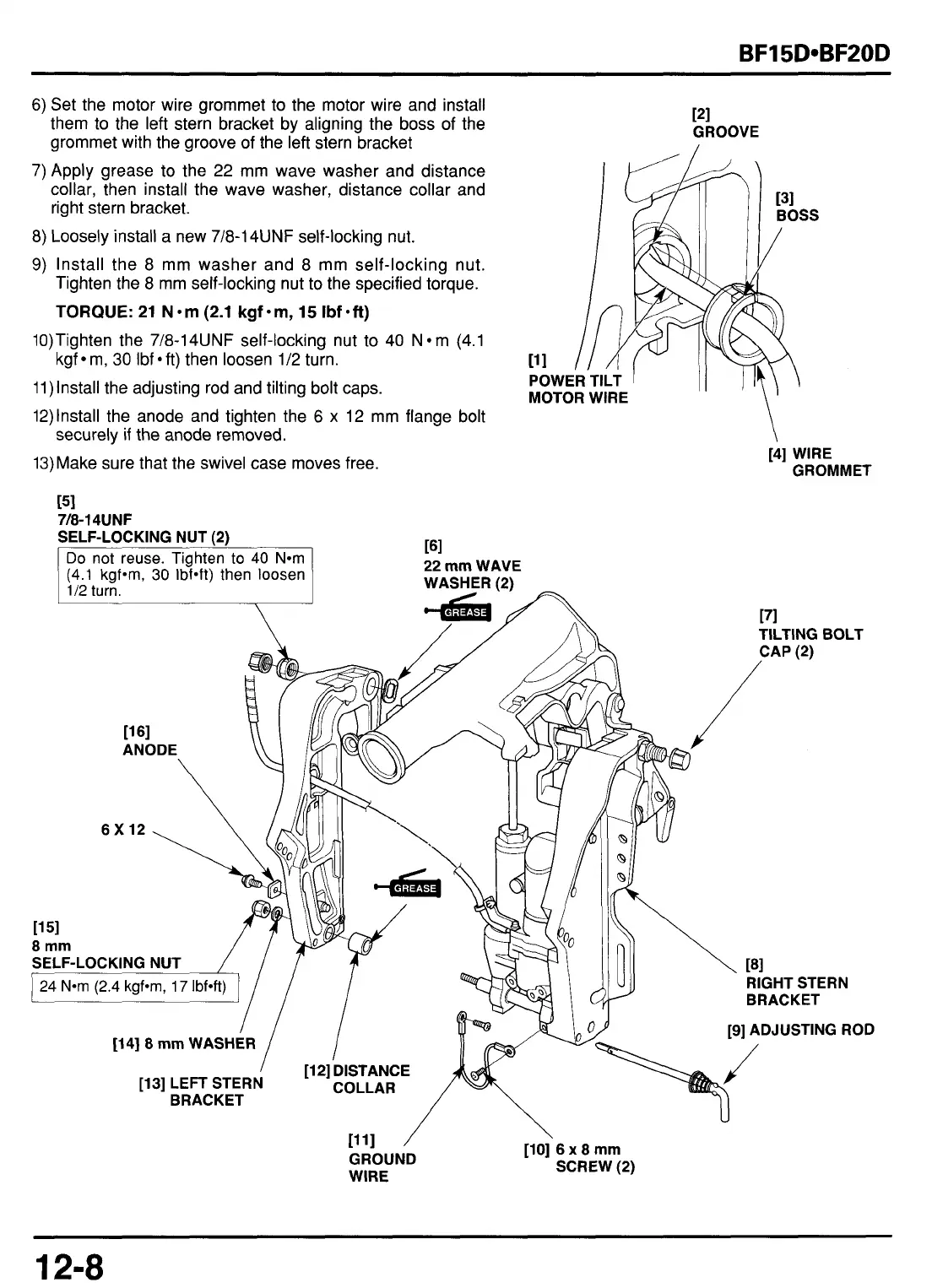

BF15DoBF20D
6)
Set the motor wire grommet to the motor wire and install
them to the left stern bracket by aligning the boss of the
grommet with the groove of the left stern bracket
7) Apply grease
to
the 22
mm
wave washer and distance
collar, then install the wave washer, distance collar and
right stern bracket.
8)
Loosely install a new 7/8-14UNF self-locking nut.
9)
Install the 8
mm
washer and 8
mm
self-locking nut.
Tighten the 8
rnm
self-locking nut to the specified torque.
TORQUE:
21
N*m
(2.1
kgf-m,
15
Ibf-ft)
10)Tighten the 7/8-14UNF self-locking nut to 40 N*m (4.1
kgf
m,
30 Ibf eft) then loosen 1/2 turn.
1l)lnstall the adjusting rod and tilting bolt caps.
12)lnstall the anode and tighten the
6
x
12
mm
flange bolt
13)Make sure that the swivel case moves free.
securely
if
the anode removed.
151
718-14UNF
121
GROOVE
[4] WIRE
GROMMET
\
POWERTILT
1
MOTOR WIRE
171
TILTING BOLT
CAP
(2)
/
SELF-LOCKING NUT (2)
RIGHT STERN
BRACKET
ADJUSTING
ROD
GROUND
WIRE
\
[lo]
6
x
8
mrn
SCREW(2)
12-8
