BF15DoBF20D
b.

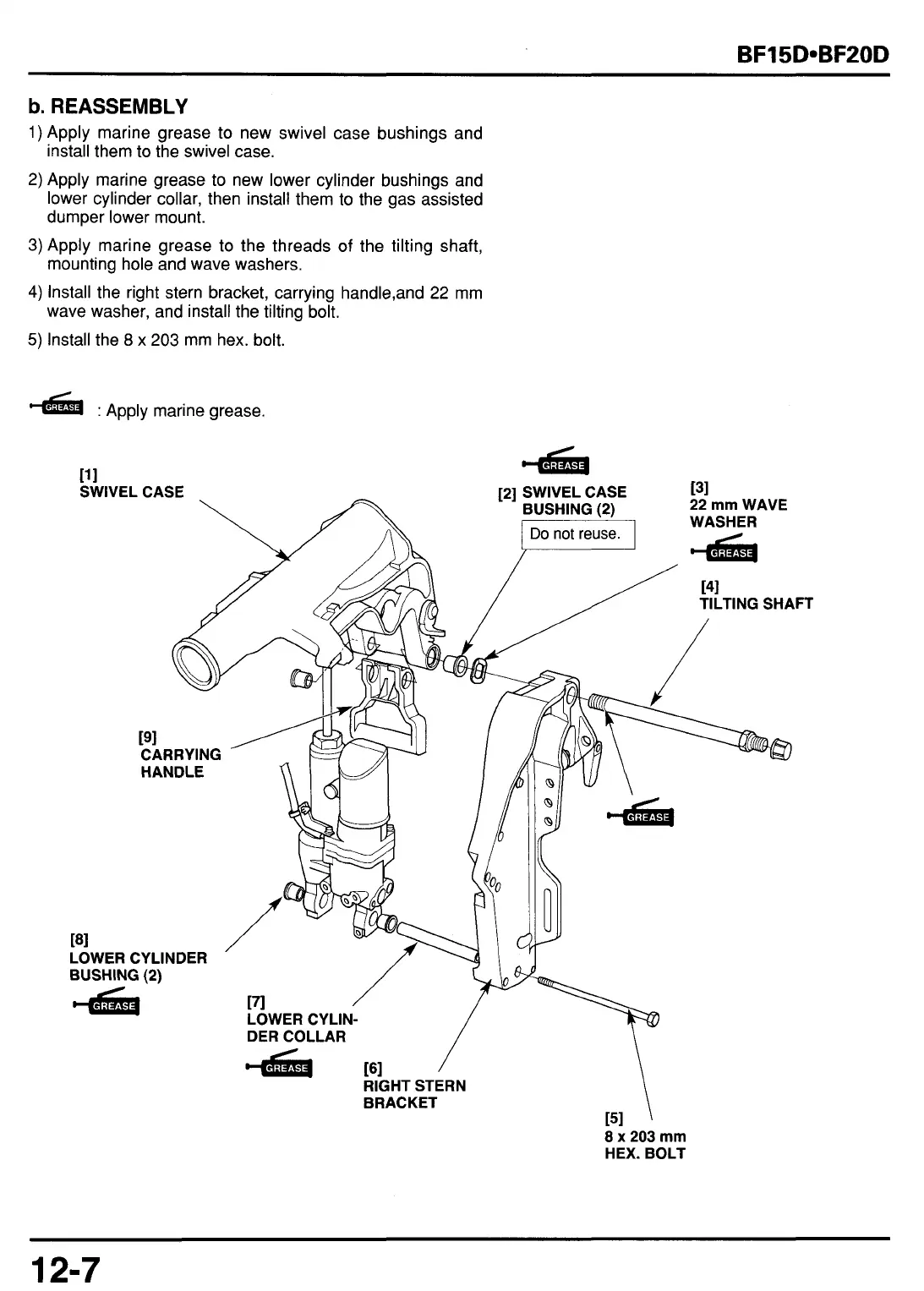

REASSEMBLY
1)Apply marine grease to new swivel case bushings and
install them to the swivel case.
2)
Apply marine grease to new lower cylinder bushings and
lower cylinder collar, then install them to the gas assisted
dumper lower mount.
3)Apply marine grease to the threads
of
the tilting shaft,
mounting hole and wave washers.
4)
Install the right stern bracket, carrying handle,and 22 mm
wave washer, and install the tilting bolt.
5)
Install the
8
x
203 mm hex. bolt.
4
:
~pp~y marine grease.
11
1
SWIVEL CASE
[2] SWIVEL CASE [31
BUSHING
(2)
22
mm
WAVE
I
~onot
reuse.
1
WASHER
TILTING SHAFT
I
AIYYlil
\
,
CARRYING
HANDLE
181
LOWER CYLINDER
BUSHING
(2)
DER COLLAR
161
RIGHT STERN
BRACKET
[51
8
x
203
mm
HEX. BOLT
12-7
