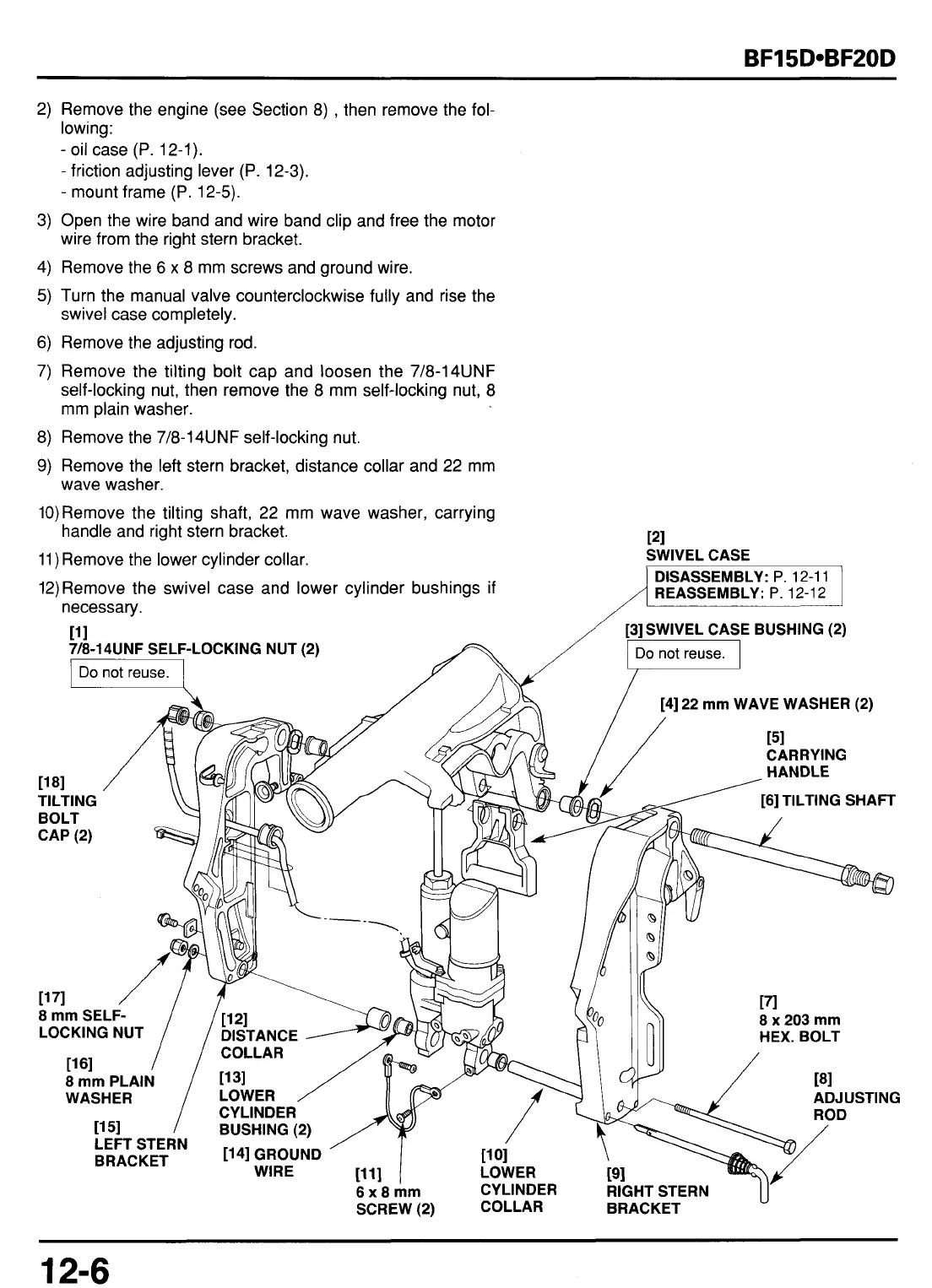

BF15DoBF20D
Remove the engine (see Section 8) , then remove the fol-
lowing:
- oil case (P. 12-1).
- friction adjusting lever (P. 12-3).
- mount frame (P. 12-5).
Open the wire band and wire band clip and free the motor
wire from the right stern bracket.
Remove the
6 x 8 mm screws and ground wire.
Turn the manual valve counterclockwise fully and rise the
swivel case completely.
Remove the adjusting rod.
Remove the tilting bolt cap and loosen the 7/8-14UNF
self-locking nut, then remove the 8
mm self-locking nut, 8
mm plain washer.
Remove the 7/8-14UNF self-locking nut.
Remove the left stern bracket, distance collar and 22
mm
wave washer.
10)Remove the tilting shaft, 22
mm wave washer, carrying
handle and right stern bracket.
11)Remove the lower cylinder collar.
SWIVEL CASE
12)Remove the swivel case and lower cylinder bushings if
-LOCKING NUT (2)
] 22 mm WAVE WASHER (2)
61 TILTING SHAFT
8 mm SELF-
8 x 203 mm
LOCKING NUT HEX. BOLT
12-6
