BF15DoBF20D
b.

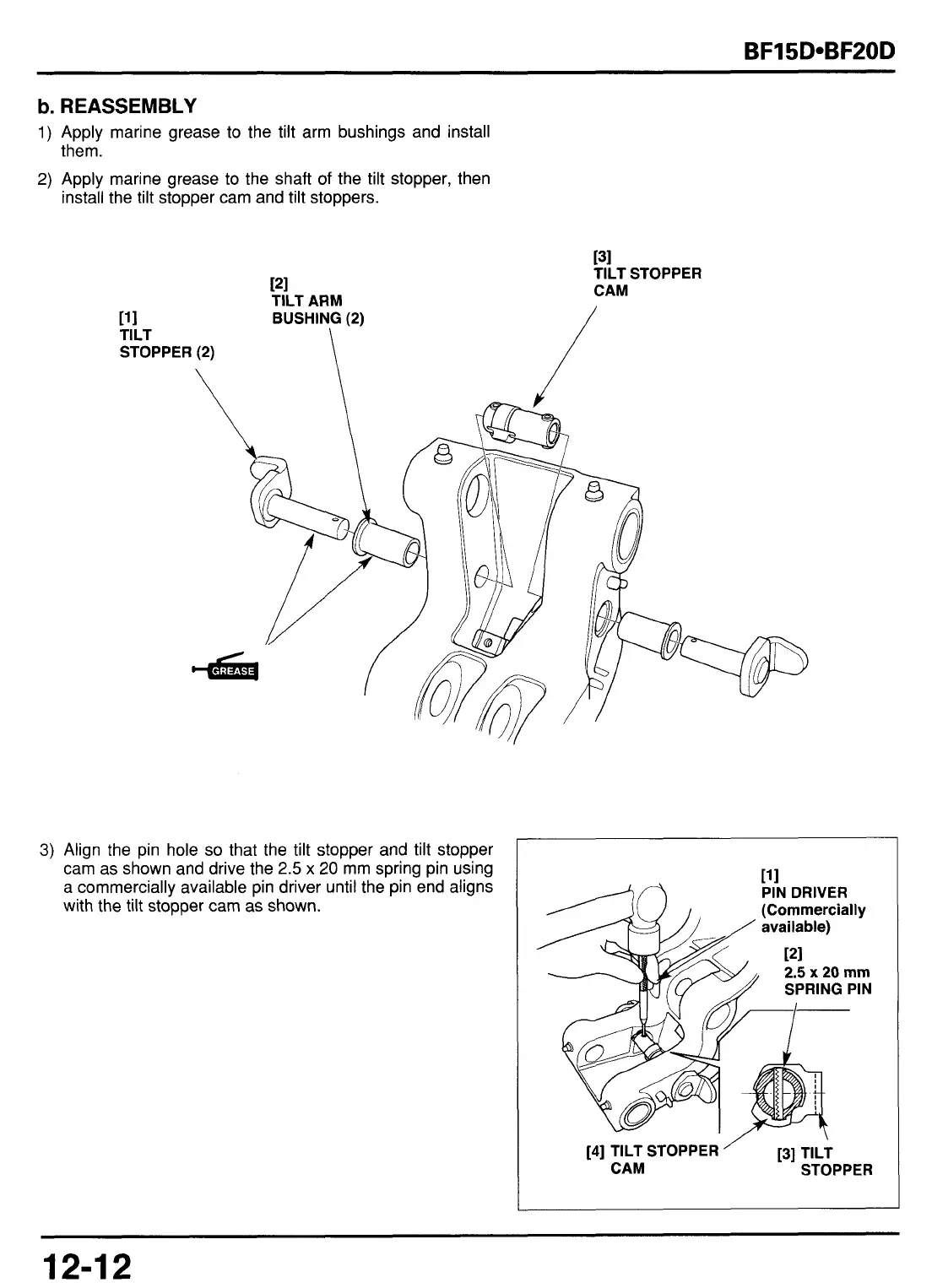

REASSEMBLY
1)
Apply marine grease to the tilt arm bushings and install
2)
Apply marine grease to the shaft of the tilt stopper, then
them.
install the tilt stopper cam and tilt stoppers.
121
TILT
ARM
[1
I
BUSHING (2)
TILT
STOPPER (2)
\
[31
TILT STOPPER
CAM
i
3)
Align the pin hole
so
that the tilt stopper and tilt stopper
cam
as
shown and drive the
2.5
x
20
mm
spring pin using
a commercially available pin driver until the pin end aligns
with the tilt stopper cam as shown.
11
1
PIN DRIVER
[4] TILT STOPPER
CAM
STOPPER
12-1 2
