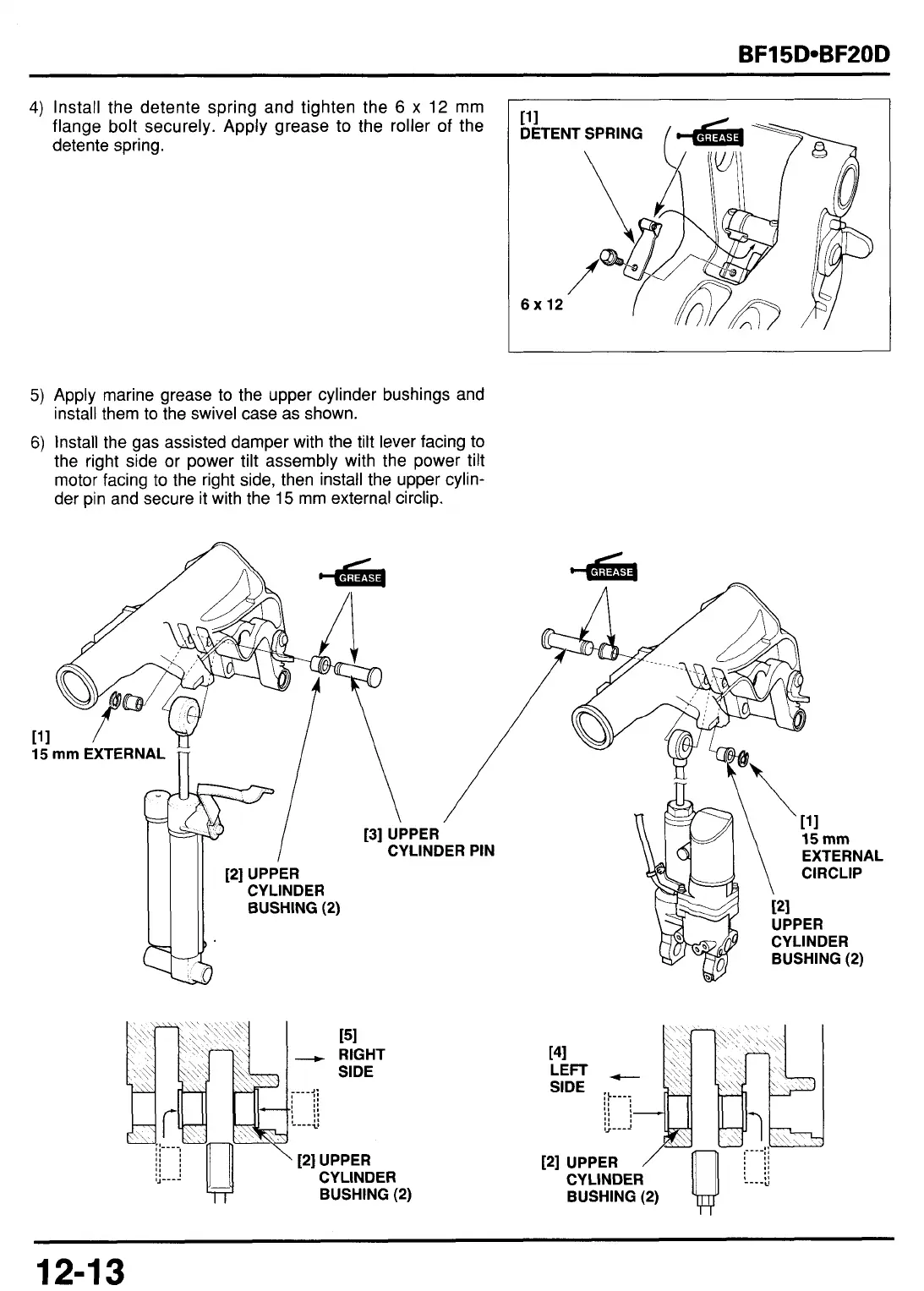

Install the detente spring and tighten the
6
x
12
mm
flange bolt securely. Apply grease to the roller of the
detente spring.
5)
Apply marine grease to the upper cylinder bushings and
install them to the swivel case as shown.
6)
Install the gas assisted damper with the tilt lever facing to
the right side or power tilt assembly with the power tilt
motor facing to the right side, then install the upper cylin-
der pin and secure it with the
15
mm
external circlip.
PER
CYLINDER PIN EXTERNAL
w
BUSHING
(2)
12-1
3
