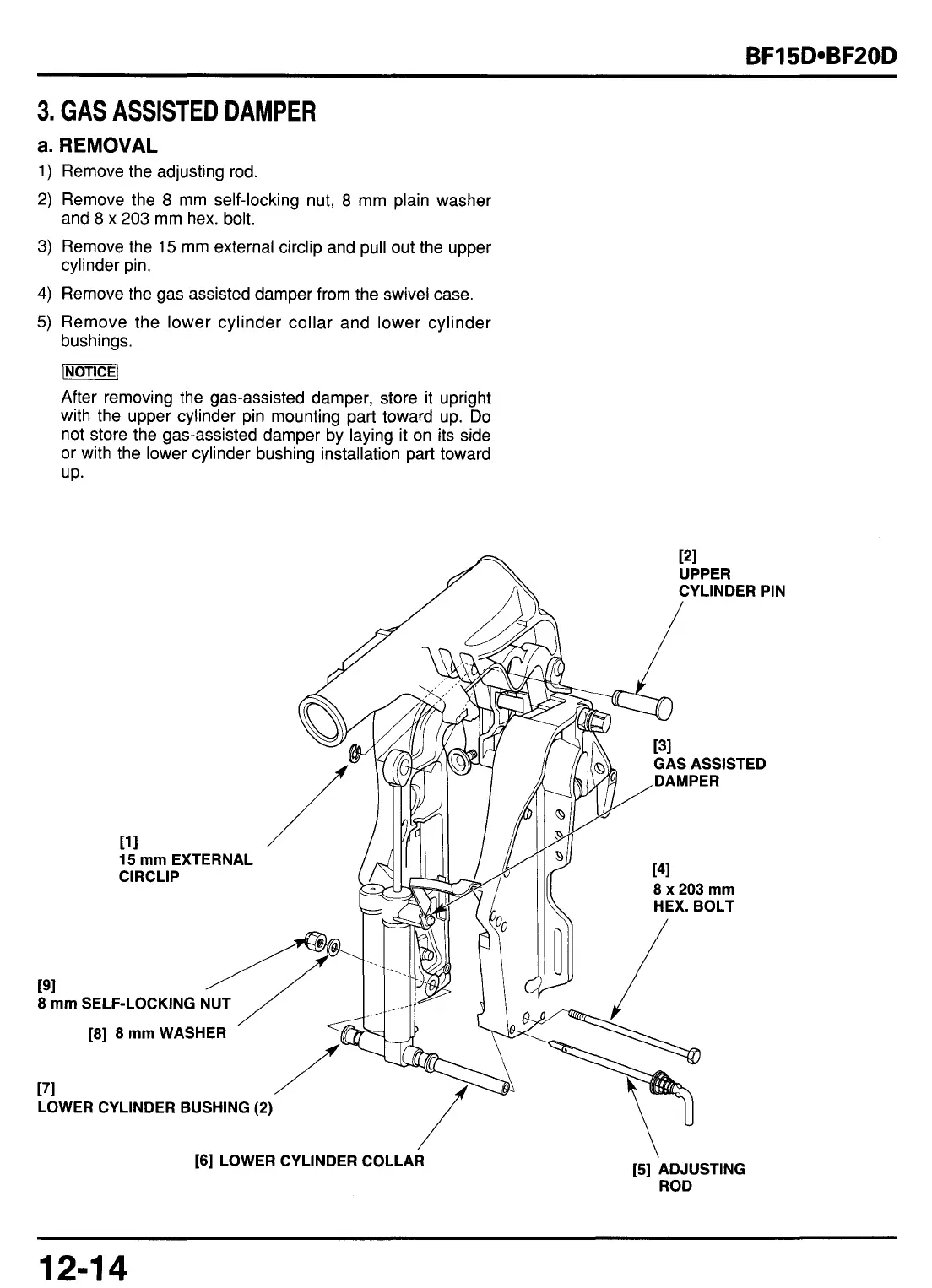

GAS ASSISTED DAMPER
a.
REMOVAL
1)
Remove the adjusting rod.
2)
Remove the
8
mm
self-locking nut,
8
mm
plain washer
and
8
x
203
mm
hex. bolt.
3)
Remove the
15
mm external circlip and pull out the upper
cylinder pin.
4)
Remove the gas assisted damper from the swivel case.
5)
Remove the lower cylinder collar and lower cylinder
bushings.
-1
After removing the gas-assisted damper, store it upright
with the upper cylinder pin mounting part toward up.
Do
not store the gas-assisted damper by laying it on its side
or with the lower cylinder bushing installation part toward
UP.
GAS ASSISTED
11
1
15
mm
EXTERNAL
ClRCLlP
191
8
mm
SELF-LOCKING NUT
[8] 8
mm
WASHER
171
LOWER CYLINDER BUSHING (2)
8
x
203
mm
b
jXmBOLT
/
[6]
LOWER CYLINDER COLLAR
\
[5] ADJUSTING
ROD
124
4
