Honda BF15D - Page 334

BF15DoBF20D

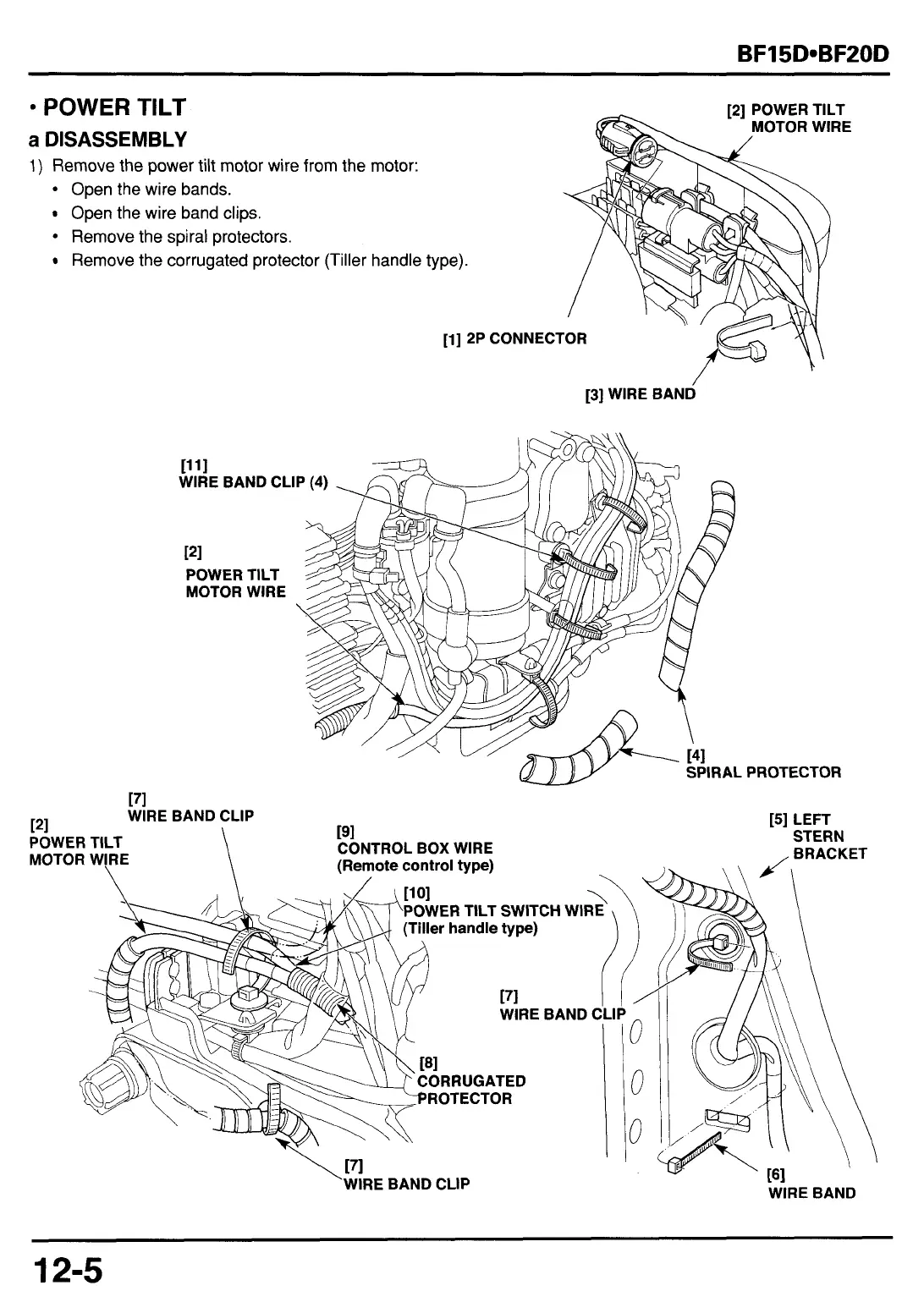

POWER TILT
a DISASSEMBLY
1) Remove the power tilt motor wire from the motor:
Open the wire bands.
Open the wire band clips.
Remove the spiral protectors.
Remove the corrugated protector (Tiller handle type).
CONNECTOR
[3] WIRE BAND
12-5
