BF15DoBF20D

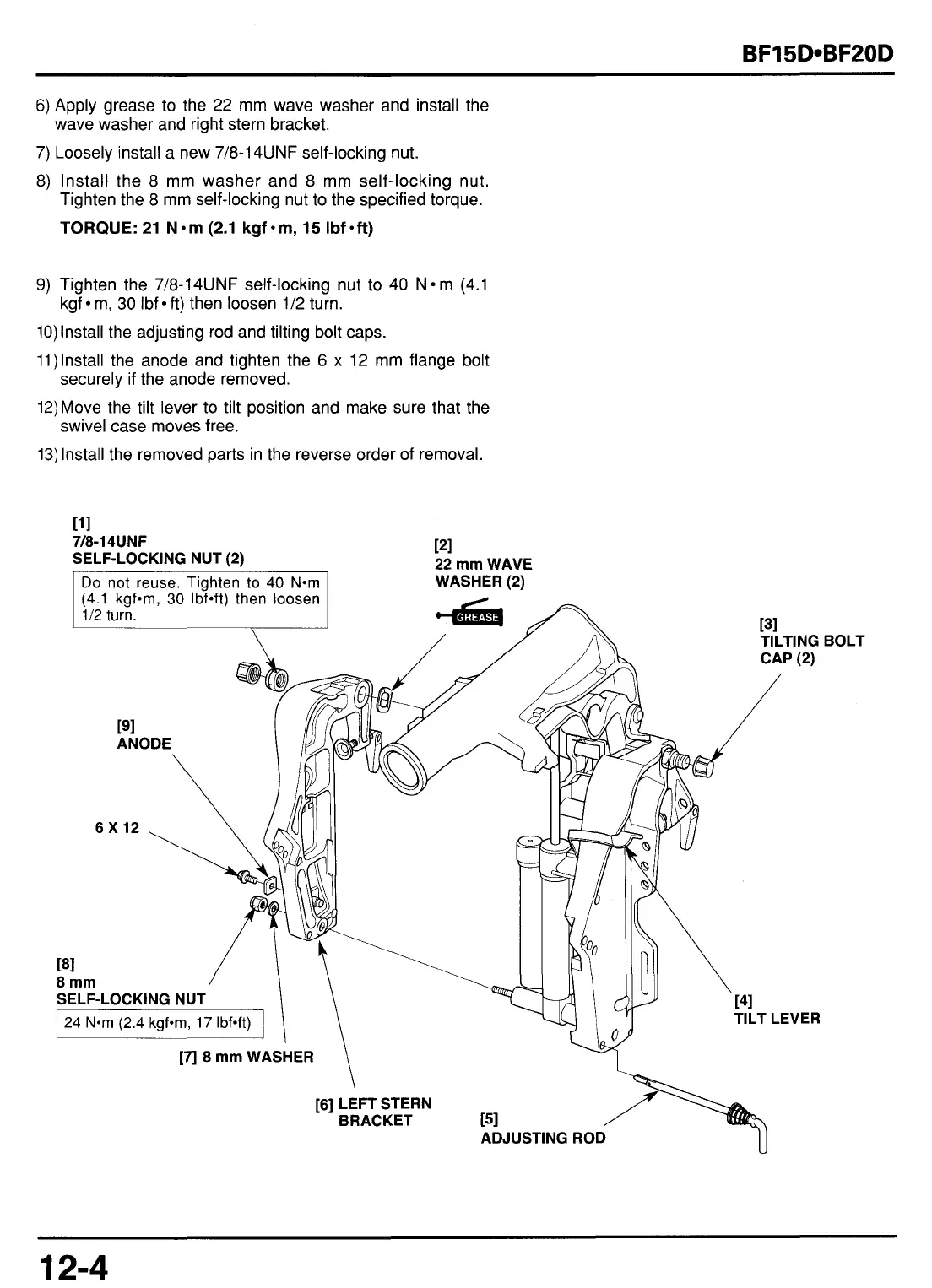

6) Apply grease to the 22 mm wave washer and install the
wave washer and right stern bracket.
Loosely install a new 7/8-14UNF self-locking nut.
Install the 8 mm washer and
8 mm self-locking nut.
Tighten the 8 mm self-locking nut to the specified torque.
TORQUE: 21 N em (2.1 kgf em, 15 Ibf eft)
Tighten the 7/8-14UNF self-locking nut to 40 N-m (4.1
kgf
m, 30 Ibf eft) then loosen 1/2 turn.
10) Install the adjusting rod and tilting bolt caps.
1l)lnstall the anode and tighten the
6 x 12 mm flange bolt
12)Move the tilt lever to tilt position and make sure that the
13) Install the removed parts in the reverse order of removal.
securely if the anode removed.
swivel case moves free.
11 1
121
7/8-14UNF
SELF-LOCKING NUT (2)
22
rnrn WAVE
WASHER
(2)
TILTING BOLT
p (2)
ANODE
8
rnrn
SELF-LOCKING NUT
TILT LEVER
24 N-m (2.4 kgfm, 17 Ibf-ft)
\
BRACKET [51
[6] LEFT STERN
-U
ADJUSTING ROD
12-4
