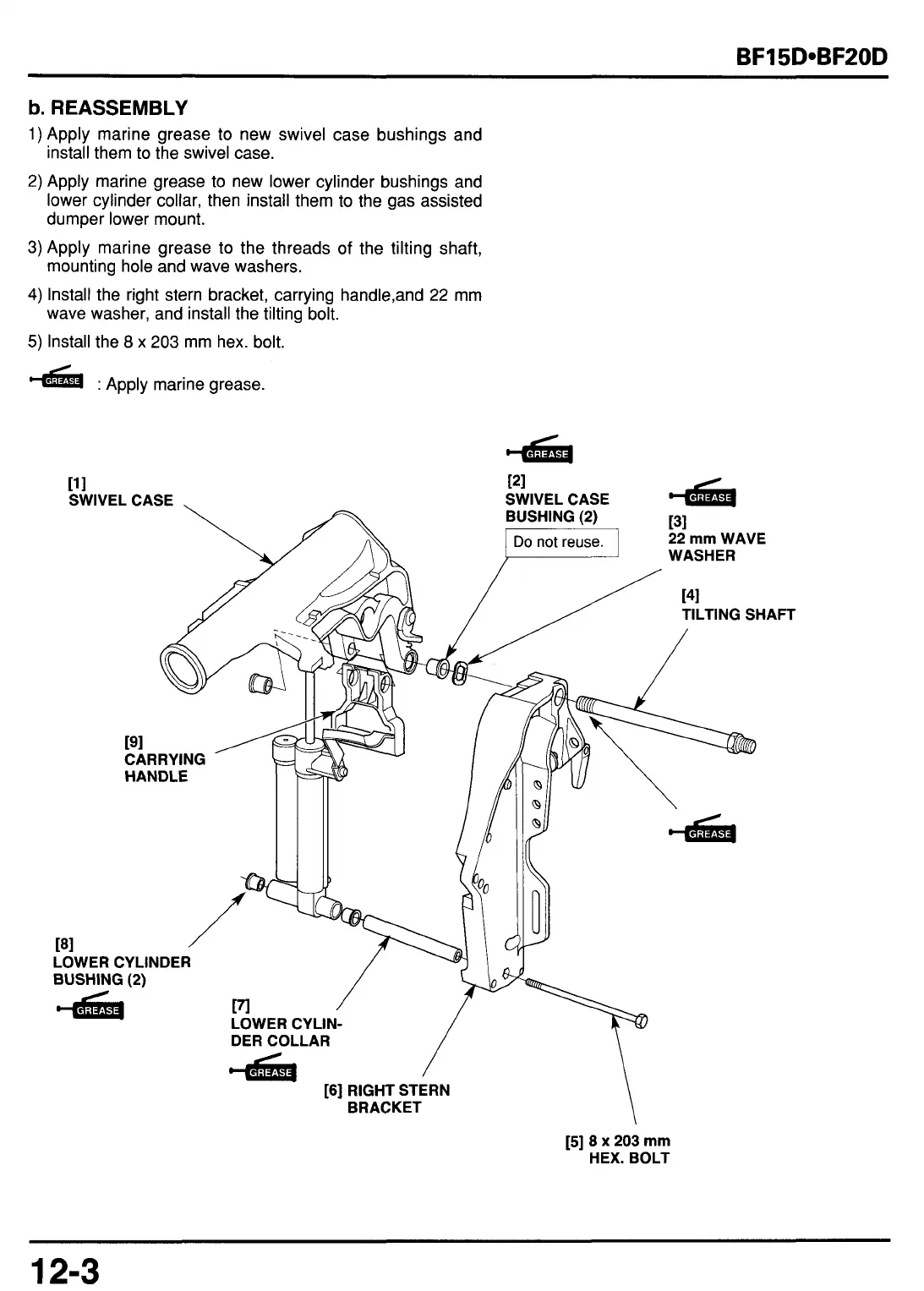

REASSEMBLY
1)Apply marine grease to new swivel case bushings and
install them to the swivel case.
2)
Apply marine grease to new lower cylinder bushings and
lower cylinder collar, then install them to the gas assisted
dumper lower mount.
3)Apply marine grease to the threads of the tilting shaft,
mounting hole and wave washers.
4)
Install the right stern bracket, carrying handle,and
22
mm
wave washer, and install the tilting bolt.
5)
Install the
8
x
203
mrn hex. bolt.
4
:
~pp~y marine grease.
k
121
SWIVEL CASE
BUSHING (2)
I
~onot
reuse.
I
22
mm
WAVE
11
1
SWIVEL CASE
131
/
CARRYING
HANDLE
LOWER
CYLINDER
/
Y
I
Bll
\
LOWER CYLIN-
BUSHING (2)
17
DER COLLAR
/
/
161
RIGHT
STERN
4
--
BRACKET
[5]
8
x
203
mm
HEX. BOLT
1213
