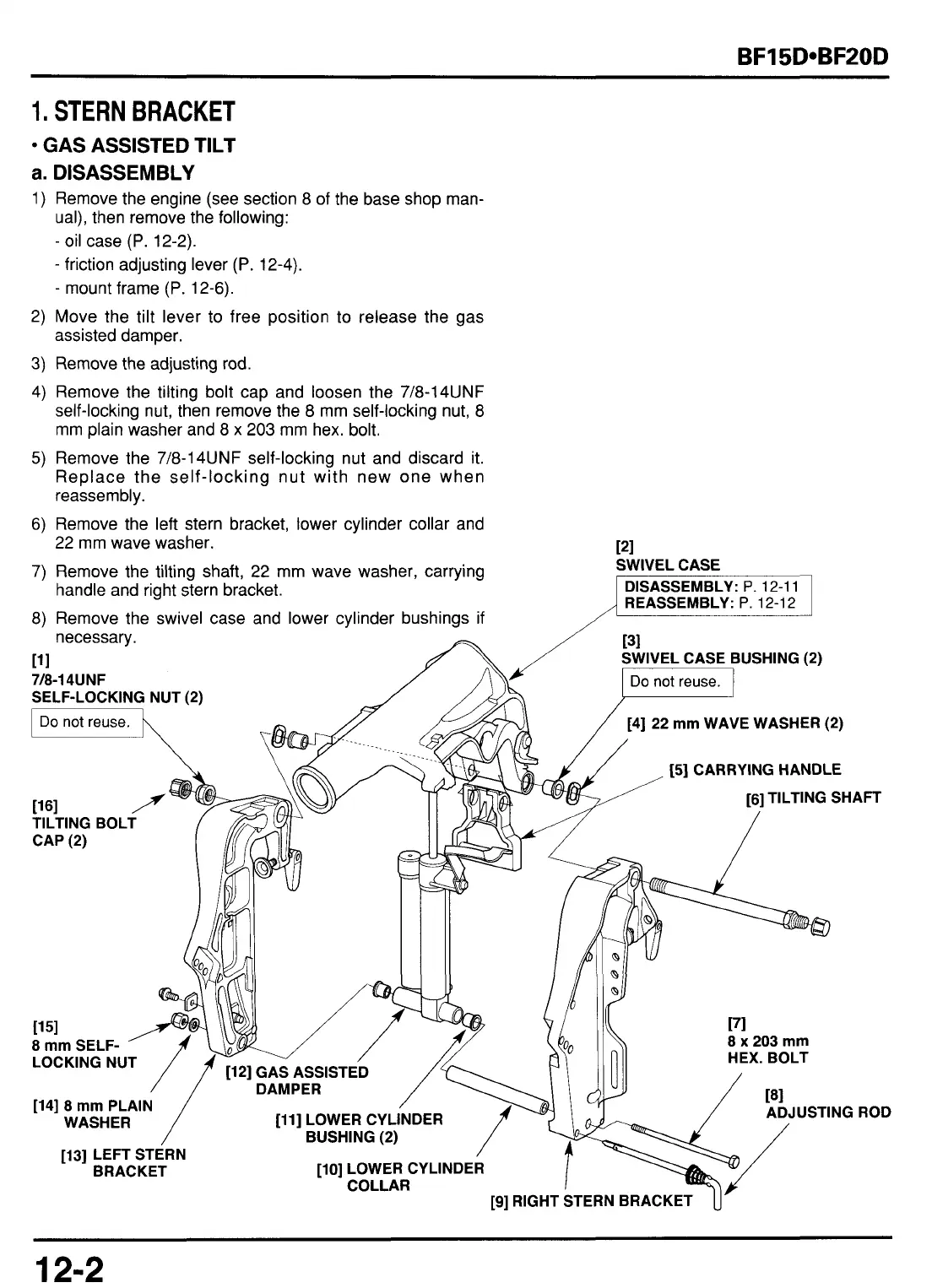

1.
STERN BRACKET
GAS ASSISTED TILT
DISASSEMBLY
Remove the engine (see section 8 of the base shop man-
ual), then remove the following:
-
oil case
(P.
12-2).
-
friction adjusting lever
(P.
12-4).
-
mount frame
(P.
12-6).
Move the tilt lever to free position to release the gas
assisted damper.
Remove the adjusting rod.
Remove the tilting bolt cap and loosen the 7/8-14UNF
self-locking nut, then remove the 8 mm self-locking nut, 8
mm plain washer and 8
x
203
mm hex. bolt.
Remove the 7/8-14UNF self-locking nut and discard it.
Replace the self-locking nut with new one when
reassembly.
Remove the left stern bracket, lower cylinder collar and
22
mm wave washer.
PI
Remove the tilting shaft,
22
mm
wave washer, carrying
handle and right stern bracket.
Remove the swivel case and lower cylinder bushings if
/
SWIVEL CASE
DISASSEMBLY:
P.
12-1 1
REASSEMBLY:
P.
12-1 2
necessary.
1212
