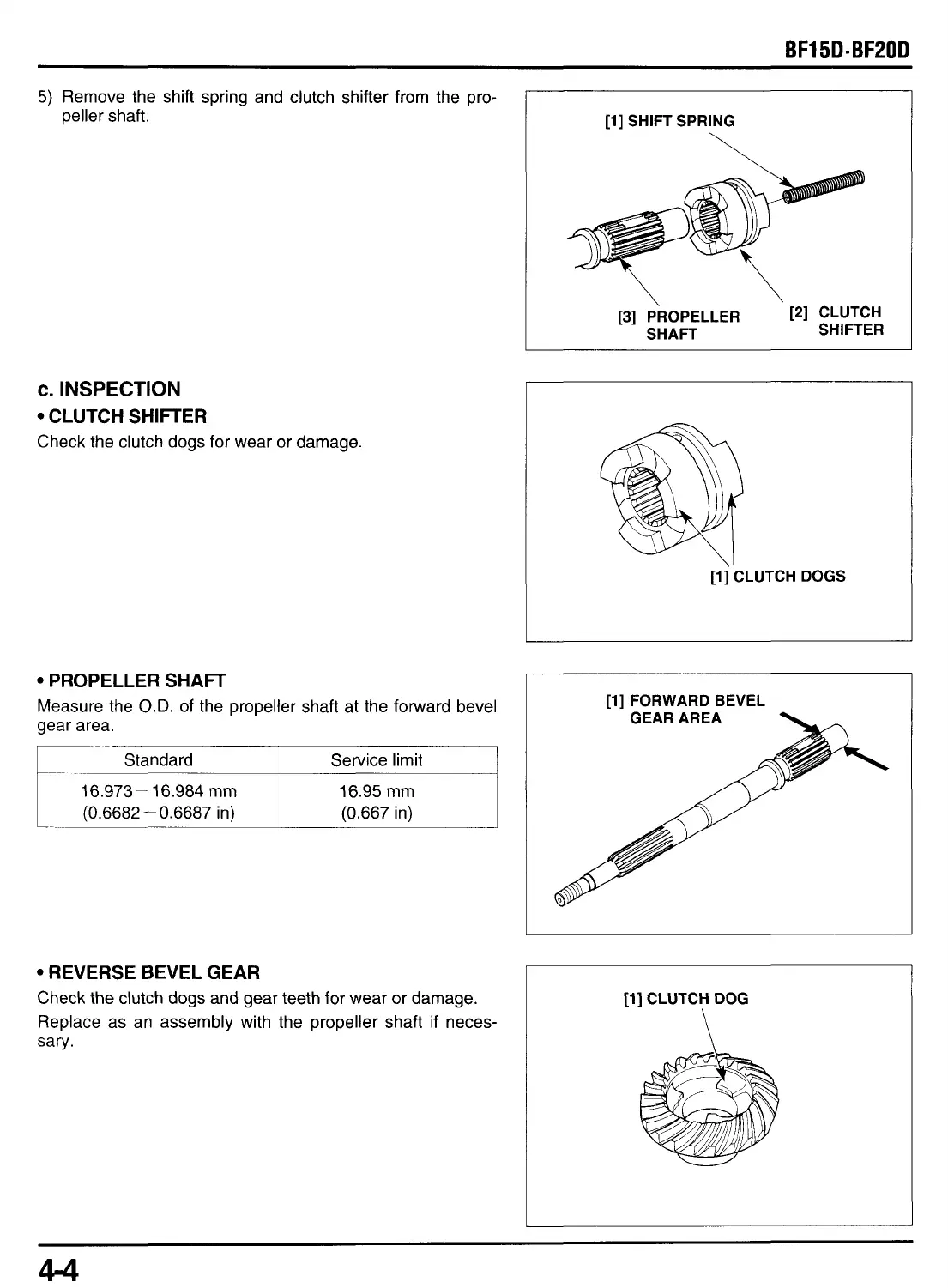

5) Remove the shift spring and clutch shifter from the pro-
peller shaft.
c. INSPECTION
CLUTCH SHIFTER
Check the clutch dogs for wear or damage.
PROPELLER SHAFT
Measure the O.D. of the propeller shaft at the forward bevel
gear area.
I Standard 1 Service limit I
16.973- 16.984 mm
(0.6682 - 0.6687 in)
16.95 mm
(0.667 in)
REVERSE BEVEL GEAR
Check the clutch dogs and gear teeth for wear or damage.
Replace as an assembly with the propeller shaft if neces-
sary.
[l] SHIFT SPRING
\
[3] PROPELLER [2] CLUTCH
SHAFT SHI FTER
I [l] FORWARD BEVEL
[l] CLUTCH DOG
\
