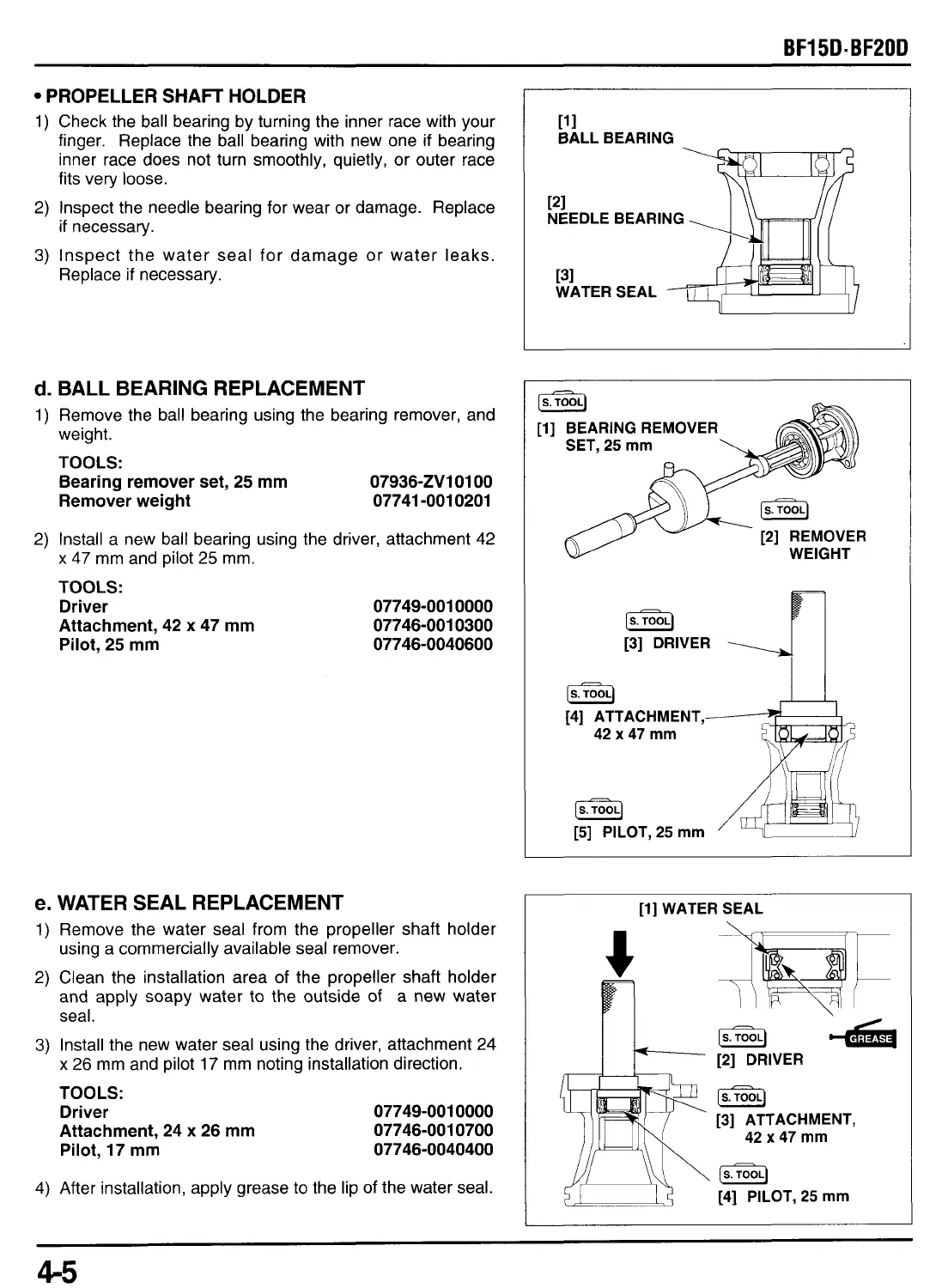

BF15D-BF20D
PROPELLER SHAFT HOLDER
1)
Check the ball bearing by turning the inner race with your
finger. Replace the ball bearing with new one
if
bearing
inner race does not turn smoothly, quietly, or outer race
fits very loose.
2)
Inspect the needle bearing for wear or damage. Replace
if necessary.
3)
Inspect the water seal for damage or water leaks.
Replace if necessary.
d.
BALL BEARING REPLACEMENT
1)
Remove the ball bearing using the bearing remover, and
weight.
TOOLS:
Bearing remover set,
25
mm
07936-ZVlOlOO
Remover weight
07741 -001 0201
2)
Install a new ball bearing using the driver, attachment
42
x
47
mm and pilot
25
mm.
TOOLS:
Driver
07749-001
0000
Attachment,
42
x
47
mm
07746-001
0300
Pilot,
25
mm
07746-0040600
e. WATER SEAL REPLACEMENT
1)
Remove the water seal from the propeller shaft holder
using a commercially available seal remover.
2)
Clean the installation area of the propeller shaft holder
and apply soapy water to the outside
of
a new water
seal.
3)
Install the new water seal using the driver, attachment
24
x
26
mm and pilot
17
mm noting installation direction.
TOOLS:
Driver
07749-001
0000
Attachment,
24
x
26
mm
07746-001 0700
Pilot,
17
mm
07746-0040400
4)
After installation, apply grease to the lip of the water seal.
1
111
BALL BEARING
121
NEEDLE BEARING
131
WATER SEAL
I
I1
[l]
BEARING REMOVER
SET,
25
mm
[*TOOL)
[4]
ATTACHMENT,
42
x
47 mm
(S.]
[5]
PILOT,
25
rnrn
I
[l]
WATER SEAL
IS.]
[3]
ATTACHMENT,
42
x
47 mm
i
IUW
H'-
[4]
PILOT,
25
rnm
4-5
