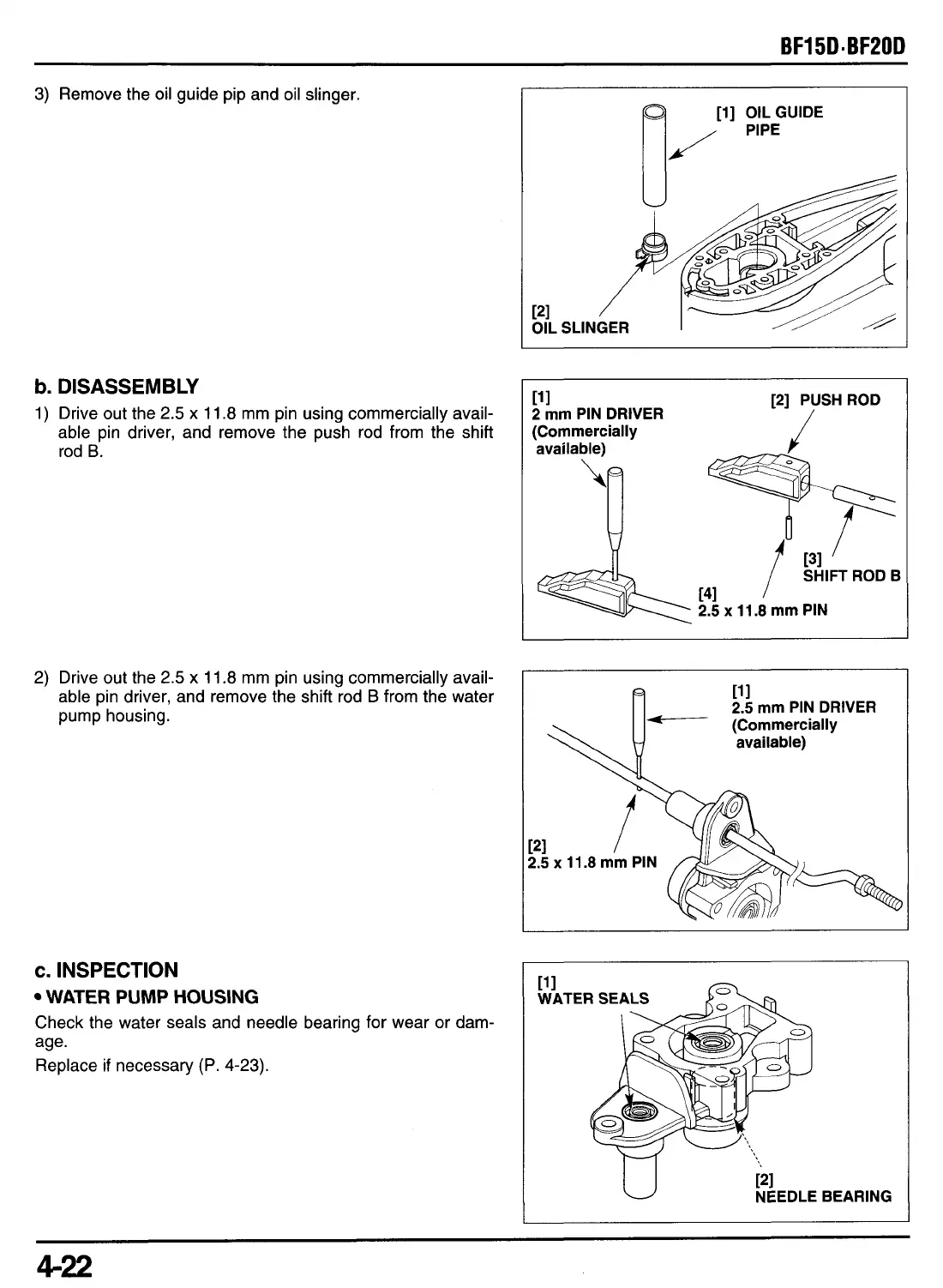

BF15DmBF20D
3)
Remove the oil guide pip and oil slinger.
b.
DISASSEMBLY
1) Drive out the
2.5
x
11.8 mm pin using commercially avail-
able pin driver, and remove the push rod from the shift
rod
B.
2)
Drive out the
2.5
x
11.8 mm pin using commercially avail-
able pin driver, and remove the shift rod
B
from the water
pump housing.
c.
INSPECTION
WATER
PUMP
HOUSING
Check the water seals and needle bearing for wear or dam-
age.
Replace
if
necessary
(P.
4-23).
[l]
OILGUIDE
nJ.-
[11
2
mm PIN DRIVER
(Commercially
[2]
PUSHROD
/
/
available)
SHIFT
ROD B
2.5
x
11.8
mm PIN
\
I I-
tJ
121
NEEDLE
BEARING
4-22
