BF15DmBF20D
d.
15
x
24
x
5
mm

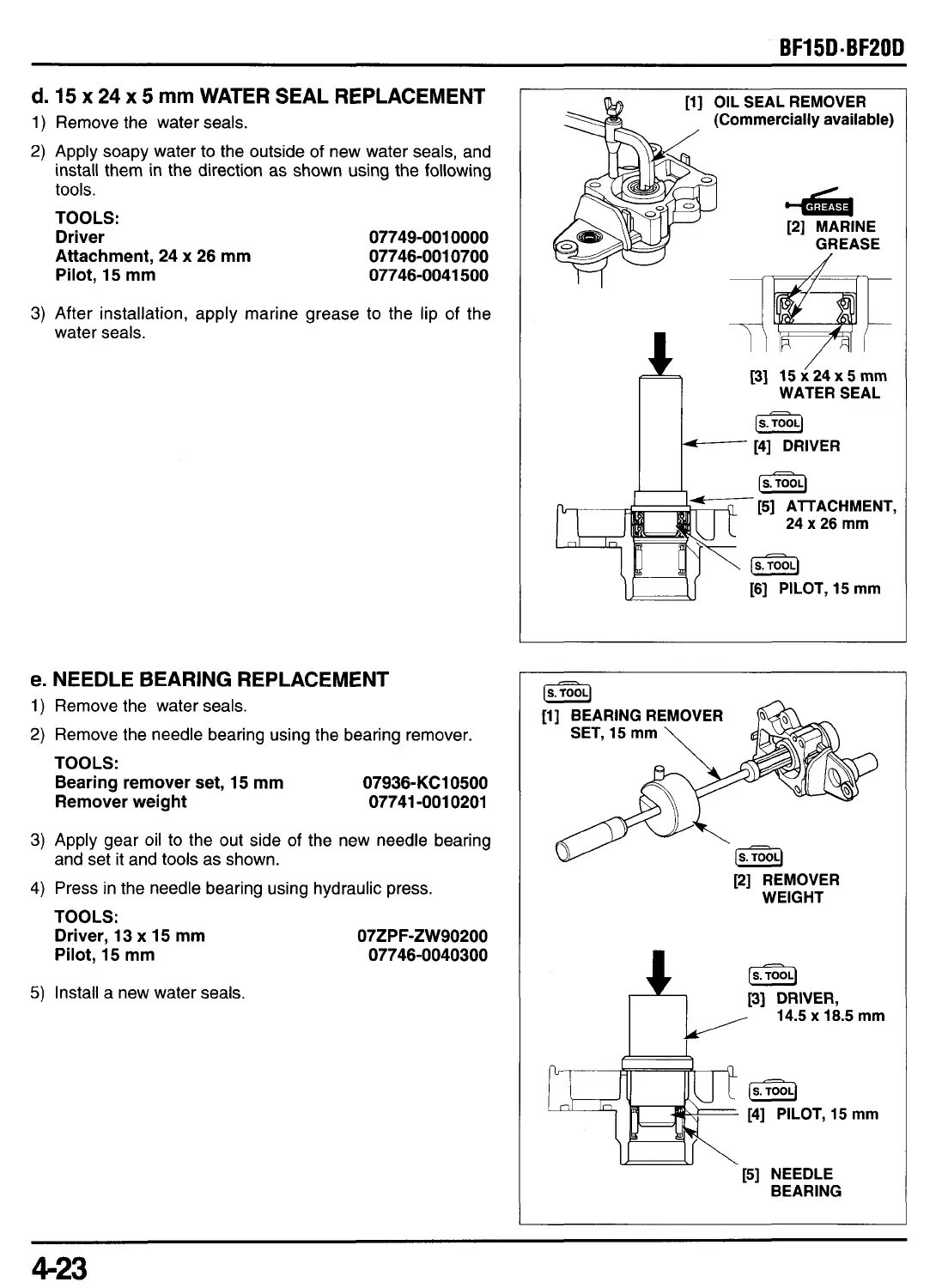

WATER SEAL REPLACEMENT
1)
Remove the water seals.
2)
Apply soapy water
to
the outside of new water seals, and
install them in the direction as shown using the following
tools.
TOOLS:
Driver
Attachment, 24
x
26 mm
Pilot, 15 mm
07749-001
0000
07746-001 0700
07746-0041
500
3)
After installation, apply marine grease to the lip
of
the
water seals.
e. NEEDLE BEARING REPLACEMENT
1)
Remove the water seals.
2)
Remove the needle bearing using the bearing remover.
TOOLS:
Bearing remover set, 15 mm 07936-KC10500
Remover weight 07741 -001 0201
3)
Apply gear oil
to
the out side
of
the new needle bearing
4)
Press in the needle bearing using hydraulic press.
and set it and
tools
as shown.
TOOLS:
Driver, 13
x
15 mm
07ZPF-ZW90200
Pilot, 15 mm 07746-0040300
5)
Install a new water seals.
[l] OIL SEAL REMOVER
(Commercially available)
GREASE
/
[3] 15x24x5mm
WATER SEAL
[TOOJ
[4] DRIVER
[*I
[5]
ATTACHMENT,
24
x
26 mm
u
[6] PILOT,
15
mm
[2] REMOVER
WEIGHT
[Gzi]
[3]
DRIVER,
14.5
x
18.5
mm
I
P--
(S.]
[4] PILOT,
15
mm
151
NEEDLE
_-
BEARING
To Next Page
