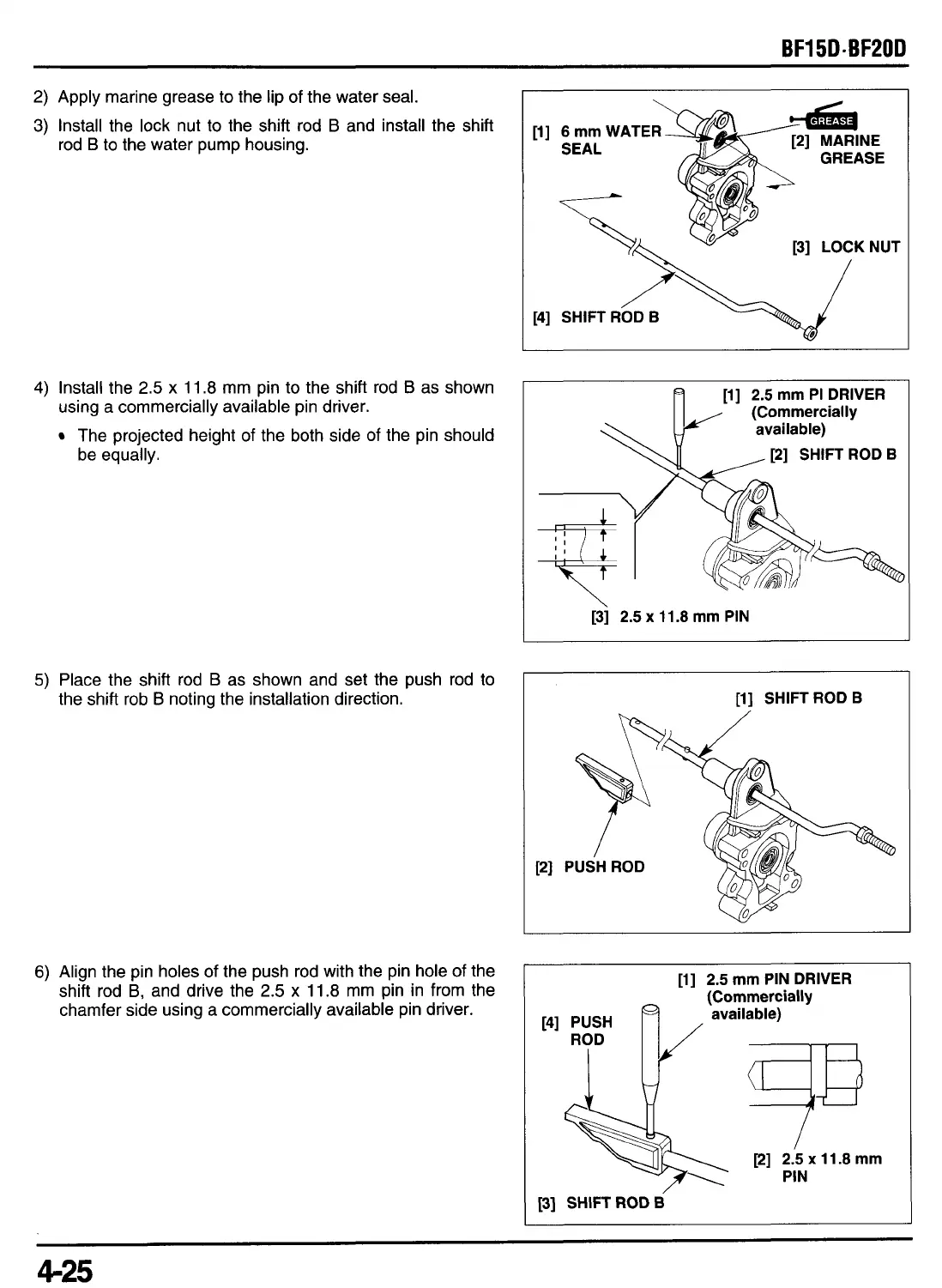

2)
Apply marine grease to the lip of the water seal.
3)
Install the lock nut to the shift rod
B
and install the shift
rod
B
to the water pump housing.
4)
Install the
2.5
x
11.8 mm pin to the shift rod
B
as
shown
using a commercially available pin driver.
The projected height
of
the both side of the pin should
be equally.
[3] LOCKNUT
/
[4] SHIFT ROD
IW
B
[l] 2.5 mm PI DRIVER
[2] SHIFTRODB
[3] 2.5 x 11.8 mm PIN
5)
Place the shift rod
B
as shown and set the push rod to
the shift rob
B
noting the installation direction.
[l] SHIFT
ROD
B
6)
Align the pin holes of the pu h rod with the pin hole of the
shift rod
B,
and drive the
2.5
x
11.8 mm pin in from the
chamfer side using a commercially available pin driver.
I
111 2.5 mm PIN DRIVER
r41
--
(Commercially
PUSH
available)
p] 2.5 x11.8 mm
PIN
1
[3] SHIFTRODB
