BF15DmBF20D

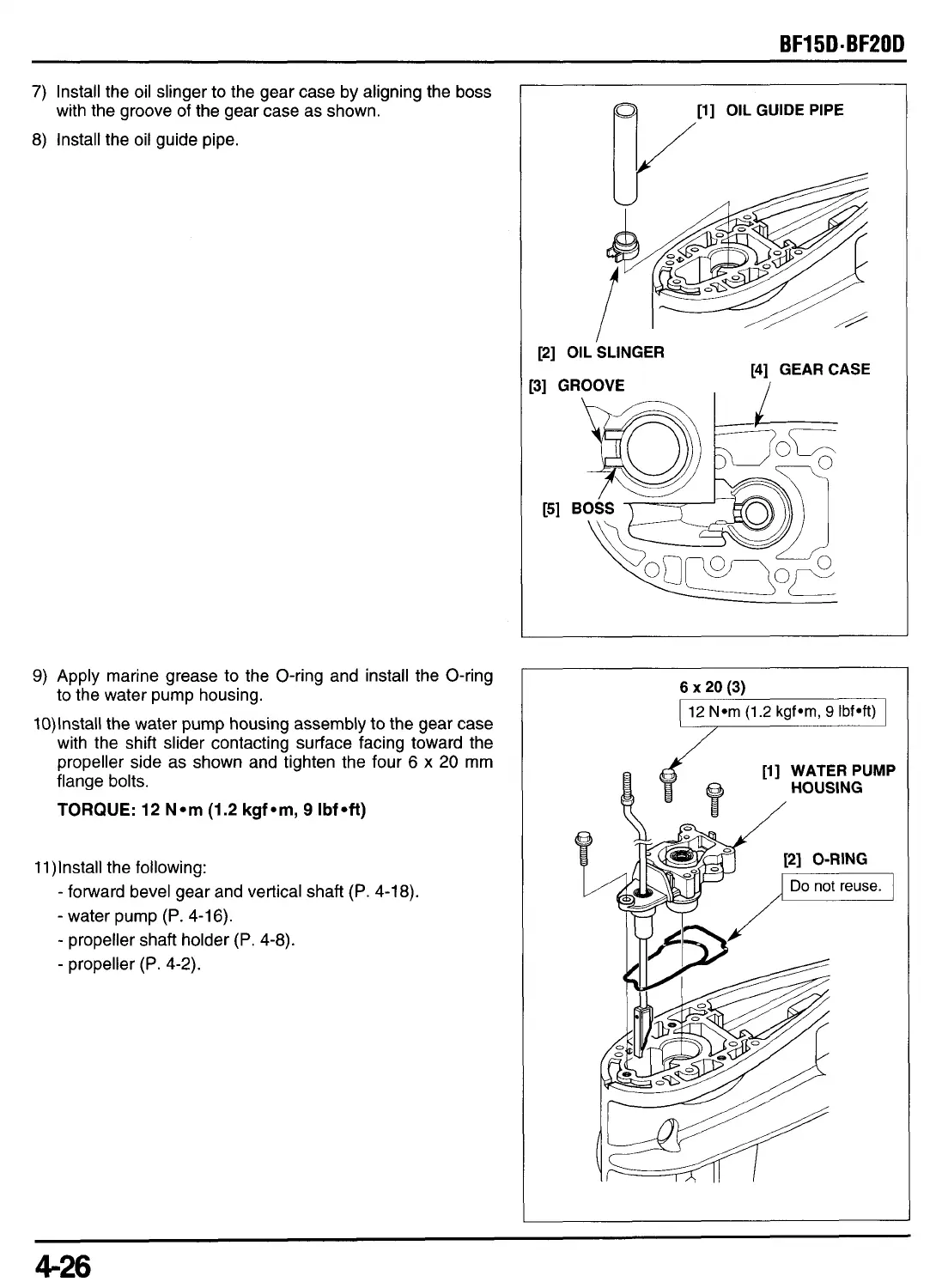

7) Install the oil slinger to the gear case by aligning the boss
8) Install the oil guide pipe.
with the groove
of
the gear case as shown.
9)
Apply marine grease to the O-ring and install the O-ring
to the water pump housing.
10)lnstall the water pump housing assembly to the gear case
with the shift slider contacting surface facing toward the
propeller side as shown and tighten the four
6
x
20
mm
flange bolts.
TORQUE:
12
N*m
(1.2
kgf*m,
9
Ibf*ft)
1l)lnstall the following:
-
forward bevel gear and vertical shaft
(P.
4-18).
-
water pump
(P.
4-16).
-
propeller shaft holder
(P.
4-8).
-
propeller
(P.
4-2).
a
[I]
OIL
GUIDE PIPE
I
[2]
OIL SLINGER
[4]
GEARCASE
[3]
GROOVE
I
6
x
20
(3)
[I]
WATER PUMP
HOUSING
/
4-26
