TRANSMISSION

HONDA

CB400T

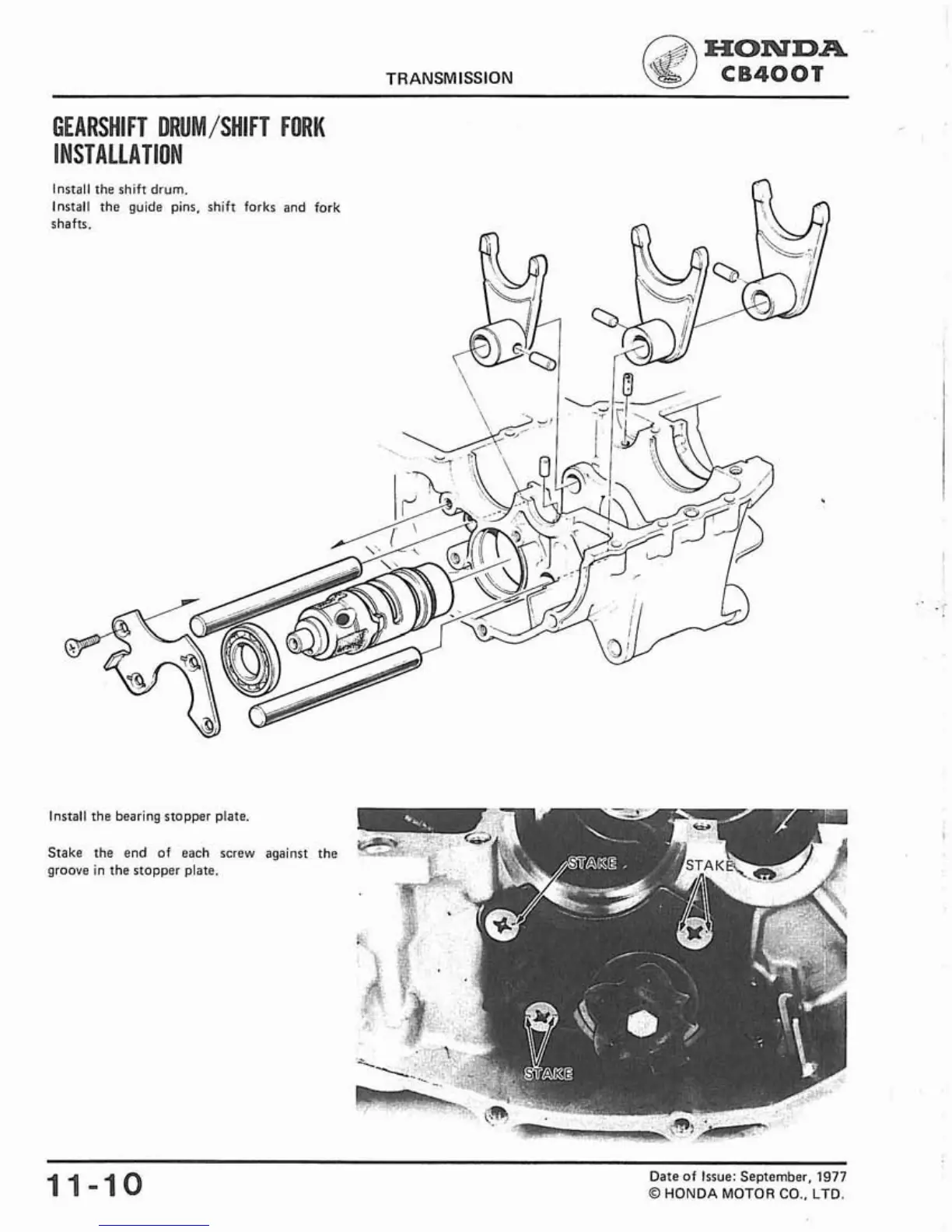

GEARSHIFT DRUM/SHIFT FORK

IMSTALLATIOM

Install the shift drum.

Install the guide pins, shift forks and fork

shafts.

Install the bearing stopper plate.

Stake the end of each screw

groove in the stopper plate.

against the

Date of Issue: September.

1977

HONDA MOTOR

CO..

LTD.
