Honda CB400A - Air Cutoff Valve Disassembly

HONDA
FUEL SYSTEM CB4OQK

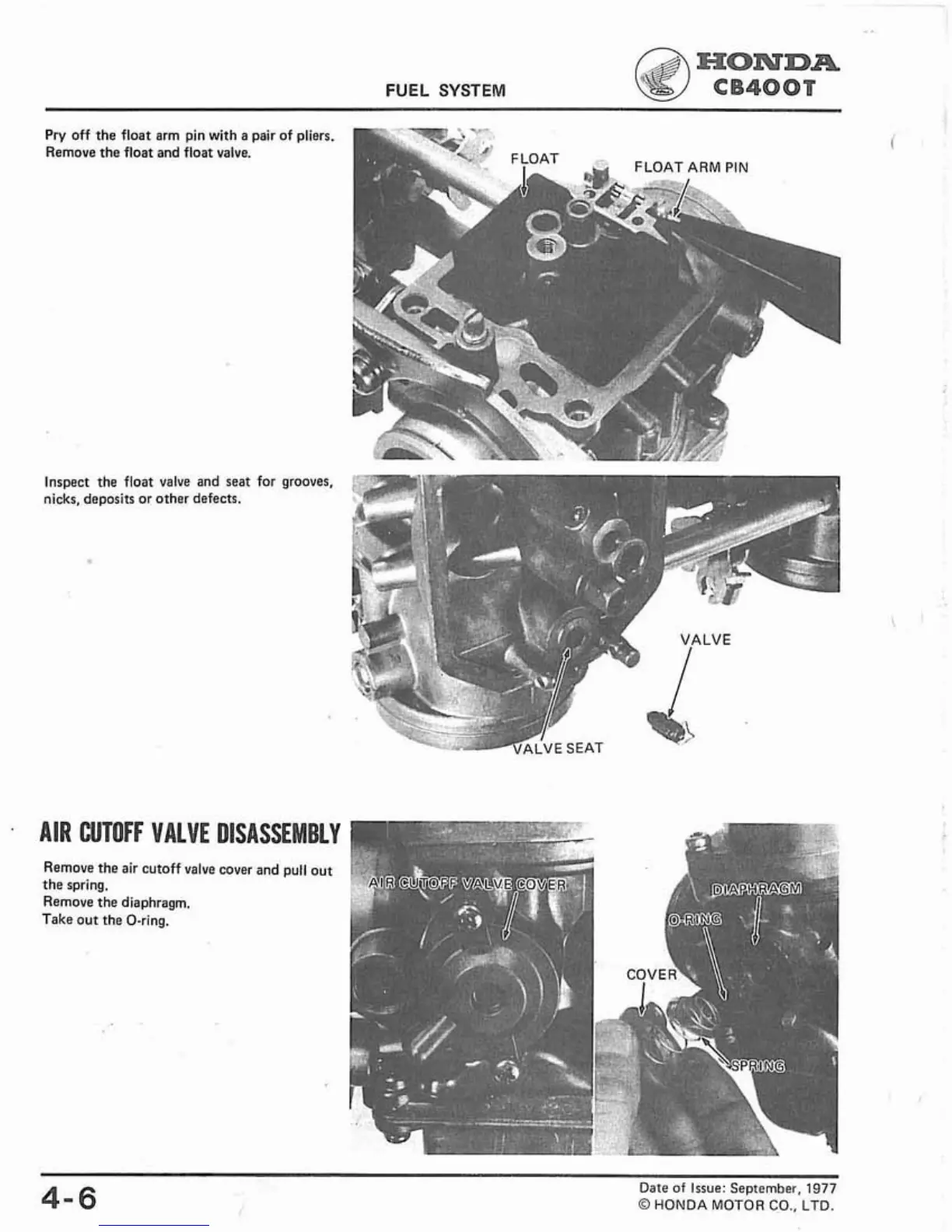

Pry off the float arm pin with a pair of pliers.
Remove the float and float valve.
Inspect the float valve and seat for grooves,
nicks, deposits or other defects.
AIR CUTOFF VALVE DISASSEMBLY
Remove the air cutoff valve cover and pull out
the spring.
Remove the diaphragm.
Take out the O-ring.
-~
___- VALVE SEAT
4-6
Uate of Issue: September. 1977
@ HONDA MOTOR CO., LTD.
