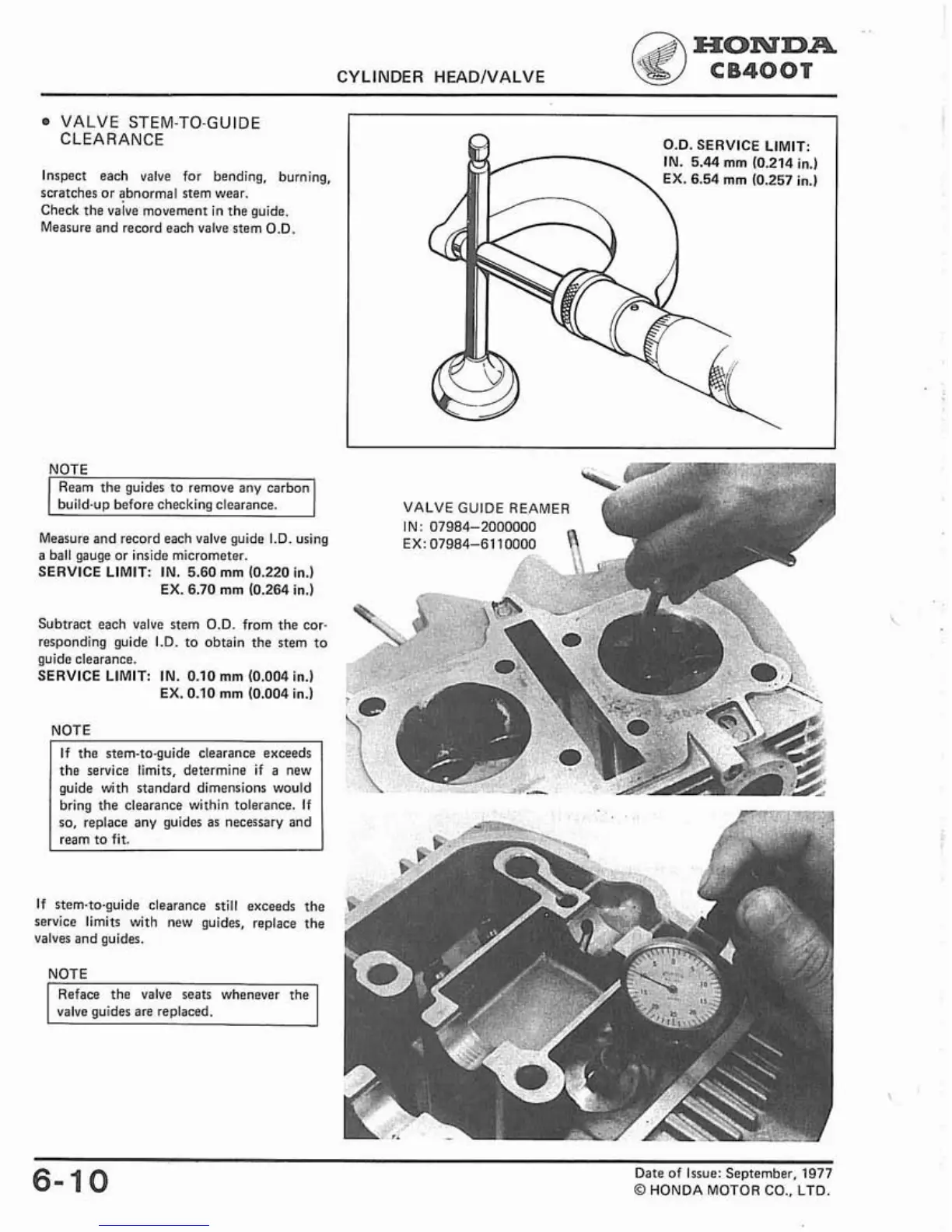

Honda CB400A - Valve Stem-To-Guide Clearance

NOTE
Ream the guides to remove any carbon
build-up before checking clearance.
HONDA
CYLINDER HEADIVALVE CB400T
Measure and record each valve guide 1.0. using
a ball gauge or inside micrometer.
SERVICE LIMIT: IN.
5.60 mm (0.220 in.)
EX.
6.70 mm (0.264 in.)
VALVE STEM-TO-GUIDE
CLEARANCE
Inspect each valve for bending, burning,
scratches or abnormal stem wear.
Check the valve movement in the guide.
Measure and record each valve stem O.D.
Subtract each valve stem
0.0. from the cor-
responding guide I.D. to obtain the stem to
guide clearance.
SERVICE LIMIT: IN.
0.10 mm (0.004 in.)
EX.
0.10 mm (0.004 in.)
O.D. SERVICE LIMIT:
IN.
5.44 mm (0.214 in.)
X.
6.54 mm (0.257 in.)
NOTE
the service limits, determine if a new
guide with standard dimensions would
bring the clearance within tolerance. If
so, replace any guides as necessary and
If stem-to-guide clearance still exceeds the
service limits with new guides, replace the
valves and guides.
NOTE
Reface the valve seats whenever the
valve guider are replaced.
VALVE GUIDE REAMER
IN: 07984-2000000
6-10
Date of Issue: September, 1977
