Honda CB400A - Front Damper Spring Free Length Inspection; Front Fork Disassembly

HONDA
CB4OOT FRONT WHEELIBRAKEISUSPENSION

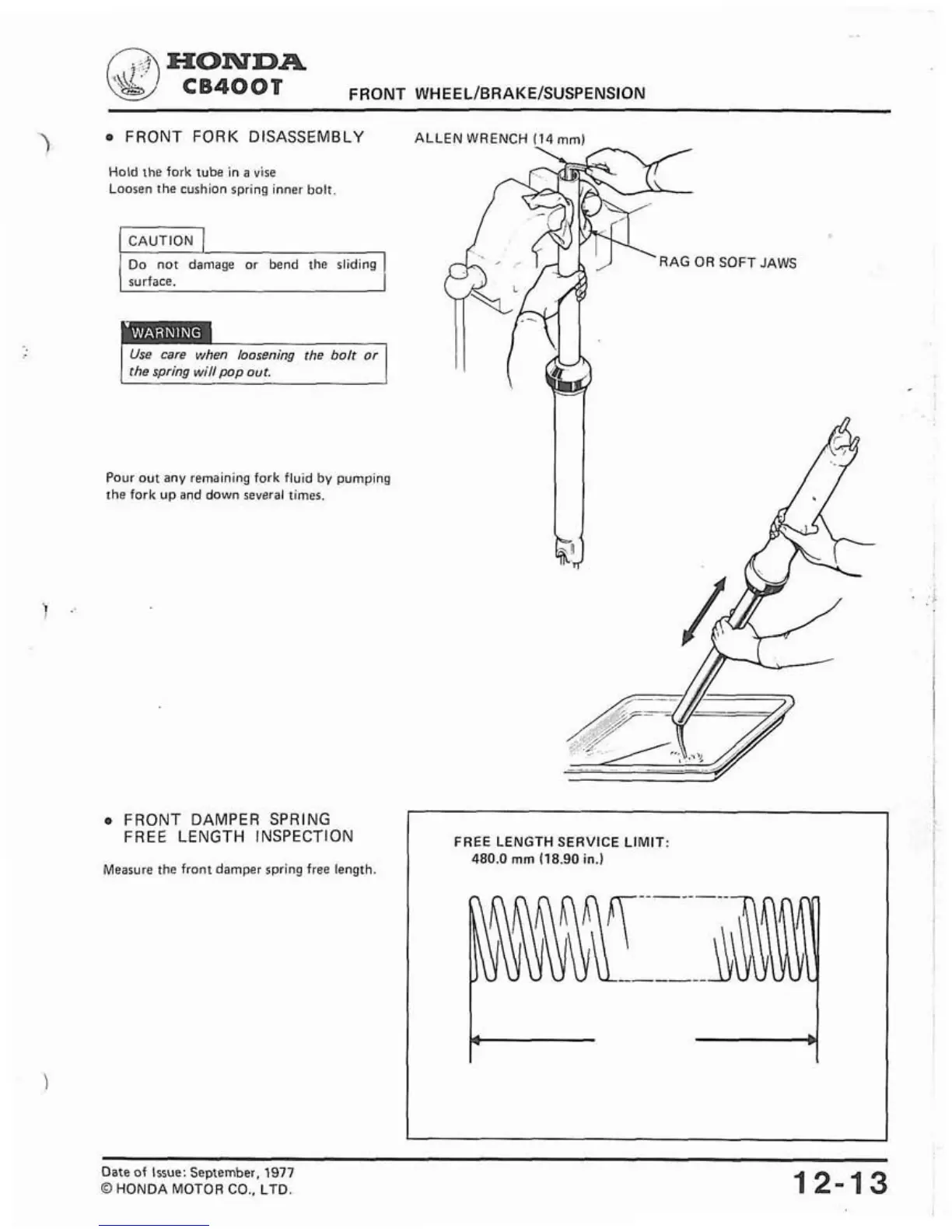

FRONT FORK DISASSEMBLY
Hold the fork tube in a vise
Loosen the cushion spring inner bolt.
I CAUTION /
Do not damage or bend the sliding
surface.
~p -
I Use care when loosening the bolt br 1
[ the spring willpop out.
Pour out any remaining fork fluid by pumping
the fork up and down several times.
FRONT DAMPER SPRING
FREE LENGTH INSPECTION
Measure the front damper spring free length.
SOFT
' JAWS
FREE LENGTH SERVICE LIMIT:
480.0 mm 118.90 in.)
Date of issue: September,
1977
o HoNDA MOTOR co., LTD.
12-13
