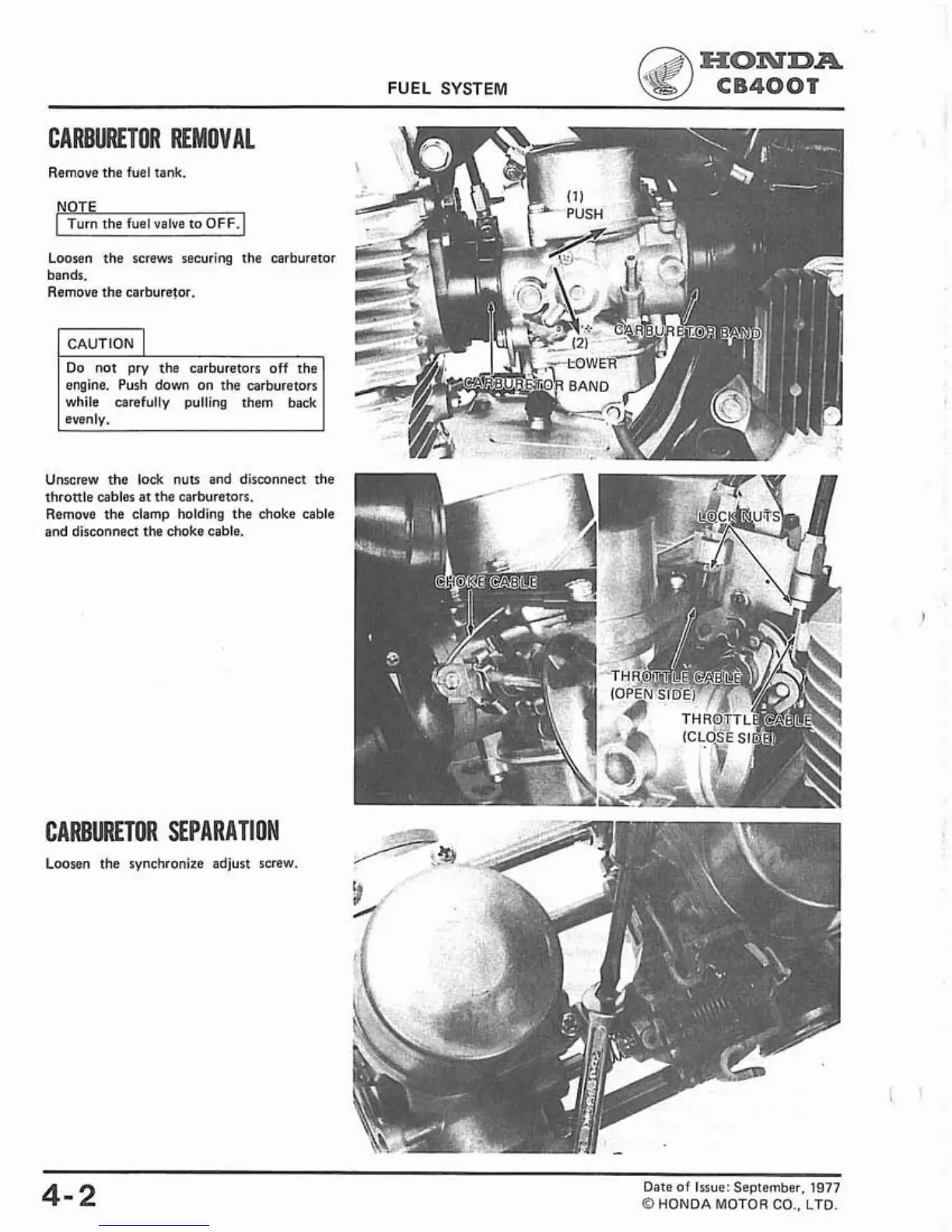

CARBURETOR REMOVAL
Remove the fuel tank.
NOTE
I
Turn the fuel valve to OFF.
I
Loosen the screws securing the
bands.
Remove the carburetor.
carburetor
engine. Push down on the carburetors
while carefully pulling them back
evenly.
Unscrew the lock nuts and disconnect the
throttle cables at the carburetors.
Remove the clamp holding the choke cable
and disconnect the choke cable.
CARBURETOR SEPARATION
Loosen the synchronize adjust screw,
4-2
Date
of
Issue: September,
1977
