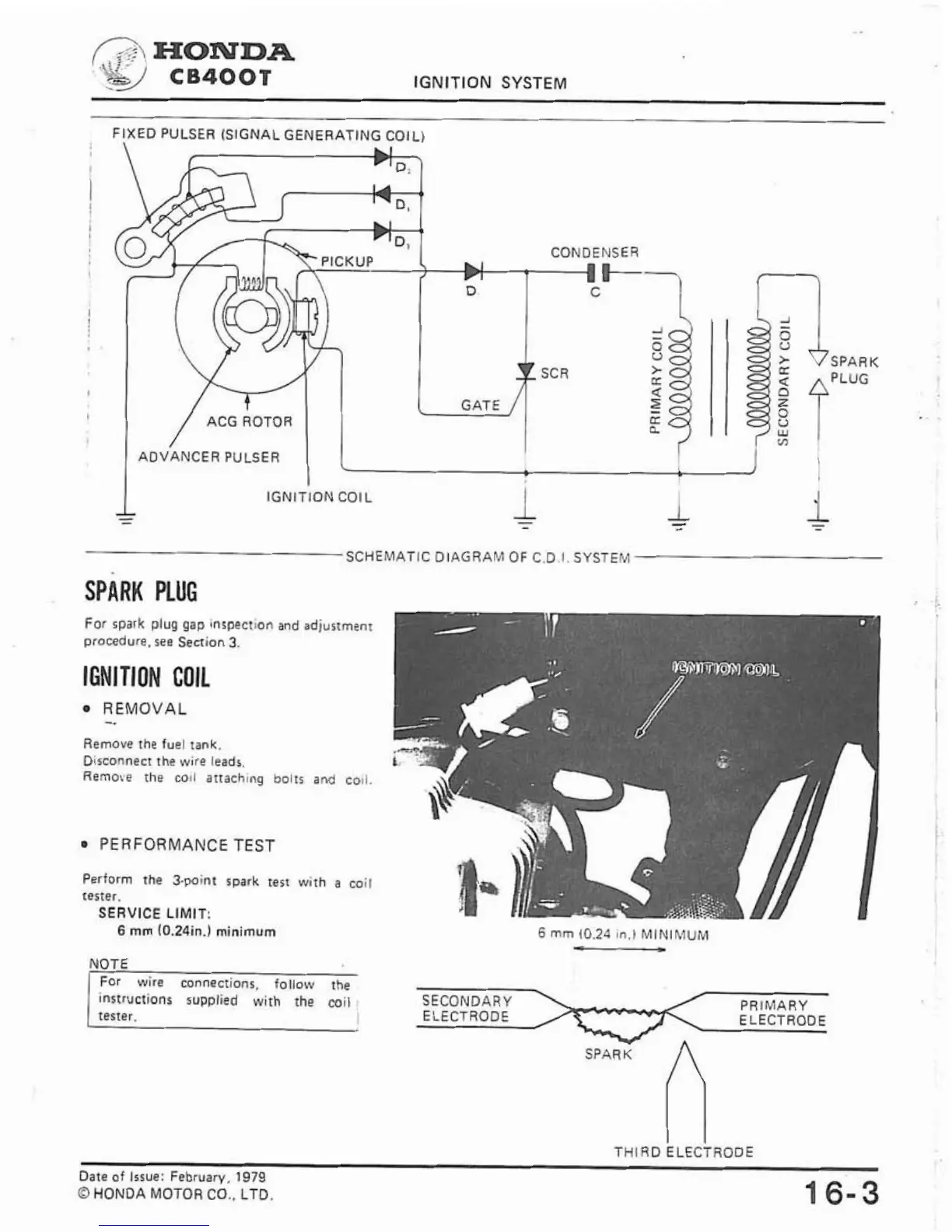

Honda CB400A - Ignition Coil Performance Test; Ignition Coil Removal; Schematic Diagram Od C.D.I. System; Spark Plug

~.
m, . z . -. HONDA
.%&, ~~400~
. -
,. IGNITION SYSTEM
IGNITION COIL
REMOVAL
-.
. .
For spark Plug gap inspection and adjustmenr
procedure. see Section 3.
I
I
Remove the fuel tank.
i
Disconnect the wire leads.
Remove the coii
attach~ng bolts and coil.
PERFORMANCE TEST
Perform the 3-point spark test with a coil
tester. . . -7
SERVICE LIMIT: %/li,&- ~.... .-
6 mm (0.24in.) minimum
6 rnm 10.24 ni MlNlMllM
- ..
-
instructions supplied with the coil SECONDARY
PRIMARY
ELECTRODE ELECTRODE
THIRD ELEC~RODE
Date of issue: February, 1979
