HONDA
REAR
WHEEL/BRAKE/SUSPENSION

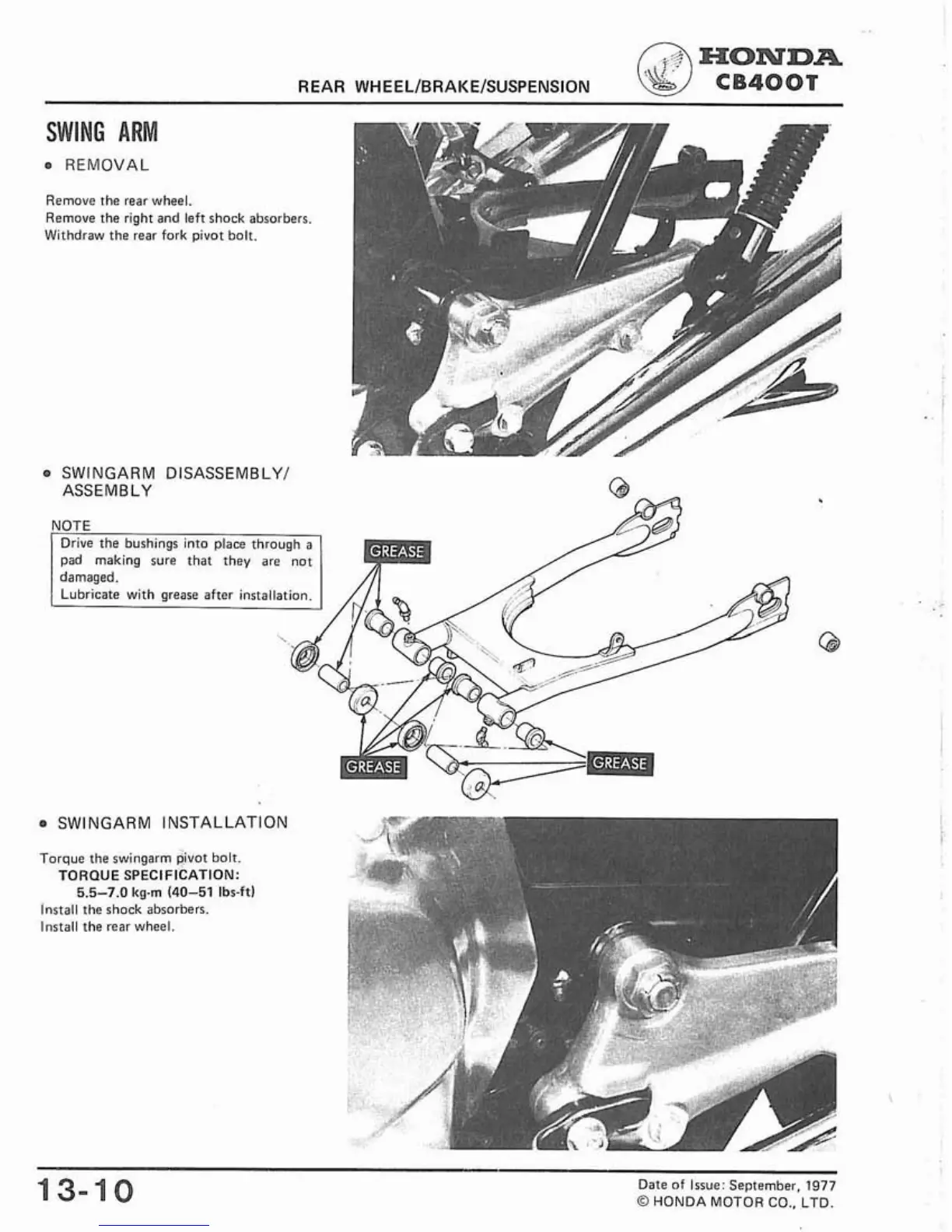

CB400T
SWING
ARM
REMOVAL
Remove the rear wheel.
Remove the right and left shock absorbers
Withdraw the rear fork pivot bolt.
SWINGARM DISASSEMBLY1
-
ASSEMBLY
@
-
I
Drive the bushings into place through
a
I
pad making sure that they are not
I
damaged.
1
A
Lubricate with grease after installation.
SWINGARM INSTALLATION
Torque the swingarm pivot bolt.
TORQUE SPECIFICATION:
5.5-7.0
kg-m
140-51
lbs-ftl
Install the shock absorbers.
Install the rear wheel.
Date of Issue: September,
1977
@
HONDA MOTOR
CO.,
LTD.
