Honeywell 900U02-0100 - Figure 12 - Power Status Module (PSM)

To Next Page

To Previous Page

26 ControlEdge HC900 Process & Safety Controller User and Installation Manual Revision 10

May 2019

Power Status Module (PSM)

The Power Status Module (PSM) (Figure 12) sits between redundant power supplies on the I/O rack (see

page 24). It is a status module for both power supplies and indicates which are in use, PS-1 (left) or PS-2

(right) or both (typical).

When the status indicator for either or both the power supplies is lit, it is reporting that the status of the

associated power supply is good and that the outputs are within specified limits. When the status is off,

either the power supply is off or the voltages are out of tolerance.

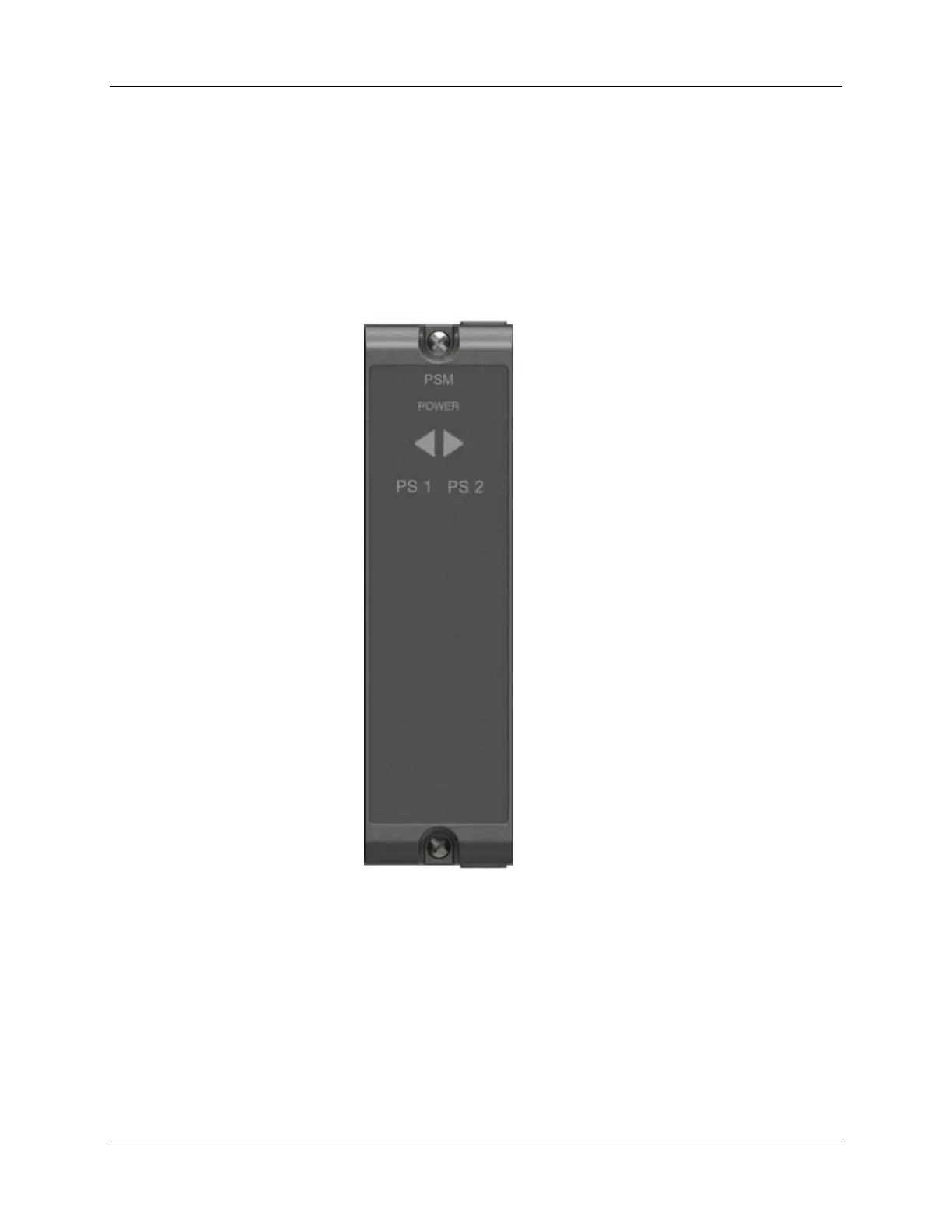

Figure 12 – Power Status Module (PSM)
