Revision 10 ControlEdge HC900 Process & Safety Controller User and Installation Manual 47

May 2019

Recommended network topology with safety peer communication

In the ControlEdge HC900 system where safety peer communication is required, it is recommended to

have separate peer communication network and add port filtering of peer protocol (UDP port 502) on host

communication switch. This ensures that the safety peer communication network is separate from the host

network communication.

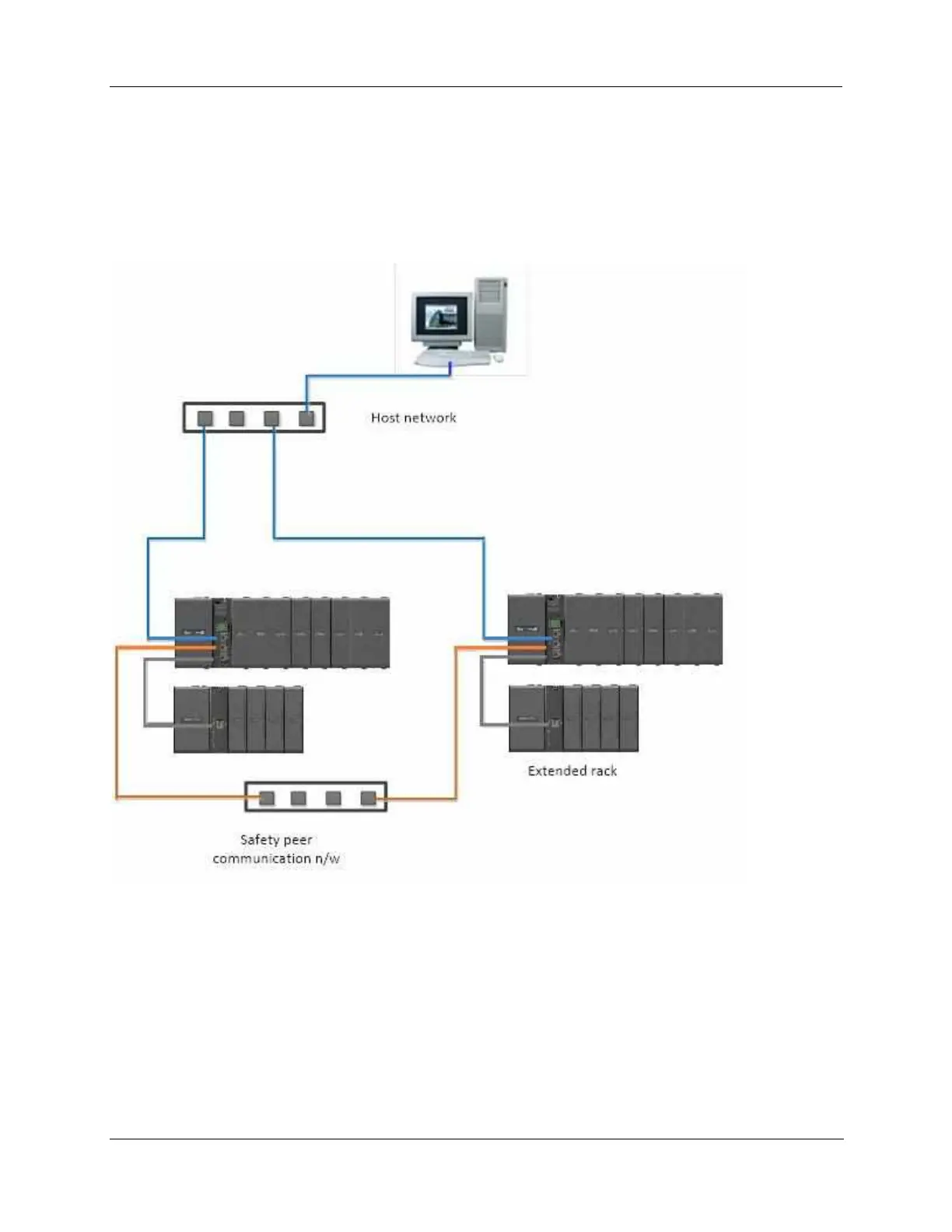

Figure 26: System with safety peer communication
