Honeywell AQ25A Series User Manual

AQ251 SERIES BOILER RESET CONTROL PANELS
39 69-1974—04
Installer Menu Structure
To display the Installer Menu, go to the Home Page, press and hold the OK button for 3 seconds until the message INSTALLER MODE –
ARE YOU SURE? displays. Select YES and press the OK button. Fig. 25 and Fig. 26 illustrate all possible Installer Menu selections.

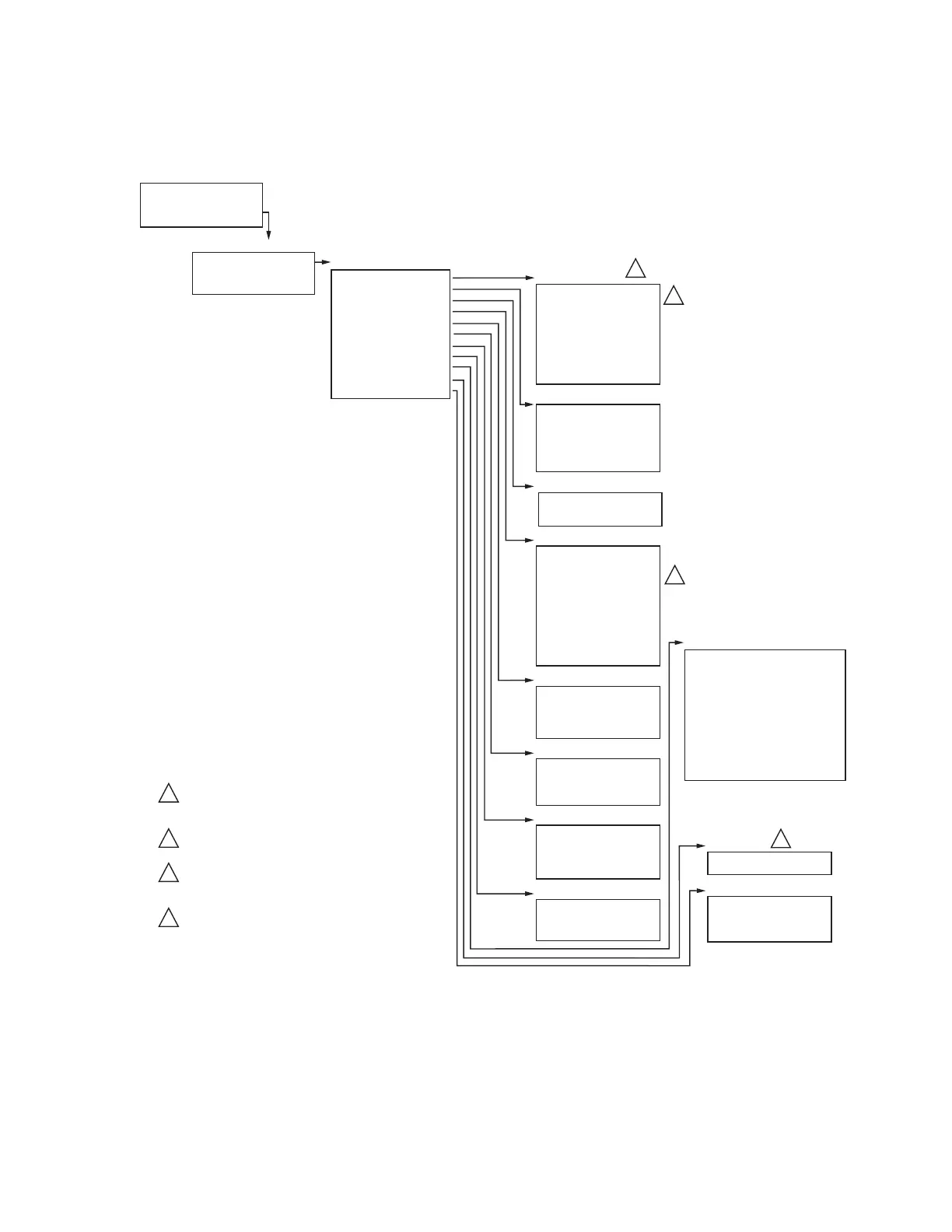

Fig. 25. Installer Menu Structure. – Equipment Setup.
BOILER SETTING 
BOILER OPERATION 
10V MOD. SELECT 
DOMESTIC HOT WATER
ZONING 
AUXILIARY I/O 
A/C SETTINGS 
A/C EQUIP CONFIG 
STATISTICS 
ENVIRACOM 
SAVE/RESTORE 
M27751
EQUIPMENT SETUP 
TEST AND PURGE 
EXIT INSTALLER 
INSTALLER MODE
ARE YOU SURE? NO
YES
INSTALLER MODE
INSTALLER MENU
EQUIPMENT SETUP
CYCLES/HOUR: 4
FIRE DELAY: 0:10
PURGE TIME: 0:30
EXERCISE: YES
FREEZE PROT: YES
BOILER OPERATION
HEAT DMND PRIO: NO
PRIO.OVER.: YES
ZONE VALVES
TIME TO OPEN: 15
ZONING
CYCLES/HOUR: 4
MIN.OFF TIME: 5M
C.W.S.D: 65
FAN MODE: AUTO
A/C SETTINGS
MODULES ID: 0
ENVIRACOM
SAVE SETUP
RESTORE FACTORY
RESTORE SETUP
SAVE/RESTORE
AUX.IN: SETBACK
AUX.OUT: BOILER
AUX.PUMP: BOILER
AUXILIARY I/O
HIGH LIMIT: 190 
LOW LIMIT: 150 
BOILER DIFF: AUTO 
W.W.S.D.: 70 
RESET: OUTDOOR 
OUTDOOR LOW: 10 
BOILER DSGN 180 
MIN.RETURN: 140 
BOILER SETTING
2
1
ZONE: A-1
A/C UNIT: 1
COOLING: ENABLE
A/C EQUIP CONFIG
1
THE t SYMBOLS INDICATE ADDITIONAL SELECTIONS ARE POSSIBLE.
THE FACTORY DEFAULT VALUES ARE SHOWN.
A VALUE OF “- -” INDICATES THE ITEM IS DISABLED OR NOT USED.
TEMPERATURE VALUES ARE SHOWN IN DEGREES FAHRENHEIT,
WHICH IS THE FACTORY DEFAULT TEMPERATURE UNIT.
SOME ITEMS DISPLAY BASED ON PRIOR SELECTIONS.
FOR EXAMPLE, IF DHW PRIO = YES, THEN THE PRIO. OVER
SELECTION DISPLAYS.
THE ENVIRACOM SUB-MENU IS NOT USED.
2
3
4
4
DHW: ENABLE
DHW PRIO.: NO
PRIO.OVER.: YES
DHW DEVICE: PUMP
DHW VLV.OP: 15
DHW PURGE: YES
DHW SENSOR: NO
DHW SETPOINT: 140
DHW DIFF: 20
DHW VACANCY: 45
DOMESTIC HOT WATER
3
LAST DATA RESET: 2000 JAN 01
RESET ALL DATA: 
ARE YOU SURE? NO
YES
BOILER FIRE ACTIV: 0H
BOILER PUMP ACTIV: 0H
DHW PUMP ACTIV: 0H
AUX PUMP ACTIV: 0H
AUX OUT ACTIV: 0H
ZONE A-1
ACTIV: 0H
STATISTICS
10V MOD: 0-10V
USAGE: NONE
10V MOD. SELECT
